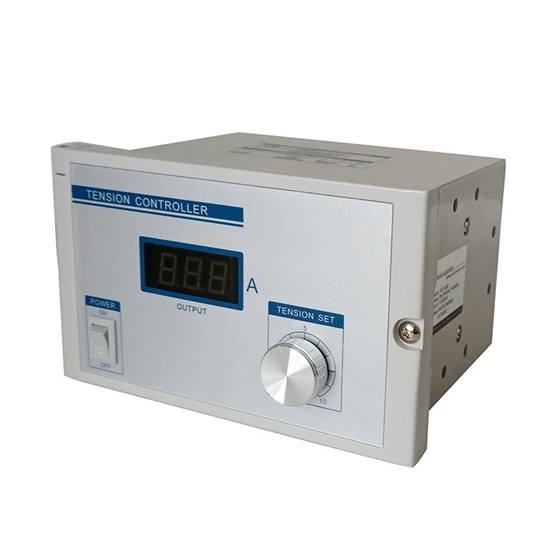

Digital Manual Tension Controller For Magnetic Particle Clutch/Brake

Picture of Digital Manual Tension Controller For Magnetic Particle Clutch/Brake

Picture of Digital Manual Tension Controller For Magnetic Particle Clutch/Brake

Picture of Digital Manual Tension Controller For Magnetic Particle Clutch/Brake

Digital Manual Tension Controller For Magnetic Particle Clutch/Brake

5 out of 5 based on 8 reviews | Write a review

$234.98

Low price digital display tension controller with highly adaptable switching power supply, beautiful, intuitive display, external signal control 0~10VDC, input power AC85V~264V, frequency 50/60Hz, is ideal for magnetic powder clutch/brake.

SKU: ATO-TC-002

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Buy online tension controller for magnetic powder clutch/brake, output voltage 24V DC, input power supply AC85V~264V, with pulse width modulation switching type adjustment system, stable performance, support floor, wall, inlay installation, ideal for paper, printing, textile industry.

Specification:

Model: ATO-STC-002
Input Power Supply: AC85V-264V 50/60Hz
Output Voltage: 0-4.00AMAX DC24V
Operating Temperature: 0-40°C
Working Humidity: 35~85%RH (no condensation)
Working Environment: non-corrosive, non-flammable gas, non-conductive dust, less dust
Vibration Resistance: 10~50Hz 0.55mm (maximum 4.9m/s)
Grounding: Class D grounding (no common grounding with strong electric wires)
Weight: About 1kg

Details

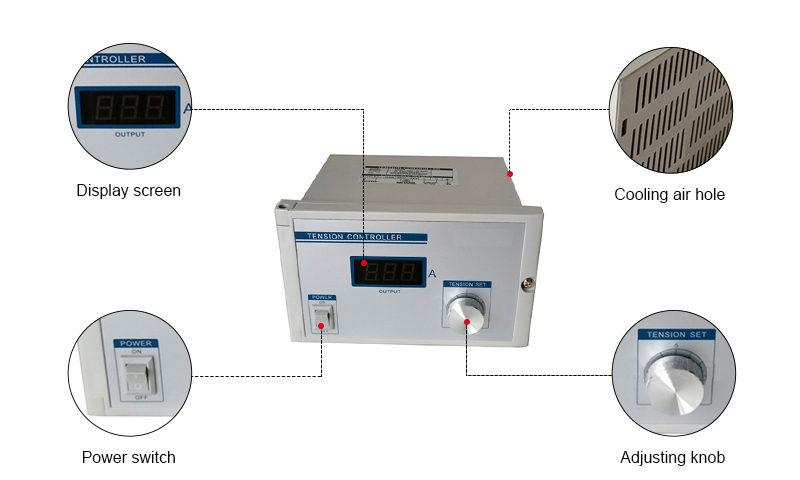

Digital Manual Tension Controller for Magnetic Particle Clutch Details

Feature

ATO-TC-002 manual tension controller adopts a highly adaptable switching power supply, which is beautiful and elegant, and the display is intuitive and clear.
PWM switching regulation system, stable performance, and high cost performance
Overload and short circuit protection, and external signal control 0~l0VDC
Input power: AC85V~264V 50/60Hz
Outputs: 0~4.00AMAX DC24V
Manual tension controller Applicable models: Magnetic powder clutch/brake
Suitable for a variety of installation methods: floor-standing, wall-mounted, mosaic

Installation Dimension (Unit=mm)

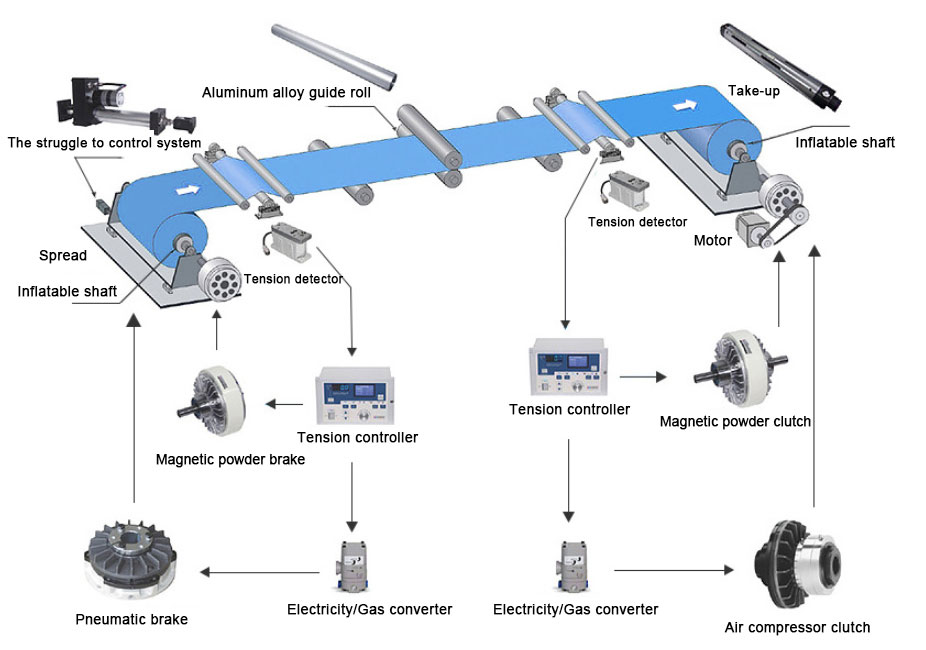

Application

Tips: How does manual tension control work?

A manual tension controller is used to manually adjust the excitation current of the clutch and brake periodically as the reel diameter changes during the "winding and unwinding" process to achieve tension control. The manual tension controller can be programmed to control the clutch/brake excitation current in programmable D/A and other machines, and input 0~10v to the manual tension controller for automatic control.

Existing reviews of Digital Manual Tension Controller For Magnetic Particle Clutch/Brake

Tension Controller

hi, does the price I'm seeing include the controller et al... so that when I get one, all I'll need to do is put it in a mechanism and start testing?

From: Benjamin | Date: 26/11/2023

Was this review helpful? Yes No (0/0)

ATO Responded

No, it does Not include controller. You have to order the controller separately

Would this brake have a chance of locking up at lower speeds?

Would this brake have a chance of locking up at lower speeds?

From: Betty | Date: 15/06/2023

Was this review helpful? Yes No (0/0)

ATO Responded

Unfortunately, this brake can not lock up at lower speeds.
The output torque of the brake is unstable at low speed.

Can manual tension controller fulfill my requirements?

I’m assuming I need to get a torque transducer and a way to implement a control system in order to precisely control how much torque the brake exerts.
Assuming I can attach some control equipment (torque transducer and a micro controller, likely), would the brake Magnetic Particle Brake (Single Shaft, 3Nm-400Nm) fulfill my requirements?

From: iris | Date: 14/06/2023

Was this review helpful? Yes No (0/0)

ATO Responded

Unfortunately, it is very difficult to realize the adjustment of output speed and output torque only by our combination of magnetic powder brake and controller.
As we mentioned before, our magnetic powder brake can only complete simple braking actions, and the tension controller can only slightly change the input current to slightly adjust the output torque, but it is not very precise.

What about magnetic particle brake?

Thank you for responding in a timely manner. It sounds like the electromagnetic brakes will not work for my application.
What about the Magnetic Particle Brake (Single Shaft, 3Nm-400Nm). Would that fulfill all the requirements I’m looking for?

From: jennie | Date: 13/06/2023

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, we think the effect of changing to a magnetic particle brake is better than an electromagnetic brake. However, the torque level output by the magnetic particle brake can only be fine-tuned, not precisely adjusted.

I am interested in controller that is capable of 50Nm

Do you recommend a current regulator to control the amperage sent to the brake?
I am interested in the model that is capable of 50Nm and the next size up.

From: augus | Date: 13/06/2023

Was this review helpful? Yes No (0/0)

ATO Responded

Okay, we can recommend a current regulator to control the amperage sent to the brake, model SKU: ATO-TC-002. This product can meet your needs.
You can use this controller to adjust the input current and slightly adjust the torque of the brake.

Low price and fast shipping

I have been using the product for two months now and am very satisfied. The controller provides precise, reliable control of the tension, which helps to ensure consistent and accurate operation of the clutch or brake. Would recommend!

From: Borg | Date: 14/03/2023

Was this review helpful? Yes No (0/0)

Beautiul appearance

I recently bought a digital tension controller, the price is relatively affordable, beautiful appearance, used it for a period of time and found that the machine works well, the digital screen is very clear, is a pleasant shopping experience.

From: Miles | Date: 03/03/2023

Was this review helpful? Yes No (0/0)

Easy to use tension controller

This digital tension controller was easy to install in knitting machine and works great! This counter works perfectly and solved my problem completely! Tension controller would be nice to have instructions to explain how you need to set it up for my needs and how it works.

From: Elfie | Date: 08/12/2022

Was this review helpful? Yes No (0/0)
