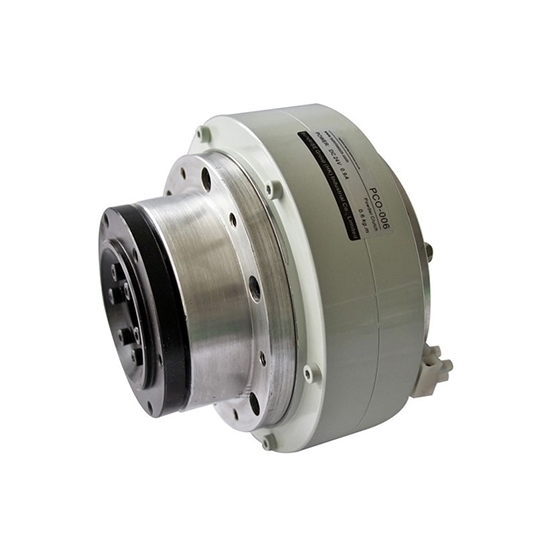

    Magnetic Particle Clutch, Hollow Shaft, 6Nm-200Nm

    5 out of 5 based on 2 reviews | Write a review
    Hollow shaft magnetic particle clutch with maintain, braking, buffer start, tension control and torque limit, the rated torque can be chosen as 6Nm,12Nm, 15Nm, 50Nm, 100Nm and 200Nm. Maximum speed of 1500rpm, 24VDC, long service life and manufacturers direct sales.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Mangnatic powder clutch with quick response, simple structure, no shock vibration and energy saving, rated torque can select 15Nm, 50Nm, 100Nm and 200Nm,  it is widely used in paper making, printing and rubber industry.

    Hollow Shaft Magnetic Particle Clutch Features
    1. The excitation current is linear with the torque. The transmitted torque is substantially linear with the excitation current. As long as the magnitude of the stimulation current is changed, the magnitude of the torque can be controlled over a wide range. In general, the stimulus current is substantially proportional to the transmitted torque in the range of 5%-100% of the rated torque.
    2. Stable slip torque. When the stimulation current remains unchanged, the transmitted torque is not affected by the difference in rotational speed between the active and the driven, that is, there is no difference between the static friction torque and the dynamic friction torque, so that the torque can be stably achieved. This feature is applied to the tension control, and the user can accurately control the torque by adjusting the stimulation current, thereby effectively controlling the tension of the roll.
    3. Prevent heat generation due to slip. Generally, the friction part is inevitably heated or even burned when continuously sliding. However, the ATO magnetic particle clutch has a complete heat sink, which will not be too hot for a long time and has a long service life.

    Hollow Shaft Magnetic Particle Clutch Specification:

    Model ATO-PCO-006 ATO-PCO-015 ATO-PCO-025 ATO-PCO-050 ATO-PCO-100 ATO-PCO-200
    Rated Torque 6Nm 15Nm 25Nm 50Nm 100Nm 200Nm
    Rated Current 0.9A 1.0A 2.0A 2.3A 2.5A 2.5A
    Rated Voltage DC24V
    Power 17.8W 21.6W 26.4W 33.6W 48W 60W
    No. of Hour Set 0.10S 0.10S 0.12S 0.13S 0.25S 0.37S
    Moment of Interial Input Side 2.70*10-3 Kgcm2 6.3*10-3 Kgcm2 1.2*10-2 Kgcm2 2.6*10-2 Kgcm2 7*10-2 Kgcm2 2.1*10-1 Kgcm2
    Ouput Side 5.0*10-4 Kgcm2 1.1*10-3 Kgcm2 2.3*10-3 Kgcm2 5.8*10-2 Kgcm2 1.5*10-2 Kgcm2 5.0*10-2 Kgcm2
    Weight 2.7kg 5.2kg 9kg 14.5kg 37kg 53kg
    Maximum Speed 1500 r/min
    Weight of powder 14g 25g 39g 60g 117g 255g

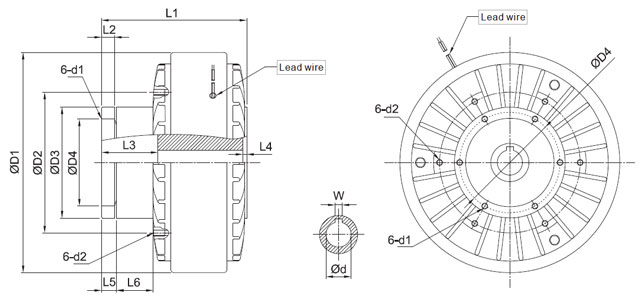

    Magnetic Particle Clutch Dimension (unit: mm)
    Magnatic particle clutch dimension

    Model ATO-PCO-006 ATO-PCO-015 ATO-PCO-025 ATO-PCO-050 ATO-PCO-100 ATO-PCO-200 ATO-PCO-400
    L1 110 126 122 155 177 197 239
    L2 8 9 10 12 14 15 18
    L3 44 49 51 64 77 83 91
    L4 3 3 4 4 8 9 7
    L5 13 14 15 17 20 21 25
    L6 24 29 26 36 45 42 42
    D1 140 152 186 220 290 336 398
    D2 100 105 115 140 180 190 210
    D3 (g7) 85 90 100 120 150 170 180
    D4 75 80 85 105 130 150 160
    d (H7) 16 20 25 30 35 45 50
    w (F7) 5 6 8 8 10 14 14
    d1*depth M5*5L M6*9L M6*10L M6*12L M10*14L M10*15L M12*18L
    d2*depth M5*10L M6*12L M6*12L M6*14L M10*15L M10*16L M12*19L

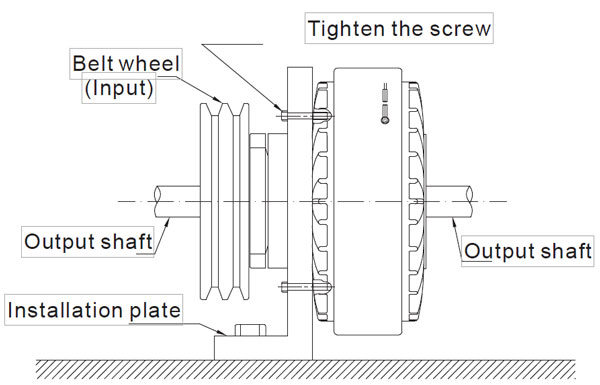

    24VDC Magnetic Particle Clutch Installation
    Magnetic clutch installation
    Magnetic Powder Cluch Application
    Magnetic powder brake appication

    Tips: The Advantages of Magnetic Particle Clutch
    Magnetic powder clutch is mainly used for the transmission system with high bonding frequency, which requires smooth bonding, need to adjust the starting time, or can play the role of safety protection when overload, and requires automatic adjustment of torque, speed and constant torque. The advantages of magnetic particle clutch are as follows:
    1. Magnetic particle clutch uses high temperature resistant coil and special grease bearing, running smoothly, no vibration, no impact and no noise when starting, running and braking.
    2. Imported super alloy magnetic powder with superior heat resistance, low temperature rise, constant output torque, fast response speed and high frequency operation.
    3. Adopt uniform thermal deformation cooling structure and excellent heat dissipation design, with long service life.
    4. With overload protection function, that is, in the case of overload torque, automatic slip differential line play overload protection
    5. Ensure that the maximum torque produced by the engine can be transferred, and there is a certain transfer torque.
    6. When it comes to separation, complete separation, gentle joint, and good heat dissipation ability.
    7. The inertia of the driven part should be as small as possible. In this way, when the clutch changes gears, the speed of the part connected with the transmission input shaft is easy to change, thus reducing the impact between the gears.
    8. It has the ability to mitigate the impact of rotation direction and attenuate the vibration in this direction with low noise.
    9. Pressure and friction plate friction coefficient changes little, stable work.
    10. Easy operation and maintenance.

    This video will show you water-cooled magnetic powder clutch seal ring replacement.

    Existing reviews of Magnetic Particle Clutch, Hollow Shaft, 6Nm-200Nm
    What is the torque when the 6Nm magnetic particle clutch is energized?
    Assuming your 6Nm magnetic particle clutch is engaged when unpowered, what is the drag torque when the clutch is powered? In one state, the clutch should allow the drive shaft to rotate freely.
    From: Lynnm | Date: 14/10/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, the clutch can allow the drive shaft to rotate freely when un-powered, because the clutch is powered by the motor. And the drag torque will be approx 4-5Nm when the clutch is powered.
    Can you recommend us a suitable clutch?
    I am looking for a 12V or 24V clutch for a 5Hp-10 Hp application. Can you advise any options you have available?
    From: Zthun | Date: 19/07/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, we have, but there are some more parameters you have to specify for required 12 V or 24 V clutch, like the torque, shaft size, so can recommend the most suited model.
