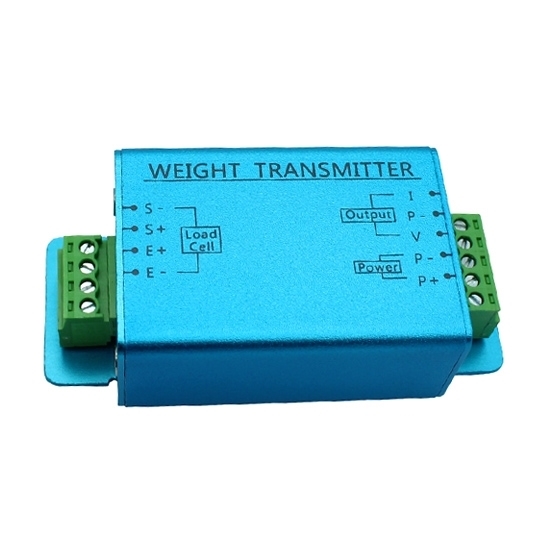

    Load Cell Transmitter, Output 0-5V/0-10V/4-20mA

    Load Cell Transmitter, Output 0-5V/0-10V/4-20mA

    4.9 out of 5 based on 12 reviews | Write a review
    $81.27
    Load cell transmitter is made of aluminum alloy, output standard signal 0-5V/0-10V/4-20mA, has linear compensation, humidity compensation, external zero debugging, external span debugging, input overload protection and output short circuit protection functions.
    *
    SKU: ATO-LCTR-OA
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Load cell transmitter has external zero debugging and external span debugging functions, output standard signal 0-5V/0-10V/4-20mA.

    Specification:

    Model ATO-LCTR-DY510
    Accuracy ±0.05%FS
    Input signal 0-20mV
    Excitation voltage for load cell 5V
    Output signal (DC) * 0-±5V/0-±10V/4-20mA
    Power supply DC 18-30V

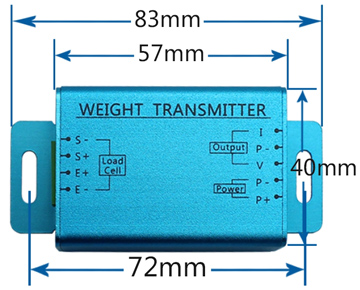

    Load cell transmitter dimension drawing:
    Load cell transmitter dimensional drawing

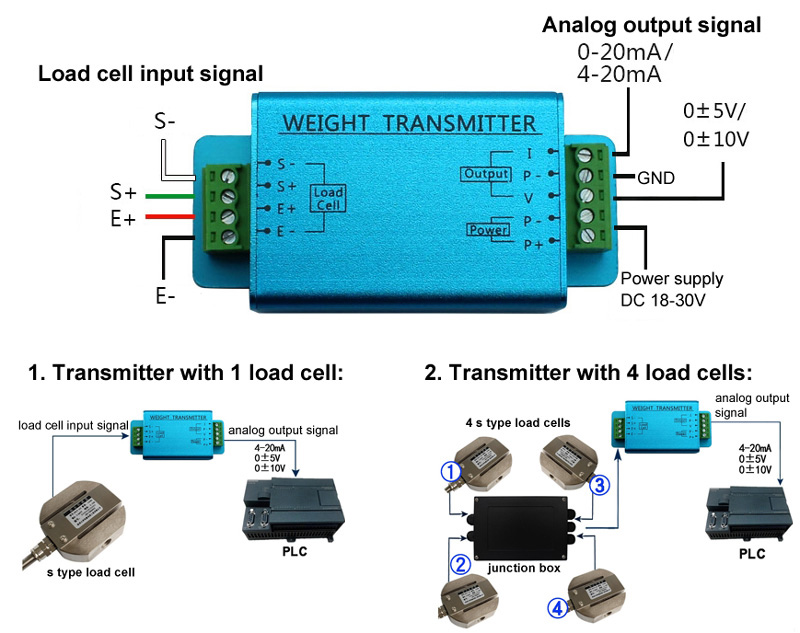

    Load cell transmitter wiring diagram:
    Load cell transmitter wiring diagram

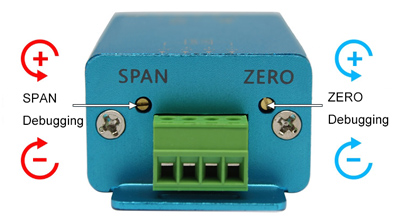

    Load cell transmitter span debugging and zero debugging

    Load cell transmitter span debugging and zero debugging

    How to calibrate the load cell transmitter/amplifier with a load cell?
    This video shows how to connect a load cell transmitter/amplifier to a load cell and how to calibrate the weighing system and adjust output signal (4~20mA).

    In this video, ATO will show you top ten most used sensors (sensing technologies).

    Calibrating a Weight Sensor Transmitter/Amplifier

    In this video, we show you how to perform the calibration process for a weight transmitter/signal amplifier provided by ATO.com. There are several basic parameters that need to be checked, adjusted, and verified for a successful calibration. During this process, we used a digital multimeter to ensure that the transmitter's output signal was exactly between 0 and 10V. We also walked you through how to set up the full range of equipment

    How to Make Your Load Cell Transmitter Work More Accurately

    In this video, we've shown you how to calibrate the weight transmitter Model 610 by ATO using a compression load cell so that you can make sure you get the most accurate readings possible in your measurement.

    CHB Load Cell Controller Calibration | Compensation Factor Calculation

    In this video, we will walk you through the calibration procedure of ATO's CHB series load cell controller and how to calculate the compensation factor for your specific load cell so as to improve measurement accuracy. Hope you'll find it helpful.

    How to Test for Faults in Load Cells?

    As the most essential as well as vulnerable part of an electronic weighing system, load cells might get damaged for many different reasons. How can you determine whether a load cell is at fault? This video is gonna smooth out this problem by showing you several basic field tests that can be performed on site and provides the information necessary to interpret the results.

    Load Cell Transmitter with Output 0-5V/0-10V/4-20mA/0-20mA

    This intro video describes the features of ATO-DY510 load cell transmitter as well as its specifications. Housed in aluminum alloy case and CE-certified, the transmitter can connect to single or up tp 4 load cells at built-in excitation voltage from 5V to 15V DC. Powered from 18-30V DC supplies, this high precision weight transmitter can accept a 0-20mV full scale input range and convert the low strength signal into a 0-5V/0-10V/4-20mA/0-20mA output.

    Existing reviews of Load Cell Transmitter, Output 0-5V/0-10V/4-20mA
    DATA SHEET
    I would like to draw your attention to the fact that the technical specifications displayed on this web page are different from the specifications provided in the PDF file, particularly regarding the input voltage. On the web page, it is listed as 0-20 mV, while in the PDF file, it is stated as 0.5-4 mV. Could you please confirm which one is correct so that I can make my decision?
    From: Yacine | Date: 29/04/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    0-20mV is correct, we have corrected the manual information.
    Can load cell display below read in "lbs"?
    Our load cell display below can read in "lbs", right?
    From: kari | Date: 24/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Our load cell display below can read in "lbs" and requires the selection of the transmitter ATO-S-LCTR-DY610, ATO-LC-TC01, and
    ATO-DPM-LC5D, which can be calibrated to lbs units.
    But when it is displayed, only the value is displayed, and the unit is not displayed.
    If you have any advice to fix my load cell problem?
    I’ve bought two kits of load cell with weight transmitter from you on February 23rd 2023.
    I received one ATO-LCTR-OA labeled with a red “A” sticker and one with a red “B” sticker. I’m wondering If maybe I got the wrong model for one of the two? Also, I received one with the span and zero adjustment screw glued in place, while the other where free to spin around.
    The weight transmitter labeled B has adjustable screw. It’s giving me wildly variable reading with nothing on the scale while the “A” transmitter stays put. I’d like to know what you warranty is like and if you have any advice to fix my problem.
    From: amos | Date: 06/06/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. In order to confirm whether the transmitter ATO-LCTR-OA we sent is wrong, could you please provide us with the nameplate labels of the two transmitters for further confirmation?
    2. For the calibration of the transmitter, you can refer to our demonstration video.
    Note: The calibration target weight is at least 10% of the load cell capacity you purchased, and the other steps are the same.
    Please see on: https://www.youtube.com/watch?v=o3bVCWKPT0s&list=PLlo8RulDRnth25OFq-RKmYSKG9zkpeAZB&index=5
    May I know where to connect the Reference (+) & (-) ?
    With reference to the below, Received the device.

    1. Red   Excitation
    2. Blue - Excitation
    3. Yellow   Signal
    4. Green - Signal
    5. White   Reference
    6. Black – Reference

    Above mentioned is the wiring of existing Load cell and in your transmitter, there is only 4 wires. May I know where to connect the Reference (+) & (-) ?
    From: Lay | Date: 02/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    These two cables Reference (+) & (-) can be left unconnected and can be ignored.
    Do you have troubleshooting ideas and/or a manual for both products?
    I have an ATO-TQS-SO4 paired with ATO-LCTR-OA rated for 20Nm and an output of 0  - 10V, but I am having trouble using it. No matter how much torque I apply, the voltage output remains the same, even when I apply no torque to the load cell. Do you have troubleshooting ideas and/or a manual for both products?
    From: Peterson | Date: 27/07/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    You need to calibrate the torque sensor ATO-TQS-SO4 and the transmitter ATO-LCTR-OA. The calibration method is similar to calibrating the load cell, you can refer to the manual of the transmitter, see on: https://www.ato.com/Content/doc/Load-cell-transmitter-user-manual-ATO-LCTR-OA.pdf, and a video of a calibrated load cell for your reference, see: https://youtu.be/o3bVCWKPT0s
    When calibrating, you need to apply a torque of 5Nm or 10Nm to the torque sensor as a calibration value, and it is similar to the weight (Kg) applied in the video.
    I have incorrectly configured the load cell transmitter.
    How can I factory reset the load cell transmitter?
    From: Izan | Date: 27/07/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    There is no way to return to the factory state. What you can do is to adjust the output voltage to 0V, and then use this as a reference to get the voltage or current you want by adjusting.
    I’m searching for a signal conditioner for a load cell.
    I’m searching for a signal conditioner for a load cell to reduce noise/ other disturbance and improve accuracy on a weighing machine. The load cell has a 10kg capacity, an excitation voltage of 10V, and an output of 0-20mv. I was looking at the ATO-LCTR-DY510 as a potential solution but I’m not sure if it will be compatible with the target machine. Currently, the load cell connects directly to the machine without an external amplifier and I was concerned that the 0-5V output of the transmitter will be too high. Would there be other solutions from ATO (potentially passive or active filters) that could be applicable?
    From: Albin | Date: 30/05/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The signal conditioner ATO-LCTR-DY510 of the load cell supports load cells with a capacity of 10kg, an excitation voltage of 10V, and output of 0-20mv, and can output a signal of 0-5V. But we also want to confirm what are the specific factors of on-site interference? And what is the accuracy requirement of the output signal? Please tell us the specific environment used on site so that we can recommend more suitable models.
    What is your load cell output signal and sensitivity?
    What is your load cell output signal and sensitivity?
    From: Andrewk | Date: 16/12/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The load cell output signal is: 0-20mV.
    And sensitivity is: 2.0±0.1mV/V.
    Can the output of the load cell be selected on site?
    Does the "load cell transmitter, output 0-5V/0-10V/4-20mA/0-20mA" output, so I can choose on site?
    From: Chantalv | Date: 01/12/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    You can choose while ordering which output signal you will be needing not on site, it should be one value "factory selected option."
    How can the load cell transmitter work normally?
    Can your load cell transmitter ATO-LCTR-OA be supplied via 12VDC (battery of 12-14 volts) or does it need an additional DC-DC converter 12V DC to 24V DC power supply for proper operation?
    From: Glenn | Date: 23/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Load cell transmitter (ATO-LCTR-OA) DC input voltage can be DC 18-30V only, and 12-14V DC voltage is relatively low, so we recommend using DC-DC converter 12V to 24VDC with 1A capacity.
    Can I customize the load cell I need?
    Can you customize your load cell to be stainless steel?
    From: Parton | Date: 10/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, but the price will be abit higher.
    Load cell transmitter is good for s type load cell
    After the load cell transmitter is combined with the s type load cell, the external disturbance is much smaller. And the load cell transmitter works very stably. There is no difference between the original transmitter and this load cell transmitter on accuracy. However, the original transmitter is much more expensive than this one.
    From: Lange | Date: 20/12/2018
    Was this review helpful? Yes No (0/0)
    Load more reviews...
    Write your review for Load Cell Transmitter, Output 0-5V/0-10V/4-20mA
    • Only registered users can write reviews
    • Bad
    • Excellent
    Related products
    Strain Gauge Load Cell, S type, 5kg/20kg/30kg/500kg to 7 ton

    Strain Gauge Load Cell, S type, 5kg/20kg/30kg/500kg to 7 ton

    $82.59
    SKU: ATO-LC-S02
    S type load cell can bear both tension and pressure, with overload protection device, good output symmetry, high accuracy, compact structure and complete specifications. Strain gauge load cell can be applied for batching scale, electronic-mechanical scale, crane scales, automatic weighing instrument and other force value measurement and control.
    Compression Load Cell, 300kg/1000kg/25 ton/50 ton to 100 ton

    Compression Load Cell, 300kg/1000kg/25 ton/50 ton to 100 ton

    $116.78
    SKU: ATO-LC-P01
    Compression load cell is special designed for weight measurement, with good anti-eccentric load performance, low height, all sealed, complete specifications, Load cell can be applied for platform scale, truck scale, rail weighbridge and material level measurement and control in warehouse.
    Tension/Compression Load Cell, Low Profile, 500kg/30 ton to 100 ton

    Tension/Compression Load Cell, Low Profile, 500kg/30 ton to 100 ton

    $145.28
    SKU: ATO-LC-P02
    Low profile load cell also known as pancake load cell, has flat design, high strength and good symmetry. Tension and compression load cell can be applied for platform scale, truck scale, rail weighbridge and material level measurement and control in warehouse, with good anti-eccentric load performance, low height, all sealed structure and complete specifications.

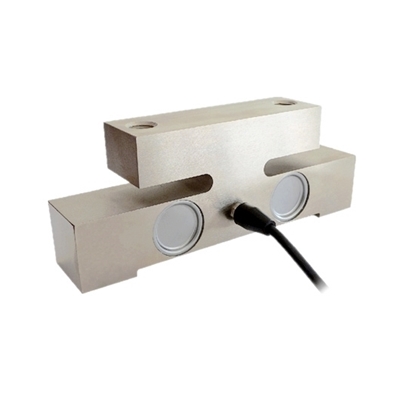

    Shear Beam Load Cell, 1 ton/2 ton/5 ton/10 ton/20 ton to 30 ton
