    Compression Load Cell, 300kg/1000kg/25 ton/50 ton to 100 ton

    4.9 out of 5 based on 11 reviews | Write a review
    $116.78
    Compression load cell is special designed for weight measurement, with good anti-eccentric load performance, low height, all sealed, complete specifications, Load cell can be applied for platform scale, truck scale, rail weighbridge and material level measurement and control in warehouse.
    *
    SKU: ATO-LC-P01
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0~5V, 0~10V, 0~±10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    The compression load cell is a device used to measure pressure changes. Its working principle is based on the Piezoresistive Effect. When pressure is applied, the piezoresistive material physically deforms. This deformation causes the material's resistivity to change, producing a voltage signal. By measuring changes in this voltage signal, information about pressure changes can be obtained. Compression load cells have capacity range from 300kg, 500kg, 1000kg, 10 ton, 25 ton, 50 ton to 100 ton. Load cell capacity can be customized according to customer requirements.

    Specification

    Model ATO-LCST-TJH-4A
    Shipping Weight 1.5~31kg
    Capacity Range * 300 kg~100 ton
    Matched Display Controller ATO-TY5DA3 (Click it to the controller page)
    Matched Transmitter ATO-LCTR-NTB3K (Click it to the transmitter page)
    Accuracy 0.03%F.S (linearity + hysteresis + repeatability)
    Sensitivity 2.0±0.1mV/V
    Creep ±0.03%F.S/30min
    Zero Output ±1%F.S
    Temperature Effect on Zero ±0.03%F.S/10℃
    Temperature Effect on Output ±0.03%F.S/10℃
    Operating Temperature -20℃~+65℃
    Input Impedance 380±10Ω or 750±15Ω
    Output Impedance 350±3Ω or 700±5Ω
    Insulation Resistance ≥5000MΩ
    Safety Overload 150%F.S
    Bridge Voltage (excitation voltage) DC 10V
    Material Alloy steel or stainless steel
    Protection Class IP67
    Cable Length 3m (＜5 ton), 6m (≥5 ton)
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White


    Feature

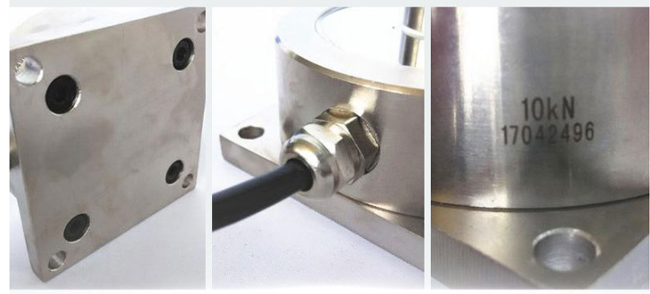

    Compression load cell 300kg to 50 ton feature

    • 42CrMo Alloy Material: Features an external thread connection, offering exceptional resistance to mechanical fatigue, high load capacity, and a broad range of applications, ensuring both safety and reliability.
    • High Measurement Accuracy: Delivers stable output with consistent and reliable signal transmission, coupled with strong anti-jamming capabilities, ensuring precise and accurate measurements.
    • Fine Workmanship: Incorporates advanced grinding techniques with a smooth, flat design, allowing for effortless connection with dual-threaded ends and ensuring easy and efficient installation.

    Dimension

    Capacity Dimension (mm)
    L1 L2 ΦC ΦD H E SR
    300~1000kg 74 62 16 6.5 41 33 52
    2~7ton 90 73 20 8.5 53.5 44 70
    10~25 ton 116 96 30 11 82 70 91
    30~50 ton 132 108 38 13 97 85 120
    100 ton 240 190 76 26 125 112 200

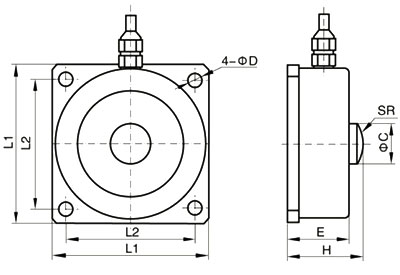

    Compression load cell 300kg to 50 ton dimension

    Wiring Method

    Load cell wiring method

    Tips: Can Compression Load Cells be used in multi-load measurement systems?

    Yes, compression load cells can be used in multi-load measurement systems where multiple load cells are combined to measure forces in different directions or parts of a system. In such systems, the data from multiple load cells are combined to provide an overall force measurement, often used in testing or monitoring systems in industries such as aerospace, automotive, and structural engineering. For instance, in large-scale testing setups, multiple compression load cells are used to measure different parts of a structure or machine under load, allowing for more comprehensive force measurement.

    Causes and Solutions for Load Cell Drift

    In this video, we discuss several common causes of load cell drift and share with you some possible solutions. After watching it, you may find it helpful to ensure the accuracy of your load cells and weighing systems.

    Weighing Monitoring System

    In this video, you are introduced to a weighing monitoring system using PLC, HMI and load cell.

    How to Make Your Load Cell Transmitter Work More Accurately

    In this video, we've shown you how to calibrate the weight transmitter Model 610 by ATO using a compression load cell so that you can make sure you get the most accurate readings possible in your measurement.

    CHB Load Cell Controller Calibration | Compensation Factor Calculation

    In this video, we will walk you through the calibration procedure of ATO's CHB series load cell controller and how to calculate the compensation factor for your specific load cell so as to improve measurement accuracy. Hope you'll find it helpful.

    How to Test for Faults in Load Cells?

    As the most essential as well as vulnerable part of an electronic weighing system, load cells might get damaged for many different reasons. How can you determine whether a load cell is at fault? This video is gonna smooth out this problem by showing you several basic field tests that can be performed on site and provides the information necessary to interpret the results.

    Load Cell Transmitter with Output 0-5V/0-10V/4-20mA/0-20mA

    This intro video describes the features of ATO-DY510 load cell transmitter as well as its specifications. Housed in aluminum alloy case and CE-certified, the transmitter can connect to single or up tp 4 load cells at built-in excitation voltage from 5V to 15V DC. Powered from 18-30V DC supplies, this high precision weight transmitter can accept a 0-20mV full scale input range and convert the low strength signal into a 0-5V/0-10V/4-20mA/0-20mA output.

    Strain Gauge Load Cell, S Type

    In this video, ATO offers a variety of load cells and weigh modules designed for your applications.

    Existing reviews of Compression Load Cell, 300kg/1000kg/25 ton/50 ton to 100 ton
    A question
    Hello, I have a question about the ATO-LCST-TJH-4A 300Kg compression load cell. Is it possible to set the excitation voltage to 5V and then use it with an amplifier/ADC like the HX711? This is my current electronics configuration. If it doesn't work, I will have to look for other load cells.
    From: Linde | Date: 03/03/2026
