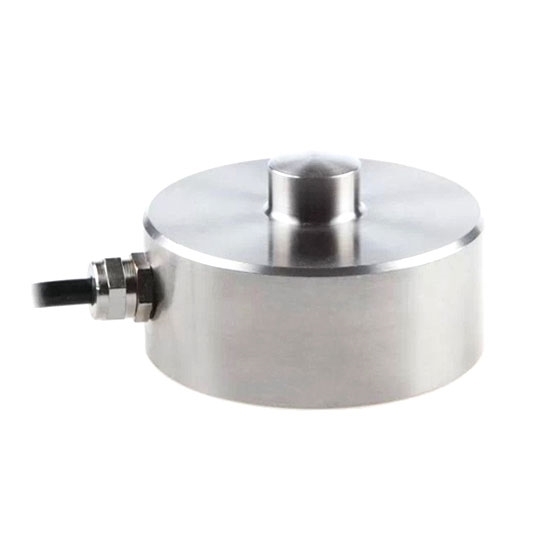

    Compression Load Cell, 300kg/500kg/2 ton/10 ton to 30 ton

    5 out of 5 based on 6 reviews | Write a review
    $157.78
    Compression load cell is special designed for weight measurement, with compact structure, pouring sealant or welding seal, low height, all stainless steel, good anti-eccentric load performance and corrosion-resistant. Load cell can be applied for platform scale, truck scale, rail weighbridge and automated measurement and control areas.
    *
    *
    SKU: ATO-LC-TC03
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Compression load cells have capacity range from 300kg, 500kg, 1000kg, 10 ton to 30 ton. Load cell capacity can be customized according to customer requirements.
    After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    The compression button load cell is a high-precision measuring device mainly used to measure small weight or pressure changes. The low profile and compact design make it ideal for use in tight spaces, and the all-stainless steel construction provides corrosion resistance and reliability in harsh industrial environments. Unique button design ensures accurate load distribution.

    Specification

    Model ATO-LCC-TJH-14
    Shipping weight 1.3~6.3kg
    Capacity range * 300 kg~30 ton
    Matched Display Controller ATO-TY5DA3
    Accuracy 0.03%F.S (linearity + hysteresis + repeatability)
    Sensitivity 2.0±0.1mV/V
    Creep ±0.03~±0.05%F.S/30min
    Zero output ±1%F.S
    Temperature effect on zero ±0.03%F.S/10℃
    Temperature effect on output ±0.03%F.S/10℃
    Operating temperature -20℃~+65℃
    Input impedance 380±10Ω, 750±15Ω
    Output impedance 350±3Ω, 700±5Ω
    Insulation resistance ≥5000MΩ
    Safety overload 150%F.S
    Bridge voltage (excitation voltage) DC 10V
    Material Stainless steel
    Protection class IP67
    Cable length 3m (<5 ton), 6m (≥5 ton)
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White


    Feature

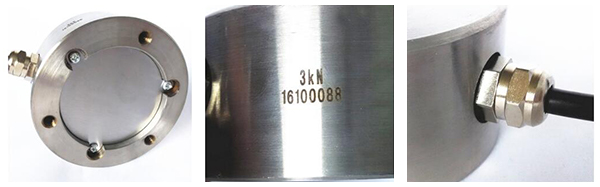

    Compression load cell 200kg to 30 ton feature

    • High-Quality Stainless Steel Construction: Made from durable stainless steel, ensuring strength and resistance to wear and tear in demanding environments.
    • Strong Anti-Corrosion Ability: The product is designed to withstand harsh conditions with superior resistance to corrosion, making it suitable for various industrial and outdoor applications.
    • Dual Seals for Protection: Equipped with double seals for enhanced protection against dust, moisture, and contaminants, ensuring longevity and reliable performance.
    • Versatile Force Measurement: Ideal for a wide range of force measurement applications, including industrial weighing systems, automotive platforms, and conveyor systems.
    • Suitable for Harsh Environments: Engineered to perform accurately in challenging environments, making it perfect for use in factories, construction sites, and other harsh conditions.
    • Applications in Automation and Control Systems: Commonly used in automotive, rail, and automation control systems, ensuring precise and accurate force monitoring for operational efficiency.

    Dimension

    Capacity Dimension (mm)
    ΦA ΦB ΦC H E M SR
    300~1000kg 78 64 15 40 32 M6 40
    2~10 ton 82 66 22 44 32 M8 50
    15~30 ton 127 90 25 70 62 M10 60

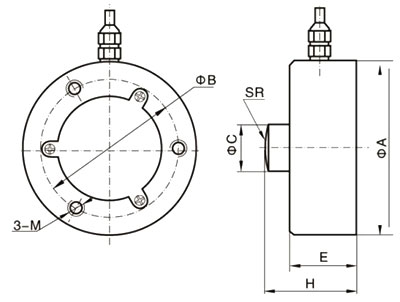

    Compression load cell 200kg to 30 ton dimension

    Wiring Method

    Load cell wiring method

    Application

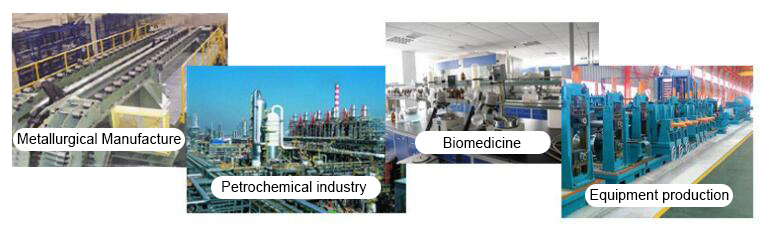

    Compression load cell 200kg to 30 ton application

    Tips: What factors can affect the performance of a Compression Load Cell?

    Several factors can impact the performance of a Compression Load Cell:

    • Temperature Variations: Extreme temperature fluctuations can cause measurement inaccuracies due to changes in the load cell’s material properties. Many compression load cells are designed with temperature compensation to mitigate this issue, but temperatures outside the specified operating range may still affect accuracy.
    • Improper Alignment: If the load cell is not correctly aligned with the applied load (i.e., if it experiences side loading or bending), it can lead to inaccurate readings or even damage to the cell.
    • Overloading: Exceeding the rated capacity of the load cell can cause permanent damage and affect the accuracy of measurements. Regular calibration and careful attention to the maximum rated load are necessary to avoid overloading.
    • Vibration and Shock: Mechanical shock or vibrations from surrounding machinery can impact the accuracy of measurements. It's important to install the load cell in an environment where vibrations and shock are minimized, or use damping materials to absorb impacts.
    • Electrical Interference: External electrical sources, such as motors or other machinery, can generate electromagnetic interference (EMI) that affects the signal output. Using proper shielding and grounding techniques can minimize this issue.

    How to Choose the Right Load Cell

    Load cells are sensors used to measure the weight of an object. Their working principle is based on physical phenomena such as elastic deformation, electromagnetic force and pressure change, with high accuracy and reliability. These sensors can accurately measure the weight of an object for monitoring, control and recording. This video will help you choose the right load cell through six factors: Application, operating environment, material type and sealing technology, capacity/resolution requirements and output signal type.

    In this video, we've shown you how to calibrate the weight transmitter Model 610 by ATO using a compression load cell so that you can make sure you get the most accurate readings possible in your measurement.


    Existing reviews of Compression Load Cell, 300kg/500kg/2 ton/10 ton to 30 ton
    High accuracy load cell
    "The 300kg load cell and its reader well received today , According to the manual calibration instruction, I quickly adjust the load cell and it works as description that high accuracy. Highly recommend this product.
    From: kerri | Date: 05/02/2023
    Was this review helpful? Yes No (0/0)
    Any additional charges for the 0-5V Customized output signal?
    Hi I would like to know if there's any additional charges for all the variants from 300KG to 30 Ton with 0-5V output signal. Thank you!
    From: Daniel | Date: 06/01/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, you need to buy an additional transmitter (ATO-LCTR-OA). Please go to the page https://www.ato.com/load-cell-transmitter-output-0-5v-4-20ma.
    Can you tailor your load cell to our requirements?
    Can you tailor your load cell to our requirements?
    From: Lindsay | Date: 28/12/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, we can. Just tell us required specs/dims.
    ATO-LC-TC03
    I would like to purchase 10 of these.   Which readout would you recommend for use with this?
    From: Wade | Date: 12/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    We know the range of the load cell you need, so we can recommend the load cell that suits you.
    Specification of load cell
    Looking for a disc type compressive load cell capable of a max load of ~300kg. What outputs do your load cells have? What is the resolution/accuracy?
    From: Supur | Date: 16/09/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The output of our load cell is 0-20mV.
    After purchasing our ATO load cell, you can buy our special digital panel meter to obtain readings directly, or buy our transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4 -20mA.
    Will the compression load cell be calibrated before shipment?
    If I order the load cell and the digital controller, would the equipment be ready to operate when received? I am aware that it need to be calibrated.
    From: Metcalf | Date: 07/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, the load cell and digital controller will be well calibrated before shipping out, so you can use once received.
