    5 Digit Display Controller for Load Cells

    5 Digit Display Controller for Load Cells

    4.9 out of 5 based on 12 reviews | Write a review
    $210.80
    Digital panel meter can cooperate with load cells, force sensors and weighing sensors, two outputs for data comparison, digital panel meter can display gross, net, peak and valley value alternately.
    SKU: ATO-DPM-LC5D
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Intelligent digital display controller can be used for measuring pressure, impact force, tension and weight, has functions such as zero tracking, automatic zero clearing when power on.

    Specification:

    Basics Model ATO-DDC5-CHB
    Dimension A: 160*80*125mm horizontal, hole size 152*76mm
    Shipping weight 2 kg
    Technical parameters Display -19999~99999
    Measurement accuracy 0.05%
    Measuring speed 10 times/second
    Display method 5 digit LED display
    Instrument power supply 100-240VAC, 50/60Hz
    Input signal ±25mV
    Indicator light definition Alarm 1, alarm 2, MOT, zero, gross, net, peak, valley, t, kg, g, kN
    Alarm Two alarm outputs
    External power supply 10V precision power supply
    Working temperature -25~+80℃ (-13~+176℉)

    Wiring diagram:

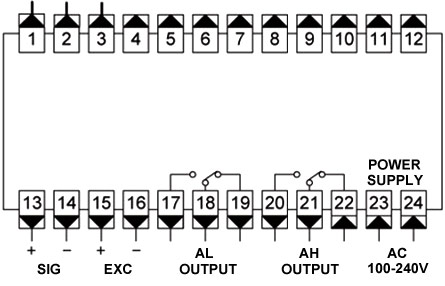

    5 digit display controller for load cell wiring diagram
    Tips: How to judge whether the measurement of display controller for load cells is correct in the field?
    Sometimes, one person can stand beside several load cells respectively to check whether the value of digital weighing controller is the same, and whether it is the weight of that person. This method is very simple and effective. If the data displayed for each sensor is not the same, there exists angular difference. And then it can be judged that the data is inaccurate when the weighing controller is used to measure the large object. Therefore, the height of each sensor should be adjusted to eliminate the gap. If there is no angular difference but the display data is not correct, it is necessary to recalibrate the body. When judging whether the body works normally, the user also can push the weighted container or tank with hands within short time to check whether the changed display data restores to the numerical value before pushing the body. If not, it indicates there is something with the external mechanical connection and there exists external force supporting the measured container or tank.

    This digital panel meter can provide accurate readings for load cells, force sensors and weighing sensors, suitable for measuring pressure, impact force, tension and weight.

    This video shows the connection and setting of the digital display controller with S type load cell.

    CHB Load Cell Controller Calibration | Compensation Factor Calculation

    In this video, we will walk you through the calibration procedure of ATO's CHB series load cell controller and how to calculate the compensation factor for your specific load cell so as to improve measurement accuracy. Hope you'll find it helpful.

    Load Cell Controller Setup and Calibration

    In this video, we select an S-type load cell and a 2kg standard weight to complete the setup and calibration. Finally, ATO also shows you how to set the tare value and measure the tare weight.

    Digital Load Cell Display Controller

    This is an intro video on ATO-CHB load cell display controller. It can display 5 digit readouts from -19999~99999 counts on its LED screen. Equipped with 4 buttons on the front panel, the indicator can work with load cells or force sensors for real-time logging, interlock, and alarming. Besides, it can produce two outputs for data comparison and it has a peak hold and valley function as well as net and gross weight display. It can handle an input range of 0 to ±25mV with 10V excitational power supply. In addition, there are 2 relay output alarms integrated in the indicator.

    Existing reviews of 5 Digit Display Controller for Load Cells
    Excellent Digit Display Controller for Load Cells
    This is needed when the goods ordered by the company are put into storage. Because our goods are made of plastic, a box of goods is generally light but the quantity inside is relatively large, so the digit display controller for load cells is needed. Now that it has arrived, I don’t know if you have calibrated the display of the weighing sensor before delivery. Or do we need to calibrate it ourselves?
    From: Erickaa | Date: 16/06/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Sorry, we do not calibrate it before delivery, you need to calibrate it yourself.
    Please refer to this video for calibration: https://youtu.be/o3bVCWKPT0s
    Transmitter manual: https://www.ato.com/Content/doc/Load-cell-transmitter-user-manual-ATO-LCTR-OA.pdf
    Display Controller for Load Cells
    Do you have a floor scale that works with this display controller for load cells? My customer is looking to weigh a tank of chemicals and once it goes below a certain weight they want an alarm to go off.
    From: Mattew | Date: 28/11/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, our 5 Digit Display Controller supports relay output signals, but we can only provide the controller + load cell. This scale needs to be made by the customer.
    Manual for the model CHB display controller
    Could you provide me with an operator's manual for the Model CHB display?
    From: lailli | Date: 26/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Sorry for the late response.
    Please refer to this manual: https://www.ato.com/Content/doc/ato-ddc5-chb-digital-controller-instruction-manual.pdf
    If I can connect the load cell to a controller system?
    I'm designing a linear tribometer. So basically, I'm applying a constant force (fz) and measuring the frictional force in the x (fx) or y (fy) direction while the tribometer moves in the forward and backward directions. I was thinking to have a load cell connected to a DAQ system to visualize the frictional force, as shown in the figure below.

    Here, I was applying a load of 1 N, and the force sensor gave an answer of the friction force (fx) in forward and backward direction over time, I saved the data, and then I repeated the process applying a normal force of 3 N, and finally 5 N.

    I only need to know if I can connect the load cell to a NI-DAQ system to visualize the data in my laptop through a LabView program.
    From: kalan | Date: 26/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    What signals does the NI-DAQ system you use support?
    Is it RS485, or analog signal 4-20ma, 0-10V?
    We recommend that you use an amplifier to transmit and output these signals from the load cell, please see: https://www.ato.com/digital-load-cell-amplifier-output-4-20ma-0-10v-rs485
    How can I visualize the controller signal?
    I have a few questions about this sensor.
    Do you provide all the cables needed to connect it?
    How can I visualize the signal?
    From: anja | Date: 25/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, this 3 Axis Load Cell 100N has 3 sets of cables (default 2 meters long) in the three force directions of X, Y, and Z, which is equivalent to three independent load cells. You can have three digital display readouts.
    Set my load cell controller
    I need support to set my load cell controller in order to work properly with my tension load cell 50T. Can you send me step by step the settings I need to configure for these 2 products to work correctly.
    From: Beahn | Date: 07/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Please refer to the video and manual on our website to set up the meter: https://www.ato.com/5-digit-display-controller-for-pressure-sensor
    Do I still need to make a calibration point?
    The video doesn't help because the lady is using a load cell that can detect the weight of a cellphone, but my load cell is 50T. The range limit is 45000 which means that my load cell is not suitable for this display. Do I still need to make a calibration point?
    From: GuadJal | Date: 03/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    You need to recalibrate the meter and use kN as the unit, but only one decimal point. Please refer to the manual:
    https://www.ato.com/Content/doc/ato-ddc5-chb-digital-controller-instruction-manual.pdf
    Can you tell me how to set them up to work properly?
    I need support to set my Load Cell Controller in order to work properly with my Tension Load Cell 50T. Can you tell me how to set them up to work properly?
    From: Lessili | Date: 03/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Please refer to the video and manual on our website to set up the meter: https://www.ato.com/5-digit-display-controller-for-pressure-sensor
    Question about 5 Digit Display Controller.
    We have a 5 Digit Display Controller for Load Cells (SKU: ATO-DPM-LC5D) and yesterday when we turned it, on it only would display "o.L". It does this regardless of whether or not a load cell is attached to it. Could you tell me how to clear this error message so that I can use my load cells again?
    From: Bourdon | Date: 27/07/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    In that case, if the 5 Digit Display Controller displays "o.L", then it is possible that the load cell is damaged. You could replace a load cell, and test again.
    Display controllers for load cells
    The load cell controllers have excellent performance and powerful functions. The digital display controllers are very suitable for weighing measurement. We have been using these 5 digit controllers for a long time.
    From: Simon | Date: 02/12/2018
    Was this review helpful? Yes No (0/0)
    Platform scale remolding
    I use the 5 digit display controller for our platform scale remolding. It's easy to use and set. The accuracy fully meets our requirements.
    From: Robert | Date: 07/06/2018
    Was this review helpful? Yes No (0/0)
    Pretty good
    This controller is placed on the side of the assembly line and well matching with the load cell.
    From: Kraus | Date: 18/05/2018
    Was this review helpful? Yes No (0/0)
    Load more reviews...
