Digital Panel Meter for Displacement Sensor 4 Digit

5 out of 5 based on 1 reviews | Write a review

$174.62

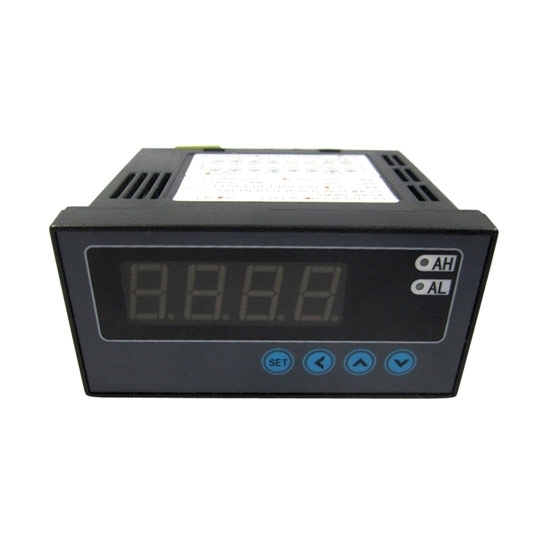

Single channel digital panel meter cooperate with all kinds of analog output sensor and transmitter, realize measurement, conversion, display, transmitting, record and control, zero clearing at any time.

Dimension *
Additional Power Supply *
Output Signal *

SKU: ATO-DPM-DS4D

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Intelligent digital panel meter has adjustment and digital filtering function. The digital display controller can be used for various sensors and transmitters, such as temperature sensor, pressure sensor, flow sensor, level sensor, displacement sensor, AC/DC current sensor and transmitter with 4-20mA/0-5V/0-10V analog output, etc.

Specification:

Basics	Model	ATO-DPM-DS4D-CH6
		Digital panel meter user manual
	Dimension (WHL)	D1: 16080125mm horizontal, hole size 15276mm; D2: 80160125mm vertical, hole size 76152mm; D3: 969676mm, hole size 9292mm; D4: 964882mm horizontal, hole size 9245mm; D5: 489682mm vertical, hole size 9245mm; D6: 727275mm, hole size 6868mm; D7: 4848108mm, hole size 45.5*45.5mm.
	Shipping weight	2 kg
Technical parameters	Display	-1999~9999
	Measurement accuracy	＜0.5%
	Measuring speed	10 times/second
	Display method	4 digit LED display; 4 digit LED display + setting
	Instrument power supply	100-240VAC, 50/60Hz
	Universal signal input	DC current 4-20mA, 0-20mA, 0-10mA; DC voltage 0-5V, 1-5V; RTD sensor: Pt100 (-200~+500℃), Cu100 (-50~+150℃), Cu50 (-50~+150℃), BA1 (-200~+650℃), BA2 (-200~+500℃), G53 (-50~+150℃); Thermocouple: K type (-100~+1300℃), S type (0~+1700℃), R type (0~+1700℃), B type (500~1800℃), N type (-100~+1300℃), E type (-100~+800℃), J type (-100~+1100℃), T type (-100~+400℃). *Note: DC voltage 0-10V input need to be customized and can't be a universal signal input.
	Alarm	AH and AL alarm (2-channel relay output)
	Additional power supply (optional)	P0: No power supply; P1: DC 24V±5%, ＜50mA; P2: DC 12V±5%, ＜50mA. *Note: Additional power supply can provide DC power supply for other devices such as sensors.
	Output signal (optional)	T0: No output signal; T1: Current output (4-20mA), (0-10mA), (0-20mA); T2: Voltage output (0-5V), (1-5V); T3: Voltage output (0-10V). *Note: DC voltage 0-10V output need to be customized.

Tips: How to set digital panel meter for displacement sensor?
The parameters of digital panel meter for displacement sensors generally include the upper limit of measured value, the lower limit of the measured value, the upper limit of deviation, the lower limit of deviation, the absolute value of the deviation. For example, the upper (lower) limit of measured value is used to set the maximum (minimum) measuring range of the displacement. It is used to display the displacement value delivered to the DCS control system.

In this video, ATO will show you how to set the basic parameters of digital panel meter, and how to connect a digital panel meter and a displacement sensor to form a simple displacement measuring system.

CHB Load Cell Controller Calibration | Compensation Factor Calculation

In this video, we will walk you through the calibration procedure of ATO's CHB series load cell controller and how to calculate the compensation factor for your specific load cell so as to improve measurement accuracy. Hope you'll find it helpful.

Temperature Controller Wiring and Settings

In this video, ATO will show you how to connect a temperature controller with a thermocouple or RTD sensor, and how to set the basic parameters of the temperature controller.

Load Cell Controller Setup and Calibration

In this video, we select an S-type load cell and a 2kg standard weight to complete the setup and calibration. Finally, ATO also shows you how to set the tare value and measure the tare weight.
