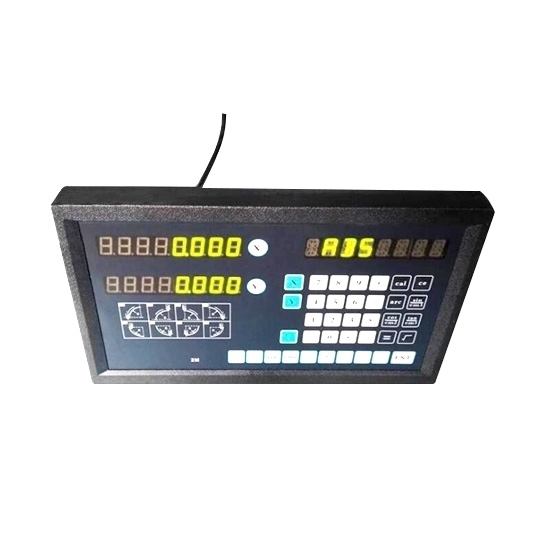

    Precision Digital Panel Meter for Grating Ruler 7 Digit

    Precision Digital Panel Meter for Grating Ruler 7 Digit

    Write a review
    $226.15
    Multichannel digital panel meter for precision linear displacement sensor has power failure memory function, anti-interference, high-precision, high-speed, anti-vibration, greasy dirt resistance.
    SKU: ATO-DPM-GR7D
    Free Shipping Worldwide
    Delivery date: 6-30 days
    Related products
    Digital Panel Meter for Displacement Sensor 4 Digit

    Digital Panel Meter for Displacement Sensor 4 Digit

    $164.62
    SKU: ATO-DPM-DS4D
    Single channel digital panel meter cooperate with all kinds of analog output sensor and transmitter, realize measurement, conversion, display, transmitting, record and control, zero clearing at any time.
    Digital Panel Meter for Potentiometers 5 Digit

    Digital Panel Meter for Potentiometers 5 Digit

    $226.15
    SKU: ATO-DPM-DS5D
    Single channel digital panel meter can cooperate with displacement sensors, linear position sensors, potentiometers, etc. 16-bit A/D converter, zero clearing at any time.
    5 Digit Display Controller for Load Cells

    5 Digit Display Controller for Load Cells

    $210.80
    SKU: ATO-DPM-LC5D
    Digital panel meter can cooperate with load cells, force sensors and weighing sensors, two outputs for data comparison, digital panel meter can display gross, net, peak and valley value alternately.
    LVDT Sensor

    LVDT Sensor

    $249.23
    SKU: ATO-LVDT
    LVDT displacement sensor combines sensor, oscillator, demodulator and filter in one, large stroke, high accuracy, good stability, anti-interference ability, high temperature resistance, non contact measurement, easy to install.

    Intelligent digital panel meter is widely used in machine tool processing and precision measurement of instruments, and can be selected for all kinds of machine tool retrofitting, and instrument digitized transformation.

    Functions:

    • Absolute/ relative counting conversion
    • 1000 groups of zero memory
    • Function calculator operation
    • Metric system/ british system conversion
    • Circular arc processing
    • Bevel processing
    • Circumference drilling
    • Oblique line drilling
    • Any point zero clearing
    • Power failure memory
    • Non-linear compensation

    Specification:

    Basics Model ATO-DPM7
    Dimension 295*170*65 mm
    Shipping weight 2 kg
    Technical parameters Voltage 80-260V AC, 50-60Hz
    Power 15VA
    Display method 7 digit LED display
    Operating temperature 0~45℃
    storage temperature -30~70℃
    Relative humidity ＜90%
    Display coordinate axis two-axis, three-axis, four-axis, five-axis (optional)
    Input signal TTL square wave
    Resolution ratio 0.1um; 0.2um; 0.5um; 1um; 5um; 10um
    Resolution ratio of angle (minimum) 0.001/pulse
    Communication RS232 serial communication

    Tips: How to install precision digital panel meter for grating ruler/infrared linear displacement sensor?

    1. On the fixed distribution cabinet, choose a proper place  to trepan an mounting hole according to the hole size.
    2. Take out the panel meter, loosen the positioning screw,  and remove the fixed clamp.
    3. Insert the precision digital panel meter into the mounting hole of distribution cabinet.
    4. Insert the fixed clamp of the panel meter and fasten the positioning screw.
