    Tension/Compression Load Cell, Low Profile, 500kg/30 ton to 100 ton
    Picture of Tension/Compression Load Cell, Low Profile, 500kg/30 ton to 100 ton
    Picture of Tension/Compression Load Cell, Low Profile, 500kg/30 ton to 100 ton
    Picture of Tension/Compression Load Cell, Low Profile, 500kg/30 ton to 100 ton
    Picture of Tension/Compression Load Cell, Low Profile, 500kg/30 ton to 100 ton
    Picture of Tension/Compression Load Cell, Low Profile, 500kg/30 ton to 100 ton
    Picture of Tension/Compression Load Cell, Low Profile, 500kg/30 ton to 100 ton
    Picture of Tension/Compression Load Cell, Low Profile, 500kg/30 ton to 100 ton

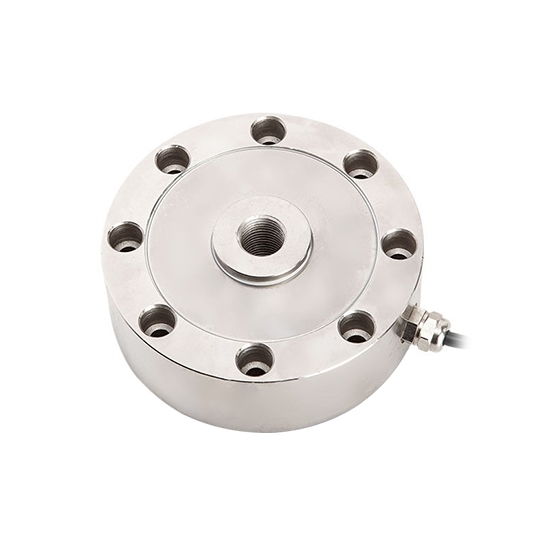

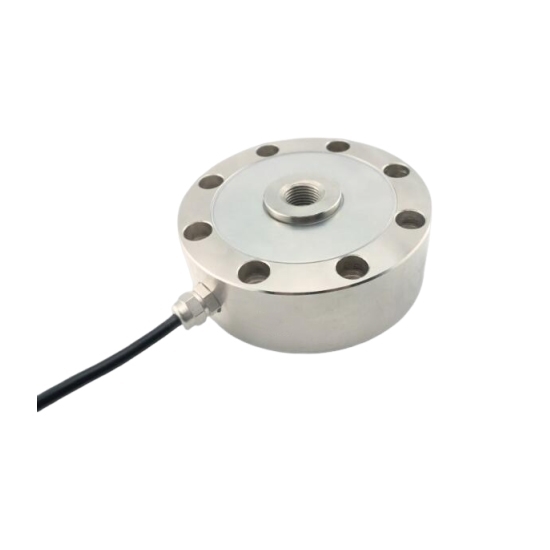

    Tension/Compression Load Cell, Low Profile, 500kg/30 ton to 100 ton

    4.9 out of 5 based on 23 reviews | Write a review
    $145.28
    Low profile load cell also known as pancake load cell, has flat design, high strength and good symmetry. Tension and compression load cell can be applied for platform scale, truck scale, rail weighbridge and material level measurement and control in warehouse, with good anti-eccentric load performance, low height, all sealed structure and complete specifications.
    *
    *
    *
    *
    *
    SKU: ATO-LC-P02
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Tension and compression load cells have capacity range from 500kg, 5 ton, 30 ton, 50 ton to 100 ton.

    Specification

    Model ATO-LCST-TJH-4B
    Shipping Weight 1.5~60kg
    Capacity Range * 500 kg~200 ton
    Matched Display Controller ATO-TY5DA3 (Click it to the controller page)
    Matched Transmitter ATO-LCTR-NTB3K (Click it to the transmitter page)
    Accuracy 0.05%F.S (linearity + hysteresis + repeatability)
    Sensitivity 2.0±0.1mV/V
    Creep ±0.05%F.S/30min
    Zero Output ±1%F.S
    Temperature Effect on Zero ±0.05%F.S/10℃
    Temperature Effect on Output ±0.05%F.S/10℃
    Operating Temperature -20℃~+65℃
    Input Impedance 380±10Ω or 750±15Ω
    Output Impedance 350±3Ω or 700±5Ω
    Insulation Resistance ≥5000MΩ
    Safety Overload 150%F.S
    Bridge Voltage (excitation voltage) DC 5~10V
    Response Time 3-4ms
    Material Alloy steel or stainless steel
    Protection Class IP67
    Cable Length 3m (＜5 ton), 6m (≥5 ton)
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White


    Feature

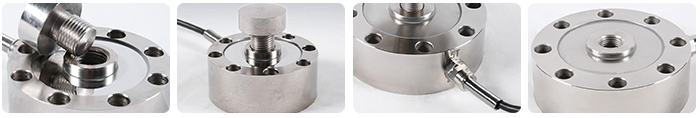

    Compression load cell low profile 200kg to 100 ton feature

    • High-Quality Alloy Steel: Ensures durability, high strength, and resistance to wear and tear for long-lasting performance.
    • High Measurement Accuracy: Offers precise and stable measurements for reliable force detection.
    • Waterproof Connector: Uses a waterproof connector to reduce mechanical shock and ensure secure, stable signal transmission.
    • Easy Installation: Designed for easy installation with convenient mounting holes and straightforward setup.
    • Wide Range of Applications: Suitable for various industrial uses, including force measurement in manufacturing, weighing, and testing systems.

    Dimension

    Capacity Dimension (mm)
    ΦA ΦB ΦC ΦF M H E
    500kg~7 ton 105 88.9 6.5 32 M16*1.5 37 34
    10~25 ton 125 101.6 8.5 39 M32*1.5 52 48
    30~50 ton 145 116.8 10.5 50 M40*1.5 58 54
    60~100 ton 205 162 12.5 80 M60*2 85 78
    200 ton 296 245 22 136 M90*3 105 100

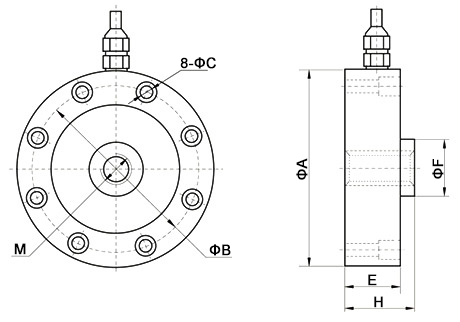

    Compression load cell low profile 200kg to 100 ton dimension

    Accessories dimension (accessories can be purchased in drop-down lists)

    Capacity Compression head dimension (mm)
    Φ L1 L M SR
    500kg~7 ton 31 13 28 M16*1.5 80
    10~25 ton 38 24 51 M32*1.5 120
    30~50 ton 50 32 62 M40*1.5 200
    60~100 ton 80 42 80 M60*2 280

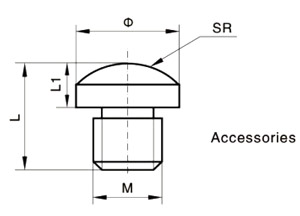

    Compression load cell low profile 200kg to 100 ton accessories dimension
    Load cell module dimension (*module needs to be purchased separately)

    Capacity Dimension (mm)
    L L1 A A1 H H1 Φ
    500kg~7 ton 160 135 115 90 100 20 11
    10~25 ton 200 160 160 125 145 25 13
    30~50 ton 240 200 180 135 175 30 17
    60~100 ton 300 260 240 200 240 35 17

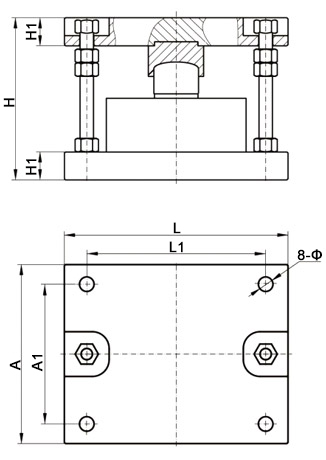

    Compression load cell module dimension

    Wiring Method

    Load cell wiring method

    Application

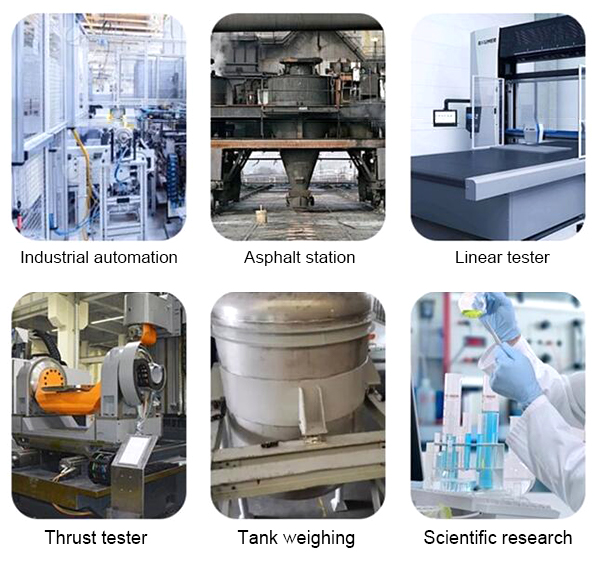

    Compression load cell low profile 200kg to 100 ton application

    Tips: What kind of maintenance does the Tension/Compression Load Cell require?

    Regular maintenance includes checking the load cell for signs of mechanical wear, corrosion, or damage. It’s important to inspect the connectors, wiring, and mounting system to ensure everything is secure. Periodic recalibration should also be done to ensure accurate measurements, especially after heavy use or exposure to extreme conditions.

    How to Choose the Right Load Cell

    Load cells are sensors used to measure the weight of an object. Their working principle is based on physical phenomena such as elastic deformation, electromagnetic force and pressure change, with high accuracy and reliability. These sensors can accurately measure the weight of an object for monitoring, control and recording. This video will help you choose the right load cell through six factors: Application, operating environment, material type and sealing technology, capacity/resolution requirements and output signal type.

    How to Make Your Load Cell Transmitter Work More Accurately

    In this video, we've shown you how to calibrate the weight transmitter Model 610 by ATO using a compression load cell so that you can make sure you get the most accurate readings possible in your measurement.



    CHB Load Cell Controller Calibration | Compensation Factor Calculation

    In this video, we will walk you through the calibration procedure of ATO's CHB series load cell controller and how to calculate the compensation factor for your specific load cell so as to improve measurement accuracy. Hope you'll find it helpful.

    How to Test for Faults in Load Cells?

    As the most essential as well as vulnerable part of an electronic weighing system, load cells might get damaged for many different reasons. How can you determine whether a load cell is at fault? This video is gonna smooth out this problem by showing you several basic field tests that can be performed on site and provides the information necessary to interpret the results.

    Cabled Tension Load Cell for Crane & Hoist Weighing Systems

    In this introduction video, we've covered what the TJL-7 is, its specifications and some of the benefits that make it unique. This crane weigher is a strain gauge based alloy steel tension load cell designed with openings at either end. It has a high accuracy (0.03-0.05 F.S.) over a large and wide measurement range from 2t to 200t. Environmentally sealed to IP67, the crane load cell can withstand up to 150% safe overload.

    Cabled Tension Load Cell for Crane & Hoist Weighing Systems

    In this introduction video, we've covered what the TJL-7 is, its specifications and some of the benefits that make it unique. This crane weigher is a strain gauge based alloy steel tension load cell designed with openings at either end. It has a high accuracy (0.03-0.05 F.S.) over a large and wide measurement range from 2t to 200t. Environmentally sealed to IP67, the crane load cell can withstand up to 150% safe overload.


    Existing reviews of Tension/Compression Load Cell, Low Profile, 500kg/30 ton to 100 ton
    Question about outer holes
    On the drawing it looks like there are counterbore holes on the outer diameter, is that correct?

    What is the depth of the counterbore?
    From: Tobias | Date: 05/03/2025
    Was this review helpful? Yes No (0/0)
    ATO Responded
    You can check the size of the hexagon socket bolt on the Internet according to the size of your hexagon socket screwdriver shown on the range comparison chart. They are similar.
    Good Quality of Tension/Compression Load Cell
    We recently purchased this Tension/Compression Load Cell, and it must be said that it is an excellent sensor! It has high precision, sturdy structure, strong durability, multifunctional design, wide applicability, easy installation and use, and impeccable performance, quality, and price. I will not hesitate to recommend it to friends who need precise measurement of tension/compression force!
    From: Amily | Date: 06/01/2025
    Was this review helpful? Yes No (0/0)
    I'm looking to use two of the 500kg pancake load cells
    Hello, I'm looking to use two of the 500kg pancake load cells. I'm wondering how conservative the stated 0.05% FS/30 min creep error value is, and I'd also like to know what the approximate deflection of the load cell is at full capacity. Thanks.
    From: Caleena | Date: 12/11/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. This creep error value is Not measurable by all load cells, and is generally Not as large as 0.05% FS/30 min.
    2. When the full scale is reached, the accuracy of the 500kg range will be better, and the repeatability of full load can generally reach 0.03.
    Load Cell
    Does the module provide a flat surface to enable loading?
    From: Rory | Date: 05/02/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The weighing module provides a concave surface to enable loading, not a flat surface.
    I am interested in larger tonnage load cell
    I am interested in your larger tonnage units as I am testing the load capabilities of a new toggle press design. The problem is the 100-ton unit is slightly too tall while the 50-ton unit is too small for the readings. The machine reaches about 90 tons theoretically so is there a way to make the unit smaller in height?
    From: amos | Date: 20/08/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    What is the maximum height that you need the sensor to fit in?
    You can refer to this load cell, which has a smaller height.
    Can the load cell operate with 12V instead of 10V?
    Can the system operate with 12 volts instead of 10 volts?
    From: irving | Date: 25/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The voltage range of our load cell supply is 5-12V DC, so 12V can also be used.
    What is the input voltage of the load cell?
    We purchased two of the load cells listed below.
    What is the purpose of the yellow wire?
    What is the input voltage?
    From: xenia | Date: 25/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The yellow wire you mentioned is a shielded wire, so you don't need to connect it.
    The input voltage of load cells is recommended to be 10V DC.
    Can you tell me what the load cell thread size is for the center large hole?
    Can you tell me what the thread size is for the center large hole?
    That hole has internal threads.
    From: yohya | Date: 24/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The load cell with a 3-ton capacity. The thread of the center hole is M16*1.5mm.
    What is yellow wire meaning of load cell?
    SKU: ATO-LC-TC01
    Hello, I bought this model and it has got 5 wires.
    red   black - green white and yellow ones.
    From the datasheet, I see that the yellow one is not mentioned
    the yellow one is thicker.
    From: patryk | Date: 19/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The yellow wire is a shielded wire, which can be grounded or left unconnected.
    The minimum reading range of the load cell
    Hi, good morning
    I have a question on this product SKU: ATO-LC-P02
    What is the minimum reading range of the 1000 kg load cell?
    And are there any other configurations available such as support where the device is placed?
    Please send all specs of this item.
    From: kalan | Date: 19/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. The minimum reading range of the 1000 kg load cell is related to the display instrument, which is about 0.1 kg.
    You can refer to our display controller: https://www.ato.com/5-digit-display-controller-for-pressure-sensor
    2. Our load cell does not provide a mounting bracket, what equipment is your load cell installed on?
    Question of 500kg load cell hole
    I'm looking at the 500kg capacity model: ATO-LCST-TJH-4B load cell. My goal is to figure out if the hole in the middle goes all the way through or only goes through most of the way.
    I'm getting my info about it from this link:
    https://www.ato.com/compression-load-cell-low-profile-200kg-to-100-ton?affiliate=shopping
    From: gaylen | Date: 18/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, the 500kg capacity model: ATO-LCST-TJH-4B load cell has a threaded screw hole M16*1.5 in the middle.
    This hole is through.
    How to solve the problem of load cell?
    I'd really appreciate more help here.
    I've followed all the steps shown in the video, applied a weight of 1188 kg (between 5-10% of the 20-ton capacity), and am now getting error 2, see the attached video.
    What should I do? If you can have someone call me and do this live with me that would be best.
    From: gene | Date: 17/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    We think that error 2 is due to the light weight of the calibration.
    Since your load cell is 20 tons, we recommend that you use the coefficient calibration method instead.
    In this case, you only need a calibration weight of 500 kg.
    For the specific operation method, please refer to the operation video: https://we.tl/t-qHexRzmtGh
    Can you help us get past this load cell error?
    We've already tried to follow that video step by step but are running into the following issue at 3:50-4:20 in the video.
    When we try calibrating the weight, we get a message that says error 1.
    We're calibrating using a 0.5 kg weight.
    Can you help us get past this error?
    From: benson | Date: 10/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Your load cell capacity is 20 tons, so your calibration weight of 0.5kg is incorrect.
    As we mentioned before, you're going to use 5%- 10% of the 20-ton capacity for the calibration.
    Also, please pay attention to setting the display unit.
    Could you tell me the information about the true zero output and the total measurement error?
    We received the first 4 load cells from our order this week. Unfortunately, we are missing the calibration sheet. Could you tell me the information about the true zero output and the total measurement error?
    From: reilley | Date: 03/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Unfortunately, we do Not provide calibration sheets.
    1. You can measure the output of load cells using a multimeter with an mv file.
    2. If the sensor is powered by 5-15V DC, we recommend 10V dc power supply.
    Note: Please do not use it beyond the range, the definition of wiring is on the certificate. If you encounter any problems during the test, you can contact us at any time.
    Load cell not having a zero mV at zero load
    i have received the ATO-LC-P02 (5000kg range) and the load cell mV output with zero load is never zero instead it starts at ~35mV range. I have measure the resistances as follow: e /e-=396ohm; e /s-=298ohm; e /s =295ohm; e-/s- 295ohm; e-/s = 298; s-/s =352ohm. The load cell seem to have a linear behavour. we have send it to the calibration lab and it seems the sensitivity isnt matching 2mV/V. The calibration lab has not reported the zero issue, but they have reported the following values; 12.4VDC voltage, 1000kg-2.145mV, 2000Kg-4.263mV; 3000Kg-6.289mV; 4000Kg-8.315mV; 5000kg-10.412kg. If you could please advise on what the issue could be.
    From: Diogo | Date: 13/01/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Determine the zero output and power supply.
    2. From this data, the sensor is linear. If the power supply is 5.4v, the output is just right.
    Questions about your load cell
    For your ATO-LC-P02 load cell, 100 ton capacity:
    How much is the minimum measurable load?
    What is the measurement increment?
    From: Jone | Date: 21/12/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The minimum measurement is 0.01t, and the minimum increment is also 0.01t.
    Working environment of load cell
    Hello, I would like to know if your tension/compression load cell ATO-LC-P02 works at 5Vdc excitation. I would like to use this load cell with iron NX-RS1201 load cell input.
    From: Jmbs | Date: 15/12/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, our load cell excitation voltage is 5-15VDC, and its output is about +/-25mV. So in order to get an analog output signal, you will need to use a transmitter.
    Displacement of 500kg/30 tons to 100 tons load cell
    SKU: ATO-LC-P02
    Capacity: 5 tons.
    Yes, I understand that, but I’m asking what the displacement (amount of movement from its original position) that the load cell experiences under maximum load.
    From: Docdra | Date: 27/08/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The displacement that the load cell experiences under maximum load will be approx 0.3mm for 5 ton capacity.
    Tension/compression load cell usage
    Hello, I would like know if your tension/compression load cell ATO-LC-P02 works at 5Vdc excitation. I would like use this load cell with omron NX-RS1201 load cell input.
    From: Margaretha | Date: 31/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, our load cell excitation voltage is 5-15VDC, and its output is about +/-25mV. So in order to get analog output signal, you will be needing to use transmitter.
    Shock loads causing drift
    Is there any knowledge of how much sudden shock loads cause drift in the load cell measurements?
    From: Matthew | Date: 20/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Temperature and overload will affect, every 10 degrees of temperature change, a change of ±0.05%, more than 150% of the range, will also change.
    Question about deflection
    What would the deflection of this load cell be at highest load rating for the 5 ton variant?
    From: Matthew | Date: 29/04/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The deflection under the highest rated load of the load cell is about 0.3 mm.
    Question about load cell
    I'm wondering if your load cell is affected by magnetic fields?
    From: Cory Salvesen | Date: 01/04/2019
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, the output voltage signal of the Load Cell will be affected by the magnetic field, it is propotional to strength of the magnetic field.
    10 ton load cell for universal testing machine
    I customized one 10 ton load cell which is used for the universal testing machine. After the customer service staff patiently explained, I understood the resistance also needed to be customized. Now I receive my load cell and can use it directly after finishing connection! The load cell accuracy is very good, load cell is very good, and the after-sales is also very good!
    From: Cameron | Date: 20/12/2018
    Was this review helpful? Yes No (0/0)
    Load more reviews...
    Write your review for Tension/Compression Load Cell, Low Profile, 500kg/30 ton to 100 ton
    • Only registered users can write reviews
    • Bad
    • Excellent
    Related products
    Compression Load Cell, Column type, 15 ton/30 ton/50 ton to 200 ton

    Compression Load Cell, Column type, 15 ton/30 ton/50 ton to 200 ton

    $263.17
    SKU: ATO-LC-C01
    Column type load cell undertake special surface spraying and seal processing, can be used in harsh environment for a long time. Compression load cell can be applied for large platform scale, truck scale, rail weighbridge, and special for engineering force testing, overload safety testing and impact force measurement and control.
    Compression Load Cell, 300kg/1000kg/25 ton/50 ton to 100 ton

    Compression Load Cell, 300kg/1000kg/25 ton/50 ton to 100 ton

    $116.78
    SKU: ATO-LC-P01
    Compression load cell is special designed for weight measurement, with good anti-eccentric load performance, low height, all sealed, complete specifications, Load cell can be applied for platform scale, truck scale, rail weighbridge and material level measurement and control in warehouse.
    5 Digit Display Controller for Load Cells

    5 Digit Display Controller for Load Cells

    $210.80
    SKU: ATO-DPM-LC5D
    Digital panel meter can cooperate with load cells, force sensors and weighing sensors, two outputs for data comparison, digital panel meter can display gross, net, peak and valley value alternately.
    Load Cell Junction Box for Scales, 2/3/4/6/8/10 Inlets to 1 Outlet

    Load Cell Junction Box for Scales, 2/3/4/6/8/10 Inlets to 1 Outlet

    $66.67
    SKU: ATO-LCBOX-10I
    Multi-channel load cell junction box has 2/3/4/6/8/10 inlets and 1 outlet, aluminum alloy casing, good anti-interference, special for waterproof sealing joint, waterproof and dustproof rubber gasket for cover, easy to assemble and debug. Each channel can be adjusted balance to prevent damage to the sensor caused by inductive lightning and surge signals.
    Customers who bought this item also bought
    5 Digit Display Controller for Load Cells

    5 Digit Display Controller for Load Cells

    $210.80
    SKU: ATO-DPM-LC5D
    Digital panel meter can cooperate with load cells, force sensors and weighing sensors, two outputs for data comparison, digital panel meter can display gross, net, peak and valley value alternately.
    Digital Load Cell Amplifier, Output 4-20mA/0-10V/RS485

    Digital Load Cell Amplifier, Output 4-20mA/0-10V/RS485

    $109.85
    SKU: ATO-LCTR-OAR
    High precision load cell amplifier has a 6 digit LED display, output signal 4-20mA/ 0-5V/ 0-10V/ RS485. There are 3 keys for parameter settings. Digital load cell amplifier can be calibrated on-line by its 3 keys. The setting parameters include zero, capacity, communication rate, division value, decimal digits, etc.
    Load Cell Junction Box for Scales, 2/3/4/6/8/10 Inlets to 1 Outlet

    Load Cell Junction Box for Scales, 2/3/4/6/8/10 Inlets to 1 Outlet

    $66.67
    SKU: ATO-LCBOX-10I
    Multi-channel load cell junction box has 2/3/4/6/8/10 inlets and 1 outlet, aluminum alloy casing, good anti-interference, special for waterproof sealing joint, waterproof and dustproof rubber gasket for cover, easy to assemble and debug. Each channel can be adjusted balance to prevent damage to the sensor caused by inductive lightning and surge signals.
    Load Cell Transmitter, Output 0-5V/0-10V/4-20mA

    Load Cell Transmitter, Output 0-5V/0-10V/4-20mA

    $81.27
    SKU: ATO-LCTR-OA
    Load cell transmitter is made of aluminum alloy, output standard signal 0-5V/0-10V/4-20mA, has linear compensation, humidity compensation, external zero debugging, external span debugging, input overload protection and output short circuit protection functions.
    Thermocouple, T type, Sheath

    Thermocouple, T type, Sheath

    $49.23
    SKU: ATO-TC-TS
    T type thermocouple has the highest accuracy and lowest price in base metals. Sheath thermocouple have shielded thermocouple wire of common length 500mm and sheath diameter Ф3~Φ8mm, with flexibility, high pressure resistant, fast thermal response time and long operating life. T type thermocouple can directly measure the temperature of liquid, vapor, gas medium and solid surface in the range of -200~+350 ℃ in various production processes.
    Information
    Customer service
    Resource
    Contact ATO
    • +1 800-585-1519 (Toll-free)
    • Global Shipping
    Safe Shopping
    • Safe Shopping on ATO
    Copyright © 2025 ATO.com. All rights reserved.
