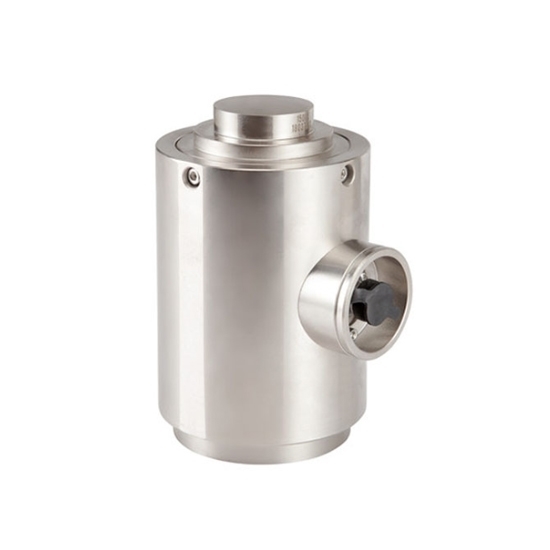

Compression Load Cell, Column type, 15 ton/30 ton/50 ton to 200 ton

Overview
PDF Catalog
Related Video

After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Compression load cells have capacity range from 15 ton, 20 ton, 30 ton, 50 ton, 100 ton to 200 ton. Load cell capacity can be customized according to customer requirements.

Specification

Model	ATO-LCCT-TJH-3
Shipping Weight	7.4~33.8kg
Capacity Range *	20 ton~200 ton
Matched Display Controller	ATO-TY5DA3 (Click it to the controller page)
Matched Transmitter	ATO-LCTR-NTB3K (Click it to the transmitter page)
Accuracy	0.05~0.1%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.05%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.03%F.S/10℃
Temperature Effect on Output	±0.03%F.S/10℃
Operating Temperature	-20℃~+65℃
Input Impedance	380±10Ω
Output Impedance	350±3Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 10V
Material	Alloy steel
Protection Class	IP67
Cable Length	6m for capacity ≥ 5 ton, with aviation plug 3m for capacity < 5 ton, with aviation plug
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

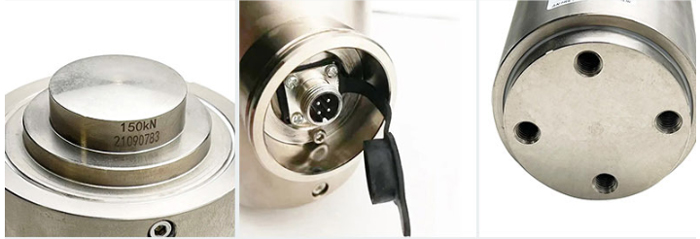

Compression load cell column type 200kg to 100 ton feature

42CrMo Alloy Material: Column structure, strong resistance to machine fatigue, large load capacity, widely used in industries such as pharmaceuticals, metallurgy, automotive, railway, warehouse, and material handling equipment.
High Measurement Accuracy: Stable output, reliable signal transmission, strong anti-jamming capability, ensuring high accuracy.
Fine Workmanship: Advanced grinding technology, flat design, easy installation, smooth and precise construction for efficient setup.

Dimension

Capacity	Dimension (mm)
Capacity	ΦA	ΦB	ΦC	ΦD	H	E	M	SR (radian)
15~30 ton	86	73.5	56	40	140	129	10	200
40~60ton	100	87	68	80	150	133	12	350
100 ton	107	91	68	80	150	156	16	500
150~200 ton	158	139	100	120	220	201	16	1000

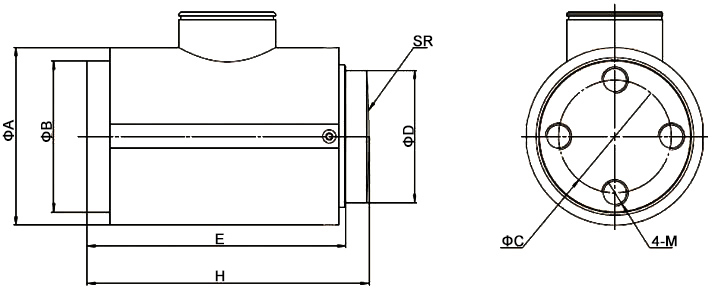

Compression load cell column type 15 ton to 200 ton dimension

Wiring Method

Load cell wiring method

Tips: Load cell working principle

Load cell is actually a kind of device to transform the weight signal into the measurable electrical output signal. At present, the commenly used load cell is the resistance strain load cell, which utilizes the principle that the resistance modifies accordingly when the strain gauge deforms. Load cell is mainly constituted by four parts, which are respectively the elastic component, strain gauge, measuring circuit and transmission cable.

Download ATO load cell catalog (pdf).

Causes and Solutions for Load Cell Drift

In this video, we discuss several common causes of load cell drift and share with you some possible solutions. After watching it, you may find it helpful to ensure the accuracy of your load cells and weighing systems.

Weighing Monitoring System

In this video, you are introduced to a weighing monitoring system using PLC, HMI and load cell.

How to Make Your Load Cell Transmitter Work More Accurately

In this video, we've shown you how to calibrate the weight transmitter Model 610 by ATO using a compression load cell so that you can make sure you get the most accurate readings possible in your measurement.

CHB Load Cell Controller Calibration | Compensation Factor Calculation

In this video, we will walk you through the calibration procedure of ATO's CHB series load cell controller and how to calculate the compensation factor for your specific load cell so as to improve measurement accuracy. Hope you'll find it helpful.

How to Test for Faults in Load Cells?

As the most essential as well as vulnerable part of an electronic weighing system, load cells might get damaged for many different reasons. How can you determine whether a load cell is at fault? This video is gonna smooth out this problem by showing you several basic field tests that can be performed on site and provides the information necessary to interpret the results.

Load Cell Transmitter with Output 0-5V/0-10V/4-20mA/0-20mA

This intro video describes the features of ATO-DY510 load cell transmitter as well as its specifications. Housed in aluminum alloy case and CE-certified, the transmitter can connect to single or up tp 4 load cells at built-in excitation voltage from 5V to 15V DC. Powered from 18-30V DC supplies, this high precision weight transmitter can accept a 0-20mV full scale input range and convert the low strength signal into a 0-5V/0-10V/4-20mA/0-20mA output.

Strain Gauge Load Cell, S Type

In this video, ATO offers a variety of load cells and weigh modules designed for your applications.

Existing reviews of Compression Load Cell, Column type, 15 ton/30 ton/50 ton to 200 ton

MY ORDER

I have experienced the purchase from ATO , as they have supplied me with 100 ton tensile load cell with a digital display controller , they also made the wiring and connecting as per my request and being received 100% as per my request and it is now in service since a year with no problems.

From: Firas | Date: 14/12/2022

Was this review helpful? Yes No (0/0)

Compression load cell can be calibrated

Do you sell reference load cells wit 50 ton and 200 ton caapcities, to be used in calibrating testing machines ISO grade 1 or better?

From: Angelo | Date: 07/06/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, we can provide reference load cell with 50 ton and 200 ton capacities as requested. But the quality standard of these two load cells sensors is ISO9001/2015.

High quality compression load cell

Can you provide a load cell with 1kg capacity, and can measure even 1g?

From: Alcantar | Date: 06/06/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, we can provide.

Applicable frequency of compression load cell

For your compression load cell dislay controller, does it work for 50Hz supply only?

From: Johnny | Date: 19/04/2021

Was this review helpful? Yes No (0/0)

ATO Responded

No, it works for 50Hz as well as 60Hz.
