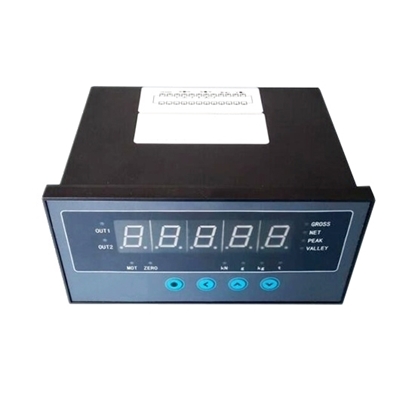

5 Digit Load Cell Display Controller, 2 Realy Output

5 out of 5 based on 1 reviews | Write a review

$120.66

5 digit display controller is specially designed for load cell and weighing sensors. This digital panel meter provides 100V~240V AC power supply, 1~4 channels of ±20mV signal input and 2 way relay signal output, suitable for weight control, auto accumulation/mean for up/down batch control, etc. 4 measurement units of N, kN, kg, and T can be switched.

SKU: ATO-DPM-TY5DA3

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
User Manual
Related Video

Buy a 5 digit display controller for load cell sensors. It is a digital panel meter with 100V~240V AC power supply, 1~4 channels of ±20mV signal input, 2-way relay signal output, and 4 measurement switching units ( N, kN, kg, and T).

Features:

5 Digital load cell display controller offers high precision and stable performance, with easy operation, making it suitable for various applications.
This load cell digital panel meter features a dual LED display, supports 1-4 load cell signal inputs, has peak and valley hold functions, and has zero-clearing capability, making it ideal for automated batch control.

Specifications

Model: ATO-TY5DA3
Power Supply: 100-240V AC (Default) or 24V DC (Contact Us)
Working Environment: 0~50℃ 90% R.H without Dew
Digital Display: 5 Red LED Display
Indication Range: -19999~99999, Overload Display O.L
Display Scale Division: 1, 2, 5
Weighing Functions: Zero, Zero Tracking, Auto-Zero at Power
Excitation: 5V, 200mA
Input Signal: ±20mV
Sampling Rate: 10 times/sec
Dimension: 160x80x125mm
Function: 2 Ways Relay

Suitable Load Cells

SKU	Capacity Range
ATO-LC-S01	5 kg~20 ton
ATO-LC-S05	100 kg~20 ton
ATO-LC-TC03	300 kg~30 ton
ATO-LC-TC04	2 ton~100 ton
ATO-LC-TC05	10 ton~200 ton
ATO-LC-C01	20 ton~200 ton
ATO-LC-P01	300kg~100 ton
ATO-LC-P02	500 kg~200 ton
ATO-LC-B02	200 kg~10 ton
ATO-LC-SB01	10 ton~50 ton
ATO-LC-SB02	1 ton~30 ton

Tips: Why does the load cell need a 5-digit display controller?

High Precision: A 5-digit display provides accurate readings, capturing even small variations in weight or force.
Wide Measurement Range: It accommodates larger values while maintaining detail and accuracy across different applications.
Increased Resolution: The higher resolution allows for finer increments, ensuring more detailed and precise measurements.

TY5DA3 Load Cell Display Controller User Manual

CHB Load Cell Controller Calibration | Compensation Factor Calculation

In this video, we will walk you through the calibration procedure of ATO's CHB series load cell controller and how to calculate the compensation factor for your specific load cell so as to improve measurement accuracy. Hope you'll find it helpful.

Existing reviews of 5 Digit Load Cell Display Controller, 2 Realy Output

Controller Output

This 5-digit load cell display controller, are the outputs of its two relays 220V or 110V?

From: Quimby | Date: 29/10/2025

Was this review helpful? Yes No (0/0)

ATO Responded

This model: ATO-TY5DA3, operates within a voltage range of 100-240V AC (default), therefore both 110V and 220V can be used. Please feel free to contact us if you have any further questions.
