    Shear Beam Load Cell for Rail Weighbridge/Truck Scale, 10/20/30/50 ton

    Shear Beam Load Cell for Rail Weighbridge/Truck Scale, 10/20/30/50 ton

    5 out of 5 based on 1 reviews | Write a review
    $489.42

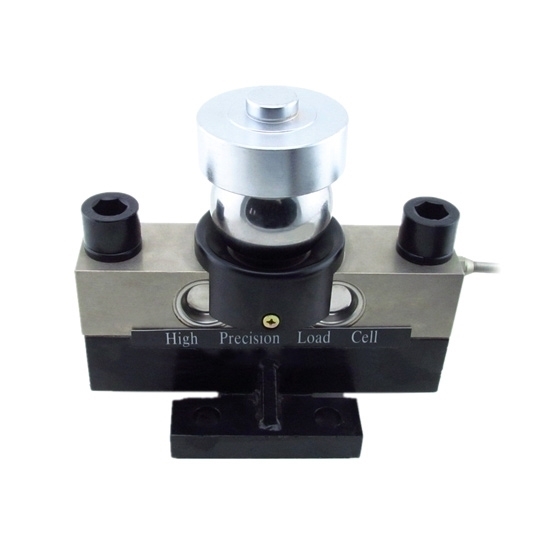

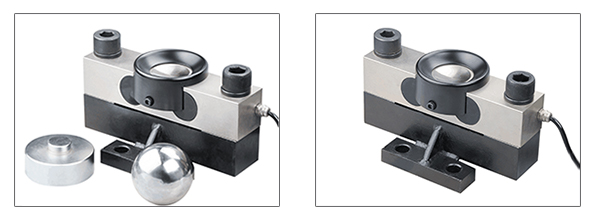

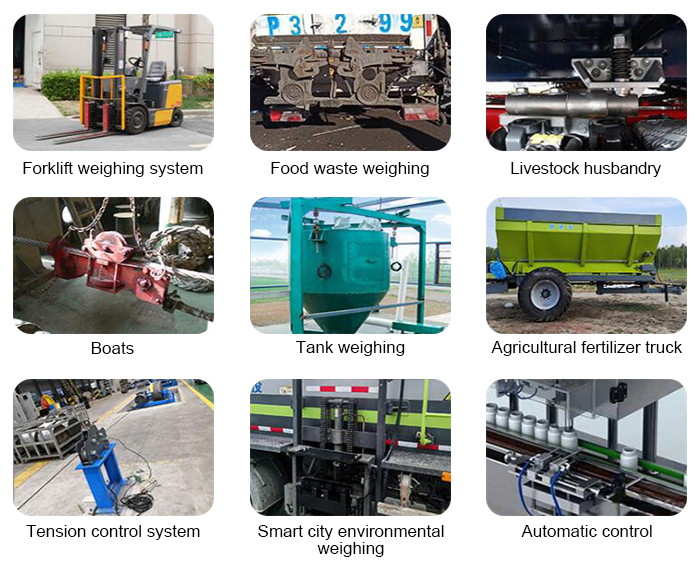

    Shear beam load cell has a combined indenter for automatic resetting and self-aligning, with strong anti-eccentric load capability and easy installation. Shear beam load cell is suitable for rail weighbridge, truck scale and various electronic scales.
    *
    SKU: ATO-LC-SB01
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Shear beam load cells have capacity range from 10 ton, 20 ton, 30 ton to 50 ton. Load cell capacity can be customized according to customer requirements.
    After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a load cell transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V,0~±10V, 4-20mA, or 0-20mA.

    Specification:

    Model ATO-LCB-TJH-6A
    Shipping weight 18.5~33.1kg
    Capacity range * 10 ton~50 ton
    Accuracy 0.02~0.05%F.S (linearity + hysteresis + repeatability)
    Sensitivity 2.0±0.1mV/V
    Creep ±0.02%F.S/30min
    Zero output ±1%F.S
    Temperature effect on zero ±0.02%F.S/10℃
    Temperature effect on output ±0.02%F.S/10℃
    Operating temperature -20℃~+65℃
    Input impedance 750±15Ω
    Output impedance 700±5Ω
    Insulation resistance ≥5000MΩ
    Safety overload 150%F.S
    Bridge voltage (excitation voltage) DC 10V
    Material Alloy steel
    Protection class IP67
    Cable length 3m (＜5 ton), 6m (≥5 ton)
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

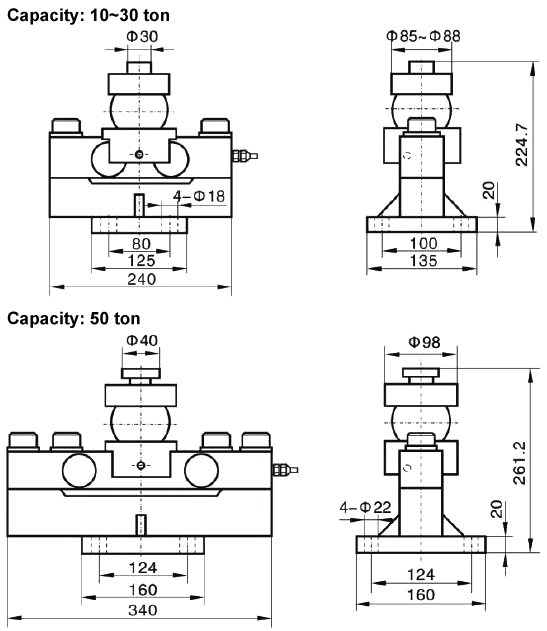

    Shear beam load cell dimensional drawing (unit: mm):
