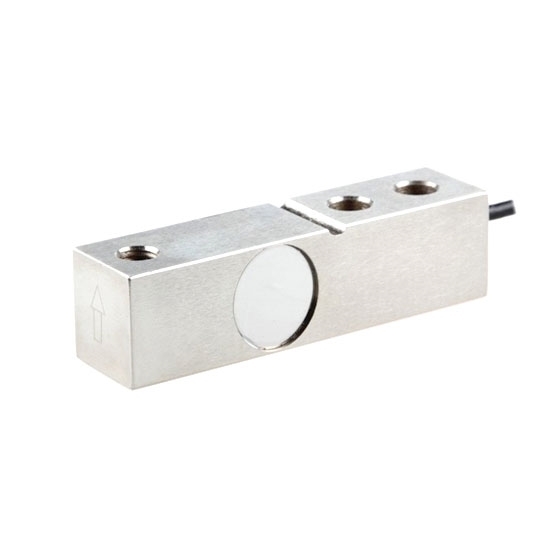

    Beam Load Cell, 200kg/500kg/1000kg/3 ton/5 ton to 10 ton

    5 out of 5 based on 2 reviews | Write a review
    $119.96
    Cantilever beam load cell has two ends, one end for fixing, one end for loading, with sealed well, high accuracy, easy to install, easy to use, good interchangeability. It can bear both tension and pressure, and has good automatic self-aligning performance after force. Load cell can be applied for ultrathin electronic truck scale, platform scales, hopper weigher and other weighing instruments.
    *
    SKU: ATO-LC-B02
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Cantilever beam load cells have capacity range from 200kg, 500kg, 1000kg, 3 ton, 5 ton to 10 ton. Load cell capacity can be customized according to customer requirements.

    Specification

    Model ATO-LCB-TJH-5B
    Shipping Weight 1.1~5kg
    Capacity Range * 200 kg~10 ton
    Matched Display Controller ATO-TY5DA3 (Click it to the controller page)
    Matched Transmitter ATO-LCTR-NTB3K (Click it to the transmitter page)
    Accuracy 0.02%F.S (linearity + hysteresis + repeatability)
    Sensitivity 2.0±0.1mV/V
    Creep ±0.02%F.S/30min
    Zero Output ±1%F.S
    Temperature Effect on Zero ±0.02%F.S/10℃
    Temperature Effect on Output ±0.02%F.S/10℃
    Operating Temperature -20℃~+65℃
    Input Impedance 380±10Ω
    Output Impedance 350±3Ω
    Insulation Resistance ≥5000MΩ
    Safety Overload 150%F.S
    Bridge Voltage (excitation voltage) DC 10V
    Material Alloy steel or stainless steel
    Protection Class IP67
    Cable Length 3m (<5 ton), 6m (≥5 ton)
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White


    Feature

    • Easy Installation: Designed with one fixed end and one loaded end for simple, quick setup.
    • Low Center of Gravity: Enhances stability and ensures accurate measurements.
    • Versatile & Interchangeable: High compatibility, suitable for various systems with excellent interchangeability.
    • Wide Application: Ideal for vehicle scales, electronic scales, platform scales, hopper scales, and more.
    • Durable & Reliable: Strong construction for heavy load capacity, ensuring long-lasting, dependable performance in industrial settings.

    Dimension

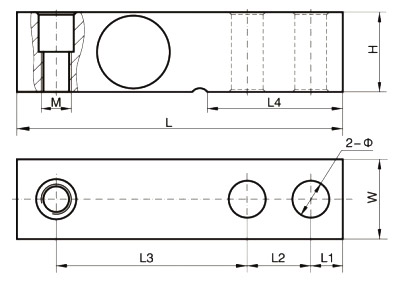

    Shear beam load cell 50kg to 20 ton dimension

    Capacity Dimension (mm)
    L L1 L2 L3 L4 H Φ M W
    200kg~2.5 ton 130 15.8 25.4 76.2 54 31.8 12.7 M12 (<1 1000kg)
    M16 (≥1 1000kg)
    31.8
    3~5 ton 171 19.1 38.1 95.3 80 38.1 20 M18*1.5 38.1
    10ton 222.5 25.4 50.8 123.8 110 50.8 26 M24*2 50.8


    Application

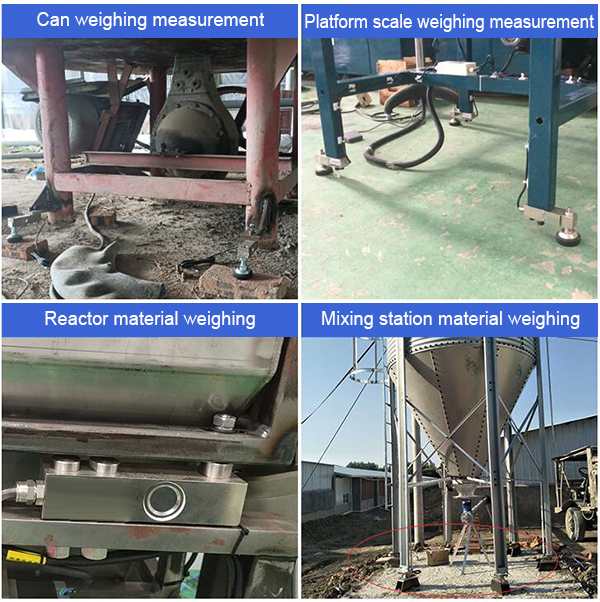

    Beam load cell application

    Tips: Can I use Cantilever Beam Load Cells for weighing liquids or gases?

    While Cantilever Beam Load Cells are ideal for solid objects, they can also be used for measuring forces associated with liquid or gas containers, such as pressure or weight in tanks, provided they are part of the structure supporting the container.

    Shear Beam Load Cell | Single & Double-Ended, Weighbridge Load Cells
    The shear beam load cell is a common load cell. Its working principle is based on the deformation of the elastomer when it is acted upon by an external force. This deformation will cause the resistance of the elastomer to change, thereby achieving the measurement of the external force. It is typically used to measure forces in the small to medium range and its working principle is based on the shear effect of elastically deforming materials. This type of force measuring element is usually made of metal or polymer materials. Because of its high elastic modulus and shear modulus, it can produce stable shear deformation when subjected to external forces.

    Existing reviews of Beam Load Cell, 200kg/500kg/1000kg/3 ton/5 ton to 10 ton
    Use of load cell
    This is a torque cell, so it has both positive and negative torque. We are using the load cell amplifier. But the analog output (0-10V) of the amplifier is only positive. Instead, we also need output when the torque is negative. How do we do that?
    From: Amenah | Date: 14/09/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    For positive and negative display, you only need to exchange the two signal cables SIG+/SIG-, when the reaction torque sensor is connected to the digital load cell amplifier.
    multiple load cells
    Can we connect multiple load cells with capacity 500kg to one digital display controller?
    From: Thomas | Date: 08/04/2020
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, the digital display controller can be connected to multiple load cells by using the load cell junction box ATO-LCBOX-10I, which has optional 2-10 inlets and 1 outlet.
