4 Digit Display Controller for Load Cells

5 out of 5 based on 1 reviews | Write a review

$244.60

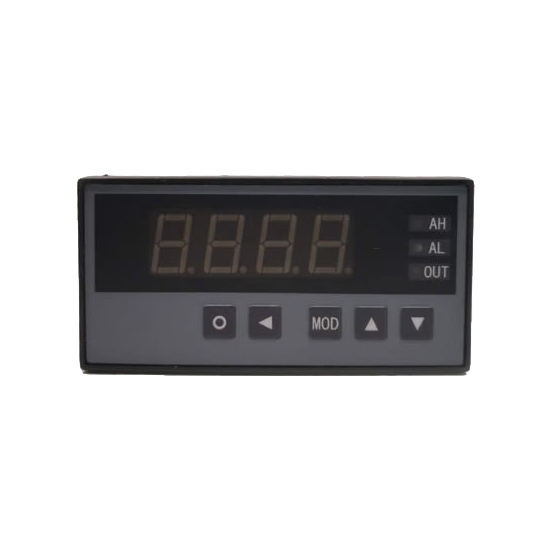

Low price 4-digit display controller, with 100-240V AC voltage, is an electronic device designed to interface with various sensors, particularly load cells, for precise measurement and digital readouts. This compact digital panel meter typically incorporates a microcontroller and a 4-digit LCD display, optional analog output of 4-20mA, 0-10mA, 0-20mA, 1-5V and 0-5V.

Input Signal *
Output Signal *
External Power Supply *
Communication Port *
Power Supply *
Number of Alarm Output *

SKU: ATO-DDC-CHB2

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

The primary function of the 4 digital display controller is to process analog signals from load cells, converting them into digital readings for easy interpretation. These controllers are often employed in weighing systems, industrial applications, or any scenario where accurate measurement of weight or force is essential.

Specification

Model		ATO-CHB2-160x80
PDF Download		4 Digit Display Controller User Manual
Voltage	AC Power	100-240V AC 50/60 Hz
Voltage	AC/DC Power	10-24V AC 50/60 Hz, 10-24V DC
Consumption Power	AC Power	Below 7VA
Consumption Power	AC/DC Power	AC: Below6VA, DC: Below 5W
Allowable Voltage Variation Range		90~110% of Power Supply Voltage
Insulation Resistance		100MΩ or More (500V DC MEGA Standard)
Withstand Voltage		1 Minute at 2000V AC 50/60 Hz
Anti-Interference		IEC61000-4-2 (electrostatic discharge), level III IEC61000-4-4 (Electrical Fast Transient Burst), Level III IEC61000-4-5 (Surge), level III
Protection Grade		IP65 (Front Part of the Digital Panel Meter)
Ambient Temperature		10~55℃, Storage: -25~65℃
Environmental Humidity		35~85%RH, Storage: 35~85%RH
Dimension		160x80x125mm
Measurement Control Speed		More Than 10 times/second
Basic Error		±0.2%F.S
Display Range		-1999~9999
Input Signal	Voltage V	0-5V DC, 1-5V DC
	Current I	4-20/0-10/0-20 mA
	mV M	±20, ±50, ±90mV
Digital Filtering		Inertia, Average, Moving Average, etc.
Contact Output	A1-A4	1-4 points, 250VAC/3A Resistive Load
Contact Input	K	1 External Binary Input for Clearing
Analog Output (Resolution 1/3000)	M1	Current Output: 4-20mA, 0-10mA, 0-20mA
Analog Output (Resolution 1/3000)	M2	Voltage Output: 1-5V, 0-5V
Communication Interface	C1	TC ASCⅡ Protocol RS232
	C2	TC ASCⅡ Protocol RS485
	R1	Modbus-RTU Protocol RS232
	R2	Modbus-RTU Protocol RS485
External Power Supply	P1	24V±5%, Below 50mA
	P1G	24V±5%, Below 100mA
	P2	12V±5%, Below 50mA
	P2G	12V±5%, Below 100mA
	P3	Precision Power Supply, 10V±2%, Below 30ppm, 100mA

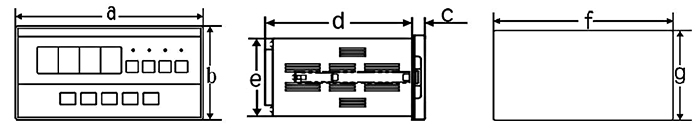

Dimension (Unit: mm)

4 digit display controller dimension

a	b	c	d	e	f	g
160	80	10	115	75	152	76

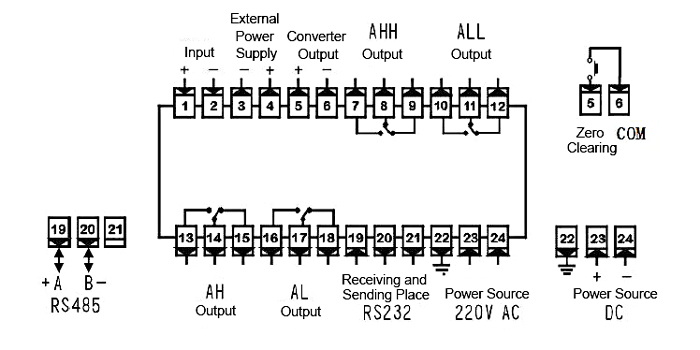

Wiring Diagram

4 digit display controller wiring

Tips: 4 digit display controller for load cells

A 4 digit display controller serves as a vital interface between load cells and users. It interprets the signals received from load cells, which measure force or weight, and presents this data in a user-friendly numerical format on a 4 digit display. Load cells convert mechanical force into electrical signals, but these signals require interpretation for meaningful human understanding.

The controller processes the analog signals from load cells, performs necessary conversions, and then showcases the resultant weight or force measurement on the digital display. It enhances usability by enabling users to conveniently read and interpret the weight or force values captured by the load cells. Additionally, such controllers often include features like calibration options, signal filtering, and display settings, ensuring accurate and calibrated readings for various applications, such as industrial scales, laboratory equipment, or other systems where precise weight measurement is critical.

This digital panel meter can provide accurate readings for load cells, force sensors and weighing sensors, suitable for measuring pressure, impact force, tension and weight.

This video shows the connection and setting of the digital display controller with S type load cell.

CHB Load Cell Controller Calibration | Compensation Factor Calculation

In this video, we will walk you through the calibration procedure of ATO's CHB series load cell controller and how to calculate the compensation factor for your specific load cell so as to improve measurement accuracy. Hope you'll find it helpful.

Load Cell Controller Setup and Calibration

In this video, we select an S-type load cell and a 2kg standard weight to complete the setup and calibration. Finally, ATO also shows you how to set the tare value and measure the tare weight.

Digital Load Cell Display Controller

This is an intro video on ATO-CHB load cell display controller. It can display 5 digit readouts from -19999~99999 counts on its LED screen. Equipped with 4 buttons on the front panel, the indicator can work with load cells or force sensors for real-time logging, interlock, and alarming. Besides, it can produce two outputs for data comparison and it has a peak hold and valley function as well as net and gross weight display. It can handle an input range of 0 to ±25mV with 10V excitational power supply. In addition, there are 2 relay output alarms integrated in the indicator.
