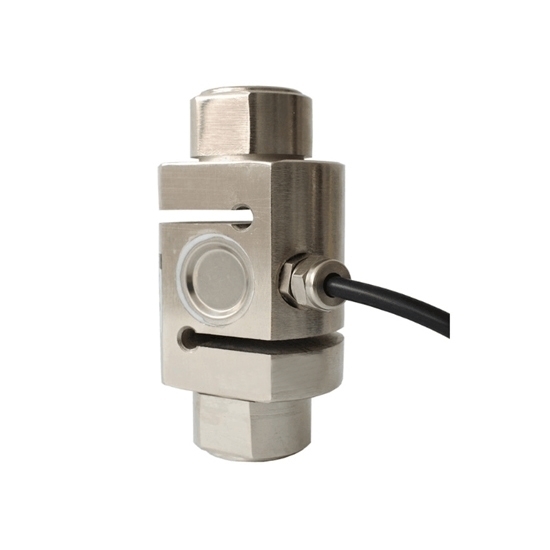

    Tension and Compression Load Cell, 100kg/2 ton to 20 ton

    5 out of 5 based on 5 reviews | Write a review
    $104.29
    Tension and compression load cell can bear both tension and pressure, with good output symmetry, high eccentric load resistant, compact structure and complete specifications. Strain gauge load cell can be applied for batching scale, crane scales and other special weighing instruments.
    *
    SKU: ATO-LC-S05
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Tension and compression load cells have capacity range from 100kg, 500kg, 1000kg, 2 ton to 20 ton. Load cell capacity can be customized according to customer requirements.
    After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

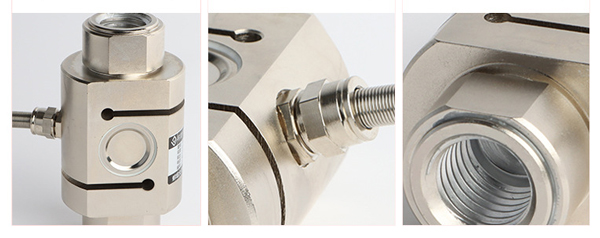

    Hermetically sealed to IP67, the robust construction perfectly safeguards the load cell from almost any damage emerging in harsh environments. The compact design plus the integral cable provide maximum convenience for installation even in restricted space.



    Specification:

    Model ATO-LCS-TJL-4
    Shipping weight 1~5kg
    Capacity range * 100 kg~20 ton
    Accuracy 0.05%F.S (linearity + hysteresis + repeatability)
    Sensitivity 2.0±0.1mV/V
    Creep ±0.05%F.S/30min
    Zero output ±1%F.S
    Temperature effect on zero ±0.05%F.S/10℃
    Temperature effect on output ±0.05%F.S/10℃
    Operating temperature -20℃~+65℃
    Input impedance 380±10Ω
    Output impedance 350±3Ω
    Insulation resistance ≥5000MΩ
    Safety overload 150%F.S
    Bridge voltage (excitation voltage) DC 10V
    Material Alloy steel or stainless steel
    Protection class IP67
    Cable length 2m (<5ton), 5m (≥5ton)
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

    Dimension:

    Capacity Dimension (mm)
    A H ΦB Φ M C
    100~500kg 88 58 28 44 M16*1.5 26
    700kg 88 58 32 44 M16*1.5 30
    1~5 ton 120 68 51 63 M22*2.5 48
    7~15 ton 138 94 60 76 M30*3.5 56
    20 ton 156 108 68.5 88 M36*3 76

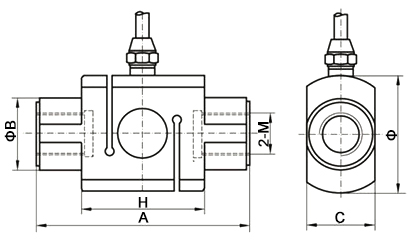

    Tension and compression load cell 100kg to 20 ton dimension
    Tips: How to detect load cell with a multimeter?
    First of all, measure the resistance values of load cell input terminal and output terminal, compare with the resistance values marked on the product. If the measured values exceed the standard range, it means that the load cell has problems. At present, there are two resistance values of the common load cell: one is low resistance, in which, the input terminal is 400Ω±20Ω and the output terminal is 350Ω±5Ω; the other is high resistance, in which, the input terminal is 800Ω±20Ω and the output terminal is 700Ω±5Ω. Moreover, measure the output signal of the load cell. Choose the mV voltage option of digital multimeter, input DC 10V at load cell input terminal, and then measure the output voltage of the load cell. The voltage value = 10V * load cell sensitivity * force value / range value. If the measured value is big different from the computed value, it means that the sensor has been damaged.

    Existing reviews of Tension and Compression Load Cell, 100kg/2 ton to 20 ton
    I am interested in the ATO-LC-S05 rated for 3 Ton.
    I see that this is threaded for an M22 hole. Wondering if the cell can be modified to an M30 thread without damaging the cell.
    From: James | Date: 02/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Customization is acceptable, and the length of the ATO-LC-S05 sensor with a capacity of 3 tons needs to be lengthened, and the MOQ must be more than 2 to be customized. We can quote only if you can accept it.
    High sensitivity! Perfect load cell!
    I bought it for my workshop and installed last night. very nice accessory. After debugging and testing, it works very well, and the sensitivity is very high. Perfect tension and compression load cell! If I need more, I would buy it again.
    From: Alfredo | Date: 28/04/2022
    Was this review helpful? Yes No (0/0)
    Does your load cell come with a cable matching the 5 pin male plug?
    Does your load cell come with a cable matching the 5 pin male plug?
    From: Conniew | Date: 11/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, our load cell is supplied with a cable that matches the 5-pin male plug.
    I want to buy your load cell, do you have any suggestions?
    I am working on an research station i Norway and we have 12 loadcell (50 kg and 300 kg) which we want to connct to an computer, so that we can follow the weight over time. Is that possible, and what do you recommend?
    From: Nomercy | Date: 10/08/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    We can recommend using our multi-channel junction box to connect the load cell together getting one output, and then connect the junction box output signal to the our Digital Load Cell Amplifier, to output RS485 signal, and then connect to the computer software through the 485 signal to monitor the weight information.
    Load cell customized according to customer needs
    Can you customize the load cell according to our requirements?
    From: Jeffery | Date: 03/03/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, we can. You only need to tell me what specifications/sizes of tension and compression load cells need to be purchased.
