    5 Digit Display Controller for Load Cells, RS485/ 4-20mA Output

    4.6 out of 5 based on 3 reviews | Write a review
    $247.85
    5 digit display controller can cooperate with load cells, force sensors and weighing sensors, RS485/ 4-20mA/ 0-10V transmitting signal output, digital panel meter can display gross, net, peak and valley value alternately.
    *
    SKU: ATO-DPM-DY220
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Intelligent digital display controller can be used for measuring pressure, impact force, tension and weight, it has functions such as zero tracking, automatic zero clearing when power on.

    Specification

    Basics Model ATO-DPM-DY220
    Dimension

    160*80*125mm(L*W*D) horizontal,hole size 152*72mm

    Shipping weight 2 kg
    Technical parameters Display -9999~29500
    Measurement accuracy 0.05%
    Measuring speed 10 or 80 times/second (Settable)
    Display method 5 digit LED display
    Instrument power supply 100-240V AC, 50/60Hz
    Input signal 0-2.5mV/V
    Transmitting Output Signal Option RS485/ 4-20mA/ 0-10V
    Power Consumption ≤5W
    Indicator light definition Alarm 1, alarm 2, alarm 3, MOT, zero, gross, net, peak, valley, t, kg, g, kN
    Alarm Three alarm outputs
    External power supply 10V precision power supply
    Working temperature Temp: -20~+50℃ (-4~+122℉)
    Humidity: ≤85%RH

    Brief demonstration

    Here is a brief demonstration of a digital load cell indicator. Learn how it simplifies the process of monitoring and managing loads with its user-friendly interface and advanced functionalities.

    Wiring diagram

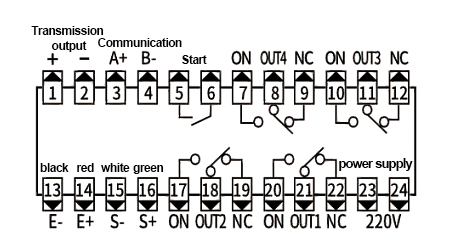

    5 Digit Display Controller for Load Cells Wiring Diagram

    Tips: How important the digital display controller is in load cell applications?

    Digital display controller, known as digital panel meter, is an electronic equipment that converts the signal such as load cell or the weight transmitter into the digital display of the weight, which can store, count and print the weight data. It is commonly used for automated batching and weighing in industrial and agricultural production to improve production efficiency.
    As the development of technology, micro-electronic skills are brought in the digital panel meter manufacturing industry, which greatly improves the predictability and accuracy of the display controller and enhances the reliability of it.
    Before use, the digital panel meter should be calibrated with the load cell. The calibration is to calibrate the display controller with the standard weight. Calibration coefficients relative to the set of sensors are stored in the calibrated instrument. With these coefficients, the panel meter can convert the analog signal of the load cell into a digital weight display.
