    Micro Load Cell, Button type, 5kg/100kg/200kg/300kg/500kg/1000kg

    5 out of 5 based on 10 reviews | Write a review

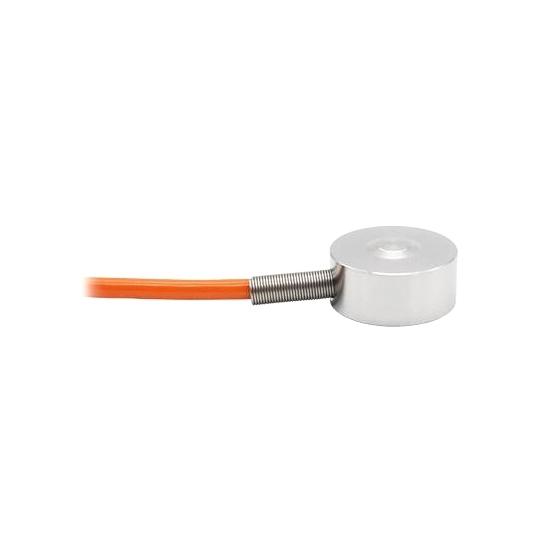

    Micro load cell has a capacity range from 5kg, 10kg, 20kg, 50kg, 100kg, 300kg to 1000kg. It has a button type structure, diameter 20mm and height 9mm, cable Φ3*2m. Button load cell can be used in laminator, riveter, force tester, any automation equipment needs force monitoring.
    SKU: ATO-LC-BU04
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    A micro load cell is a commonly used measuring tool that converts weight into electrical signal output to facilitate accurate weighing and measurement. The sensor features stainless steel construction and is based on strain measurement technology with an accuracy of up to 0.3 F.S.

    Micro load cells have capacity range from 5kg, 10kg, 20kg, 30kg, 50kg, 100kg, 200kg, 300kg, 500kg to 1000kg. Load cell capacity can be customized according to customer requirements.
    After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, 4-20mA, or RS485.


    Model ATO-LCBU-DYHW-120
    Shipping weight 1.5kg
    Capacity range * 5~1000kg
    Accuracy 0.3%F.S (linearity + hysteresis + repeatability)
    Sensitivity 2.0±10%mV/V (Low range variations may differ)
    Creep ±0.03%F.S/30min
    Zero output ±2%F.S
    Temperature effect on zero ±0.1%F.S/10℃
    Temperature effect on output ±0.1%F.S/10℃
    Operating temperature -20℃~+80℃
    Input impedance 1000Ω
    Output impedance 1000Ω
    Insulation resistance ≥5000MΩ
    Safety overload 150%F.S
    Bridge voltage (excitation voltage) DC 5-10V
    Material Stainless steel
    Protection class IP66
    Cable length 2m
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

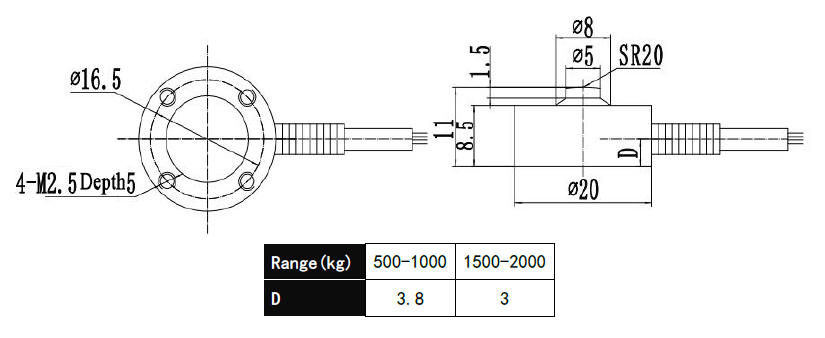

    Miniature compression load cell dimension (unit: mm):

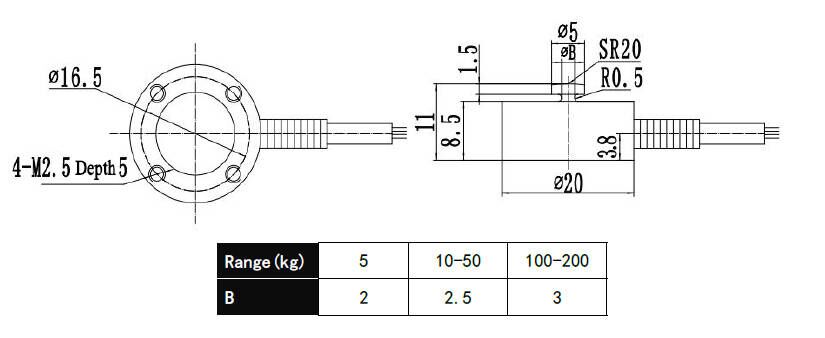

    Micro load cell button type dimension

    Micro load cell button type dimension

    In this video, ATO will show you how to wire a strain gauge load cell with a display controller.

    Low Profile Micro Compression Button Load Cell 100kg
    This video introduces the specs, design features and applications of a low profile miniature button load cell DYHW-110 that's intended for compression force measurement. The maximum load capacity it can bear is 100kg. It can achieve 0.5%F.S accuracy with 150%F.S safety overload and temperature compensation.

    Shear Beam Load Cell | Single & Double-Ended, Weighbridge Load Cells
    The shear beam load cell is a common load cell. Its working principle is based on the deformation of the elastomer when it is acted upon by an external force. This deformation will cause the resistance of the elastomer to change, thereby achieving the measurement of the external force. It is typically used to measure forces in the small to medium range and its working principle is based on the shear effect of elastically deforming materials. This type of force measuring element is usually made of metal or polymer materials. Because of its high elastic modulus and shear modulus, it can produce stable shear deformation when subjected to external forces.

    Existing reviews of Micro Load Cell, Button type, 5kg/100kg/200kg/300kg/500kg/1000kg
    Would this load cell be usable?
    We would be looking to use this load cell with 3.3 V excitation, however, I see the recommended range is 5 – 10 V. Typically 3.3 Vexc simply results in a reduction in the Vout by the ratio of 3.3/5V.

    i.e. Vout @3.3Vexc would be equivalent to  0.66 * Vout@5Vexc

    Our signal amplifier provides  2000x Would this load cell be usable?
    From: Darren | Date: 05/02/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Our load cell nalso supports 3.3V excitation voltage, but if the power supply voltage is low, the signal will become smaller and the stability of the sensor will Not be good. We suggest that an excitation voltage of 5V or above would be better.
    The tolerance for this dimension of load cell
    This is referring to the micro loadcell we have been ordering, PN: ATO- LCBU-DYHW-120 rated at 1500kg. After further investigation, we also noticed a fairly large drift of the loadcell height. It is rated at 11mm according to your product data sheet, yet no tolerance is provided.
    Please provide us a tolerance for this dimension that these loadcells are kept to so we can further design around it.
    From: mona | Date: 21/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The tolerance for this dimension of ATO-LCBU-DYHW-120 is ±0.1mm.
    Is this load cell for the range of 0-500 KG?
    Is this for the range of 0-500 KG?
    Also, What would be the best way to calibrate it?
    From: brooke | Date: 20/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, this is for the range of 0-500 KG.
    Please refer to this video calibration:
    Which load cell can we expect when ordering more in the future?
    We ordered a second micro loadcell button type PN: ATO-LCBU-DYHW-120 rated at 1500kg.
    When it arrived, we noticed the deviation between the second one (black cable) and the first one we ordered (orange cable) based on the top face profile.
    Are they different loadcells rated at different capacities?
    Which one can we expect when ordering more in the future?
    Please provide an explanation.
    Thank you.
    From: idan | Date: 19/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Thanks for your feedback.
    The load cell PN you bought: Is ATO-LCBU-DYHW-120
    Due to product upgrades, the default cable of the sensor has changed from the previous orange cable to the black cable.
    For your new order, if you want to continue to use the orange cable, you just need to let us know by email after placing the order.
    Thank you for your understanding.
    Please provide more details on load cell
    We received the ATO-LCBU-DYHW-120 load cell and so far it is working very well at lower loads. We are looking to conduct some computer stress-analysis on the load cell and our designed fixture it will be sitting in, but we need some more information on the load cell material properties.
    Please provide more details on the following:
    Specific-type of stainless steel used.
    Surface treatment procedure; case hardening, quenching, annealing, normalizing, etc.
    From: khaled | Date: 06/04/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Unfortunately, we do not provide more information on material properties of load cells.
    Manual mounting for a load cell
    We need to install a load cell ATO-LC-BU04 in the stand and we have a question about the mounting load cell.
    Can you send manual mounting for a load cell ATO-LC-BU04?
    From: kolt | Date: 01/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. The 3ph flowing from the VFD should go directly to the motor instead of other loads, otherwise it may malfunction.
    2. The voltage output by our VFD is not a sine wave. You use a general multi meter to measure inaccurately.
    You need to use a special oscilloscope to measure voltage and frequency correctly.
    Use of miniature load cell
    I need a load cell which will be constantly under weight (up to 300kg), in my application, I need to mointor the reduction of that weight (the weight load will decrease by a mutliplier of 5KG), and then output that difference in weight change.
    From: Gano | Date: 20/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    But We don't know where the sensor will be installed, the specific size requirements etc. So cannot recommend certain model. Please, provide photos of your application, and where the load cell will be installed?
    Nice micro load cell
    I ordered two load cells of your products, just wanted to confirm that no taxes will be charged, the university of pennsylvania is a tax exempt organization.
    From: Evictoria | Date: 12/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Don't worry no additional payment will be required from you. And no taxes will be charged. You will be receiving the load cells at your door step.
    Recommendations for purchasing micro load cells
    Can you advice about the excitation voltage output from your load cell transmitter?
    From: Whitey | Date: 11/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The excitation voltage supports between 5VDC-15VDC (terminals labeled E+ and E-) on the left side of the transmitter.
    Customized miniature load cell
    This miniature load cell is not the style I want, can I customize a style I want?
    From: Tyrone | Date: 17/04/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, you can customize. You can send us the type and size of the miniature load cell you want.
