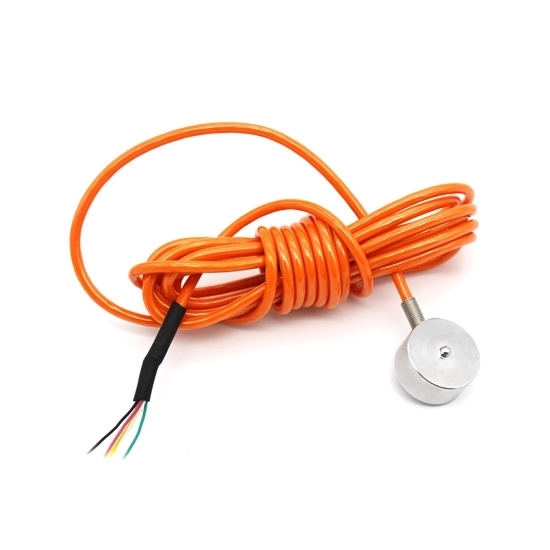

Small Load Cell, Button type, 5kg/300kg/500kg/1000kg/2 ton to 5 ton

5 out of 5 based on 4 reviews | Write a review
$114.55
Small load cell is a button type load cell for compression measurement. It has a capacity range from 5kg to 5 ton, diameter 20mm-37.7mm and height 12mm-18mm, cable Φ3*2m. Button load cell can be used in places where space is limited, such as button hand-feeling tester, mobile phone screen/fingerprint button force detection system, robot grasping force detection system.
*
SKU: ATO-LC-BU05
30-day Returns
Free Shipping
Delivery date: 6-12 days

After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, 4-20mA, or RS485.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Small load cells have capacity range from 5kg, 30kg, 100kg, 200kg, 300kg, 500kg, 1000kg, 2 ton to 5 ton. Load cell capacity can be customized according to customer requirements.

Specification

Model ATO-LCBU-DYHW-116
Shipping Weight 1.5kg
Capacity Range * 5kg~5 ton
Matched Display Controller ATO-DDC5-CHB (Click it to the controller page)
Matched Transmitter ATO-LCTR-OA (Click it to the transmitter page)
Accuracy 0.3%F.S (linearity + hysteresis + repeatability)
Sensitivity 2.0mV/V (Low range variations may differ)
Creep ±0.05%F.S/30min
Zero Output ±1%F.S
Temperature Effect on Zero ±0.1%F.S/10℃
Temperature Effect on Output ±0.1%F.S/10℃
Operating Temperature -20℃~+80℃
Input Impedance 700Ω
Output Impedance 1000Ω
Insulation Resistance ≥5000MΩ
Safety Overload 150%F.S
Bridge Voltage (excitation voltage) DC 5-10V
Material Alloy steel or stainless steel
Protection Class IP66
Cable Length 2m
Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White


Feature

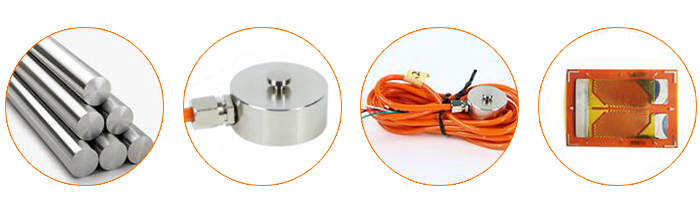

Micro load cell 5kg to 1000kg feature

  • Compact & Robust: Versatile, space-saving design with durable 17-4 PH stainless steel for seamless integration and lasting strength.
  • High Accuracy: Ensures precise and consistent measurements with a reliable sensing chip.
  • Reliable Performance: Engineered to endure harsh conditions while maintaining stability and longevity.
  • Effortless Installation: Quick setup with high-quality wiring for secure and reliable signal transmission.

Dimension

Capacity Dimension (mm)
ΦA ΦC ΦD H E M H1 SR
5~200kg 20 2.5 15.5 12 10 M3 2.7 2
300~1000kg 26 5 18.5 15 11.5 M4 3.5 6
2 ton 30 6 20 18 14 M4 3.5 15
3-5 ton 37.7 10.8 31 15.5 14 M2.5 3.5 50

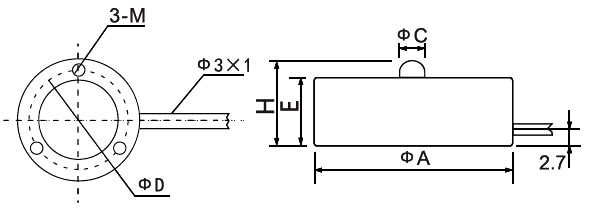

Small load cell button type 5kg/300kg/500kg/1000kg/2 ton to 5 ton dimension

Wiring Method

Load cell wiring method

Application

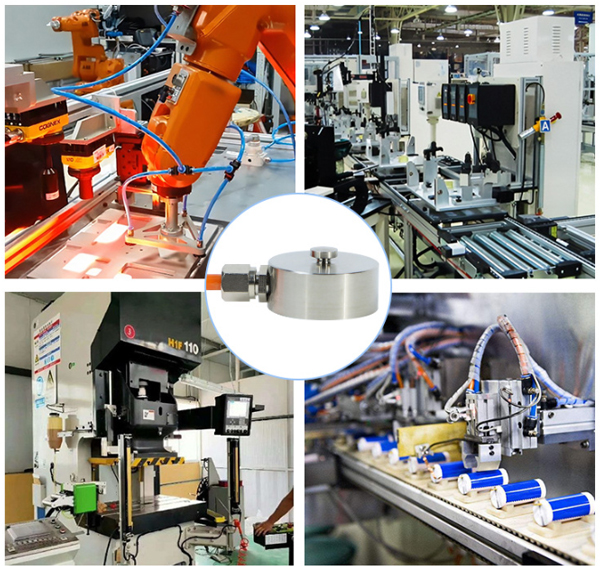

Micro load cell 5kg to 1000kg application

Tips: What happens if a small button load cell is overloaded?

Overloading beyond the rated capacity can cause:

  • Permanent deformation of the sensing element.
  • Reduced accuracy due to strain gauge damage.
  • Complete failure if the load cell structure is compromised.

To prevent this, choose a load cell with a higher safety factor or integrate overload protection mechanisms.

Existing reviews of Small Load Cell, Button type, 5kg/300kg/500kg/1000kg/2 ton to 5 ton
Output Signal
How do you select the output signal or know the rated voltage of a cell already acquired?
From: Carlos Daniel | Date: 13/09/2022
Was this review helpful? Yes No (0/0)
ATO Responded
Let me give you an example. Suppose a load cell supply voltage is 10V, the load cell sends a voltage signal of 2mV/V, then the output signal of this load cell is in the range of 0~20mV. The weight is proportional to the output signal. The general load cell display meter will explain this signal.
Form factor
Hi, is it possible to get this sensor but for tension with about the same diameter?
Thx.
From: Ange | Date: 30/07/2022
Was this review helpful? Yes No (0/0)
ATO Responded
Different ranges have different diameters, through which you can compare the diameter you need. Of course you have to pay to get it.
Accessories for load cells
Does your load cell come with a cable matching the 5 pin male plug?
From: Caitlyn | Date: 26/07/2021
Was this review helpful? Yes No (0/0)
ATO Responded
Yes, our load cell is supplied with a cable that matches the 5 pin male plug.
