    3 Axis Load Cell 50N/100N/200N/500N/1000N/2000N to 5000N
    Picture of 3 Axis Load Cell 50N/100N/200N/500N/1000N/2000N to 5000N
    Picture of 3 Axis Load Cell 50N/100N/200N/500N/1000N/2000N to 5000N
    Picture of 3 Axis Load Cell 50N/100N/200N/500N/1000N/2000N to 5000N
    Picture of 3 Axis Load Cell 50N/100N/200N/500N/1000N/2000N to 5000N

    3 Axis Load Cell 50N/100N/200N/500N/1000N/2000N to 5000N

    5 out of 5 based on 7 reviews | Write a review
    $1,337.57

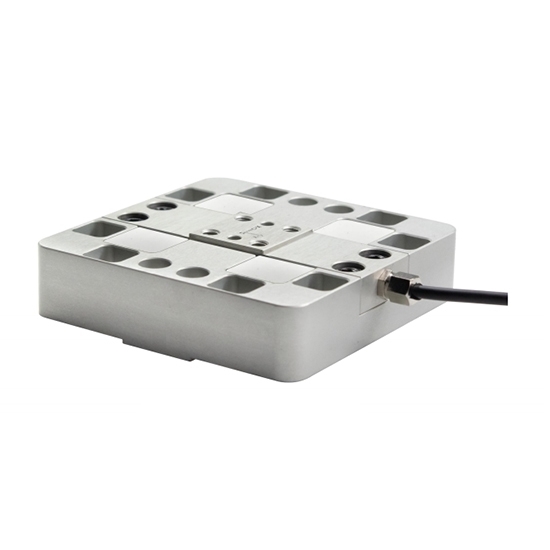

    3 axis load cell is a multi axis load cell for force measurement of X/Y/Z axis. Three axis load cell has 0.5%FS accuracy, IP66 protection class, good anti-eccentric load performance and 12 months long operating life. It can be applied for precise control of the robotic arm, surface grinding and polishing, CNC high precision carving and precision testing of medical equipment.
    *
    *
    *
    SKU: ATO-LC-MA02
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    3 axis load cells have capacity range from 50N, 100N, 200N, 500N, 1000N, 2000N to 5000N. Load cell capacity can be customized according to customer requirements, such as capacity of 500kg or 5000lb.

    Specification

    Model ATO-LCMA-DYDW-005
    Shipping weight 3kg
    Capacity range * X axis: 5N~5000N
    Y axis: 5N~5000N
    Z axis: 5N~5000N
    Matched display controller ATO-DDC5-CHB (One 3-axis load cell needs to be paired with 3 display controllers) (Click it to the controller page)
    Matched transmitter ATO-LCTR-OA (Click it to the transmitter page)
    Accuracy 0.5%F.S (linearity + hysteresis + repeatability)
    Sensitivity 1.0mV/V
    Creep ±0.5%F.S/30min
    Zero output ±2%F.S
    Temperature effect on zero ±0.05%F.S/10℃
    Temperature effect on output ±0.05%F.S/10℃
    Operating temperature -20℃~+75℃
    Input impedance 350Ω or 1000Ω
    Output impedance 350Ω or 1000Ω
    Insulation resistance ≥5000MΩ
    Safety overload 150%F.S
    Bridge voltage (excitation voltage) DC 5-15V
    Material Alloy steel
    Protection class IP66
    Cable length 4m (Φ6mm)
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White


    Feature

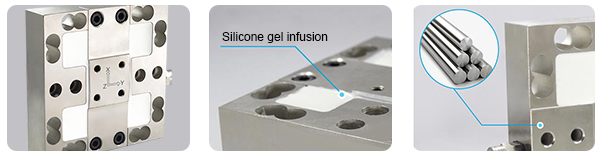

    3 axis load cell 50n to 5000n feature

    • High Precision & Sensitivity: Provides high precision measurements with excellent stability and resistance to offset loads, ensuring reliable performance in various applications.
    • XYZ Axial Force Detection: Capable of measuring force in all three axes (X, Y, Z) simultaneously, delivering comprehensive force data for complex applications.
    • Durable Construction: Made with high-quality alloy steel, providing superior durability and resistance to environmental factors, suitable for harsh conditions.
    • Wide Application Range: Ideal for robotic arm force sensing, automated tool protection, test bench applications, and various industrial control systems.
    • Effective Sealing: Features effective sealing technology to protect internal components, ensuring stable performance in dusty and humid environments.

    Dimension (unit: mm)

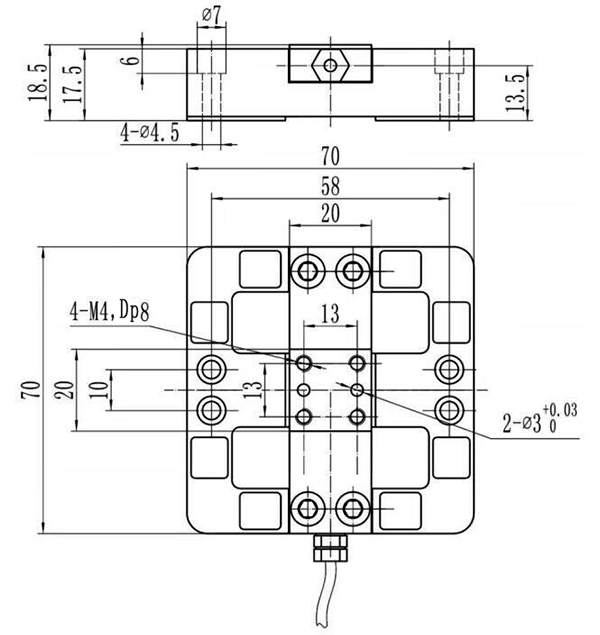

    For 50N-500N

    3 axis load cell 100N 500N dimension

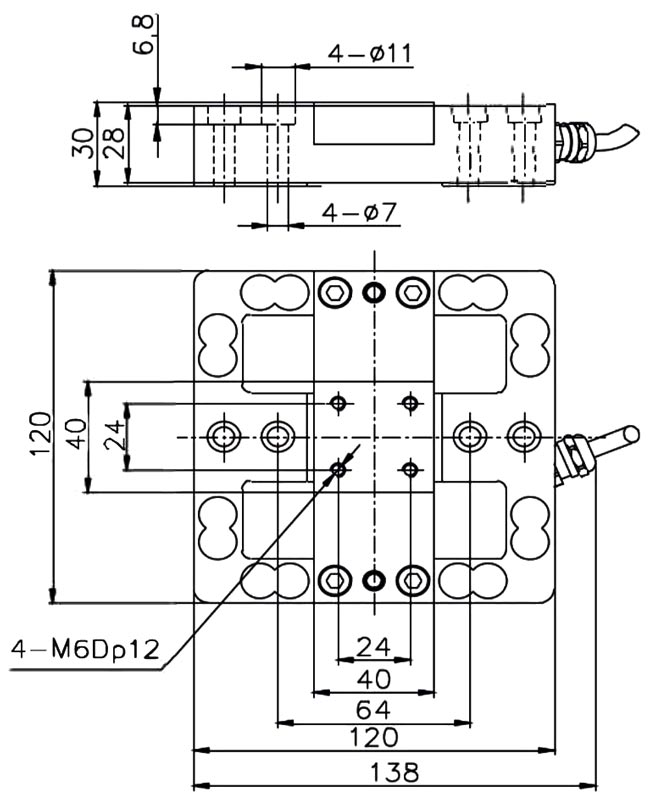

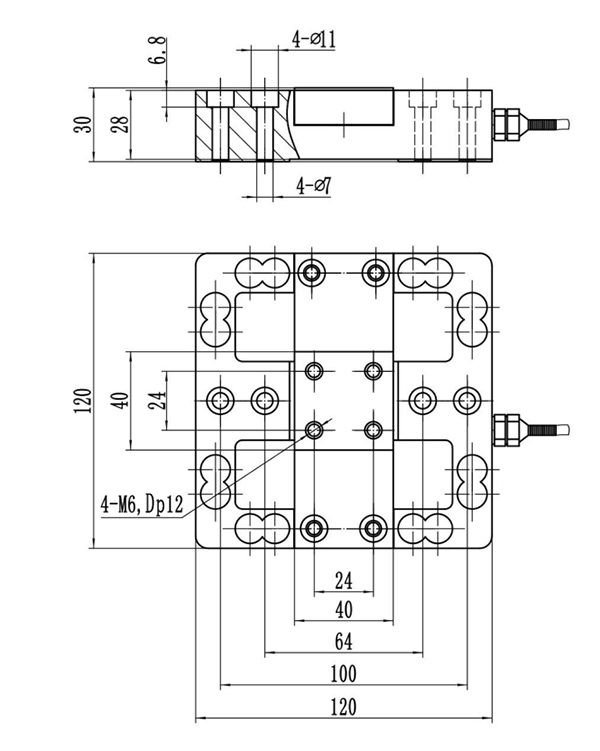

    For 1000N-5000N

    3 axis load cell 1000N-5000N dimension


    Wiring Method

    Load cell wiring method

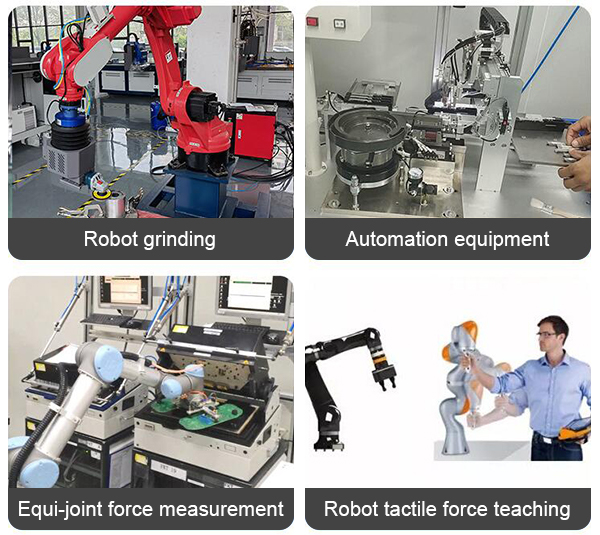

    Application

    3 axis load cell 50n to 5000n application

    Tips: What is a 3 Axis Load Cell?

    A 3 Axis Load Cell is a type of force sensor designed to measure forces applied in three perpendicular directions: X, Y, and Z axes. Unlike traditional load cells that measure force in a single direction (usually compression), a 3 Axis Load Cell can simultaneously measure force in all three spatial directions. This makes it ideal for applications where forces act in multiple directions, providing a comprehensive measurement of force distribution.

    Typically, it uses strain gauges mounted on a central sensing element. When force is applied, the strain gauges detect the deformation along each axis and convert it into an electrical signal. This data is then processed to determine the magnitude of the applied force in each direction.

    How to Make Your Load Cell Transmitter Work More Accurately

    In this video, we've shown you how to calibrate the weight transmitter Model 610 by ATO using a compression load cell so that you can make sure you get the most accurate readings possible in your measurement.

    CHB Load Cell Controller Calibration | Compensation Factor Calculation

    In this video, we will walk you through the calibration procedure of ATO's CHB series load cell controller and how to calculate the compensation factor for your specific load cell so as to improve measurement accuracy. Hope you'll find it helpful.

    How to Test for Faults in Load Cells?

    As the most essential as well as vulnerable part of an electronic weighing system, load cells might get damaged for many different reasons. How can you determine whether a load cell is at fault? This video is gonna smooth out this problem by showing you several basic field tests that can be performed on site and provides the information necessary to interpret the results.

    How to Choose the Right Load Cell

    This video explains the six main considerations as to the selection of load cells for different jobs. These factors are application, operating environment, types of material and sealing techniques, capacity/resolution requirements and output signal types. Hope this video will be helpful and get you prepared for the initial discussion with technical personnel during the selecting process.

    Strain Gauge Load Cell, S Type

    In this video, ATO offers a variety of load cells and weigh modules designed for your applications.
