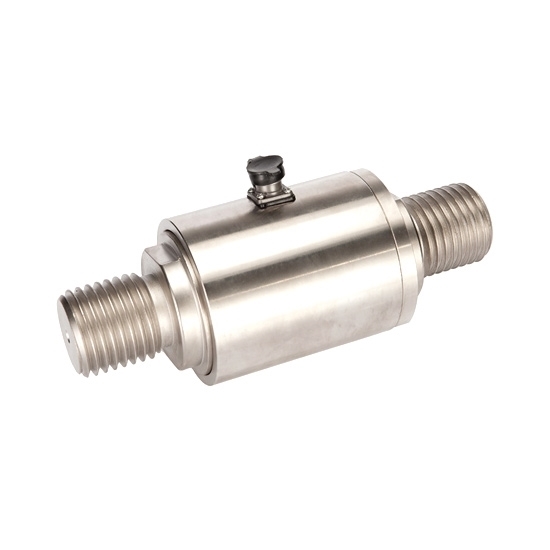

    Tension Load Cell, 10 ton/30 ton/50 ton/100 ton to 200 ton
    Picture of Tension Load Cell, 10 ton/30 ton/50 ton/100 ton to 200 ton
    Picture of Tension Load Cell, 10 ton/30 ton/50 ton/100 ton to 200 ton
    Picture of Tension Load Cell, 10 ton/30 ton/50 ton/100 ton to 200 ton

    Tension Load Cell, 10 ton/30 ton/50 ton/100 ton to 200 ton

    5 out of 5 based on 2 reviews | Write a review
    $291.29
    10 ton to 200 ton load cell can bear both tension and compression, with male thread and column type structure, has good anti-eccentric load performance, long-time stability, can be applied for electronic weighing instrument, hoisting equipment, tension measurement and control.
    *
    *
    *
    *
    SKU: ATO-LC-T02
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0~5V, 0~10V, 0~±10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Tension and compression load cells have capacity range from 10 ton, 20 ton, 30 ton, 50 ton, 100 ton to 200 ton. Load cell capacity can be customized according to customer requirements.

    Specification

    Model ATO-LCST-TJL-8
    Shipping Weight 1.5~4kg
    Capacity Range * 10 ton~200 ton
    Matched Display Controller ATO-TY5DA3 (Click it to the controller page)
    Matched Transmitter ATO-LCTR-NTB3K (Click it to the transmitter page)
    Accuracy 0.05~0.1%F.S (linearity + hysteresis + repeatability)
    Sensitivity 1.5±0.1mV/V
    Creep ±0.05%F.S/30min
    Zero Output ±1%F.S
    Temperature Effect on Zero ±0.05%F.S/10℃
    Temperature Effect on Output ±0.05%F.S/10℃
    Operating Temperature -20℃~+65℃
    Input Impedance 380±10Ω or 750±15Ω
    Output Impedance 350±3Ω or 700±5Ω
    Insulation Resistance ≥5000MΩ
    Safety Overload 150%F.S
    Bridge Voltage (excitation voltage) DC 10V
    Material Alloy steel
    Protection Class IP67
    Cable Length 6m
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White


    Feature

    Tension load cell 10 ton to 200 ton feature

    • 42CrMo Alloy Material: External thread connection, strong resistance to machine fatigue, large load capacity, wide range of applications, and safe and reliable.
    • High Measurement Accuracy: Stable output, reliable signal transmission, strong anti-jamming capability, ensuring high accuracy.
    • Fine Workmanship: Advanced grinding technology, flat design, easy connection with dual-threaded ends, simple and convenient installation.

    Dimension

    Capacity Dimension (mm)
    A ΦB C M
    10~20 ton 214 82~86 124 M42*4.5
    30~50 ton 276 106 157 M56*5.5
    70~100 ton 380 142 180 M76*4
    150~200 ton 500 175 220 M130*6

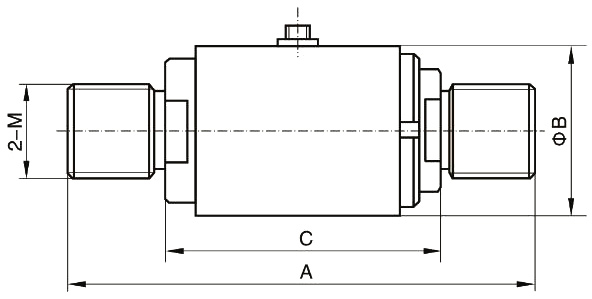

    Tension load cell 10 ton to 200 ton dimension

    Wiring Method

    Load cell wiring method

    Tips: What is the difference between a Tension Load Cell and a Compression Load Cell?

    The main difference between a tension load cell and a compression load cell is the direction of the force being measured. A tension load cell is designed to measure pulling or tension forces, while a compression load cell measures pushing or compressive forces.

    • Tension Load Cells are used in applications where the load is being pulled, such as on cranes, hoists, or wire ropes.
    • Compression Load Cells are used when the force is applied in a compressive direction, such as in weighing systems or hydraulic presses.

    Both types of load cells work based on the same principle, converting mechanical force into an electrical signal, but they are optimized for different load directions.

    How to Make Your Load Cell Transmitter Work More Accurately

    In this video, we've shown you how to calibrate the weight transmitter Model 610 by ATO using a compression load cell so that you can make sure you get the most accurate readings possible in your measurement.

    CHB Load Cell Controller Calibration | Compensation Factor Calculation

    In this video, we will walk you through the calibration procedure of ATO's CHB series load cell controller and how to calculate the compensation factor for your specific load cell so as to improve measurement accuracy. Hope you'll find it helpful.

    How to Test for Faults in Load Cells?

    As the most essential as well as vulnerable part of an electronic weighing system, load cells might get damaged for many different reasons. How can you determine whether a load cell is at fault? This video is gonna smooth out this problem by showing you several basic field tests that can be performed on site and provides the information necessary to interpret the results.

    How to Choose the Right Load Cell

    This video explains the six main considerations as to the selection of load cells for different jobs. These factors are application, operating environment, types of material and sealing techniques, capacity/resolution requirements and output signal types. Hope this video will be helpful and get you prepared for the initial discussion with technical personnel during the selecting process.

    Load Cell Transmitter with Output 0-5V/0-10V/4-20mA/0-20mA

    This intro video describes the features of ATO-DY510 load cell transmitter as well as its specifications. Housed in aluminum alloy case and CE-certified, the transmitter can connect to single or up tp 4 load cells at built-in excitation voltage from 5V to 15V DC. Powered from 18-30V DC supplies, this high precision weight transmitter can accept a 0-20mV full scale input range and convert the low strength signal into a 0-5V/0-10V/4-20mA/0-20mA output.

    Existing reviews of Tension Load Cell, 10 ton/30 ton/50 ton/100 ton to 200 ton
    What are the main uses of tension load cells?
    Is your tension load cell for cranes mainly meant for load tests or daily lifting activities?
    From: Terrelk | Date: 25/09/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    It can be used for load testing or daily lifting applications, just do not overload it.
    Bridge voltage of tension load cell
    In the online datasheet for your tension load cell, it lists the bridge voltage as 10VDC. I want to power the cell with 5 VDC. Will this be a problem?
    From: Linnie | Date: 21/04/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    There is no problem working at this voltage, it can works fine on 5VDC. Generally, tension load cell bridge voltage is DC 5-15V.
    Load more reviews...
    Write your review for Tension Load Cell, 10 ton/30 ton/50 ton/100 ton to 200 ton
    • Only registered users can write reviews
    • Bad
    • Excellent
    Related products
    Strain Gauge Load Cell, S type, 5kg/50kg/1000kg/3 ton to 20 ton

    Strain Gauge Load Cell, S type, 5kg/50kg/1000kg/3 ton to 20 ton

    $88.41
    SKU: ATO-LC-S01
    S type load cell can bear both tension and pressure, with good output symmetry, high accuracy, compact structure and complete specifications. Strain gauge load cell can be applied for batching scale, electronic-mechanical scale, crane scales and other force value measurement and control.

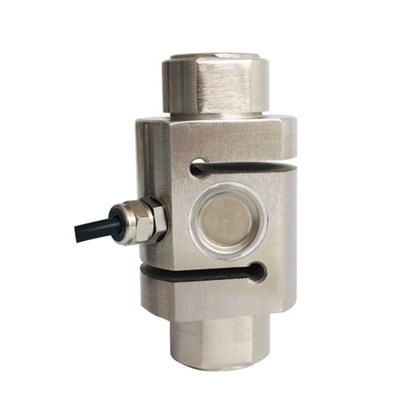

    Tension and Compression Load Cell, 100kg/2 ton to 20 ton
