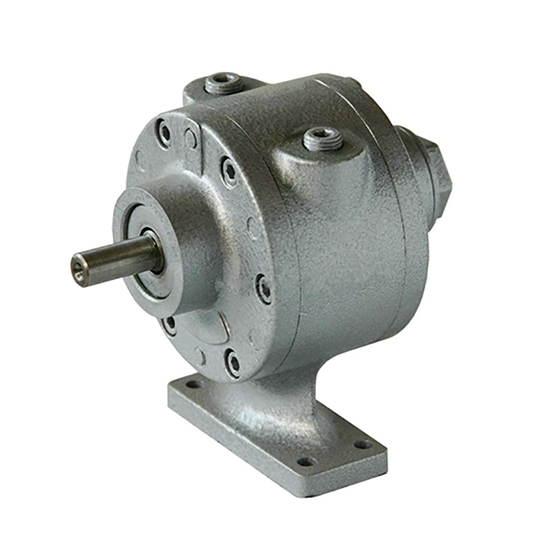

    1.5hp (1.2kW) Pneumatic Vane Air Motor

    5 out of 5 based on 1 reviews | Write a review
    $464.45
    1200 watt pneumatic vane air motor with maximum torque rotated speed 300rpm, three kinds of installation methods can be chosen, gray color. It is widely used in rock drilling of mine, drilling, ship, metallurgy, chemical engineering, and papermaking etc.
    SKU: ATO-PVAM-HX4AM
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Lower cost vane air motor online for sale, with 1.7hp rated power, 3000rpm rotate speed, 78 cfm air consumption. Light weight, easy to operate, low noise and long lifetime.

    Specification

    Model Operation Data Maximum Torque Weight Installation Method Color Certification Warranty
    Power Torque Rotate Speed Air Consumption Rotate Speed Torque
    hp kW Nm lb.in rpm m³/ h cfm rpm Nm lb.in kg
    HX4AM-H 1.5 1.2 4.1 36 3000 132.5 78 300 6.3 56 3.3 Foot Mounting Gray CE 12 months
    HX4AM-V 3.5 Face Mounting
    HX4AM-F110 4.7 IEC Flange

    Dimension (unit=inch/mm)

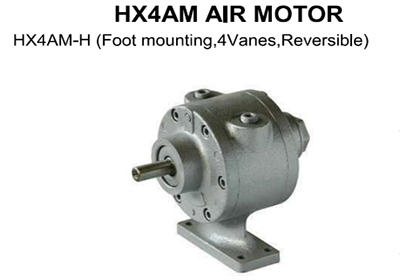

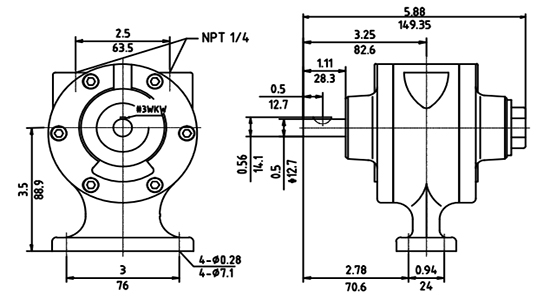

     Pneumatic vane air motor HX4AM-H             Dimension of pneumatic vane air motor HX4AM-H 1

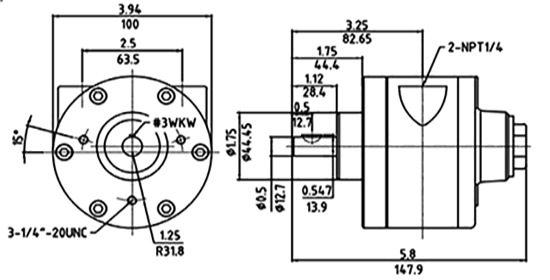

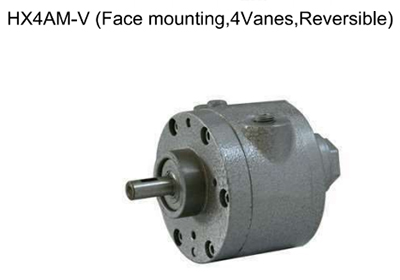

    Vane air motor HX4AM-V          Vane air motor HX4AM-V 1 size

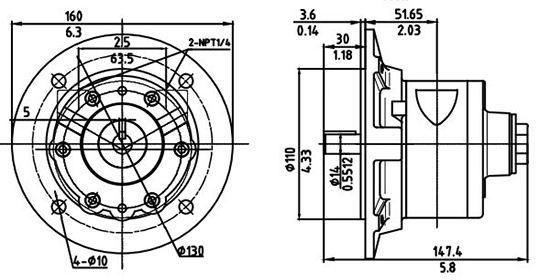

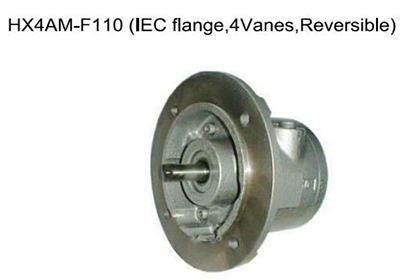

    Pneumatic vane air motor HX4AM-F110                     Vane air motor HX4AM-F110 size

    Tips: The Features of Pneumatic Vane Air Motor.

    Van air motors have some prominent characteristics, in some industrial occasions. It is more suitable than electric motors and hydraulic motors. These features are:

    1. It has explosion-proof performance. Due to the characteristics of the working medium of the air motor and the consideration of structural design, it can not produce sparks during work, so it is suitable for explosive, high temperature and dusty occasions, and can be used in extremely humid air Environment without the risk of leakage.
    2. The soft characteristics of the motor itself enable it to work at full load for a long time, with a small temperature rise and overload protection.
    3.  It has higher starting torque and can start with load.
    4. Easy to follow directions. The operation is simple, and stepless speed regulation can be realized.

    However, pneumatic motors also have shortcomings such as low output power, large air consumption, low efficiency, high noise, and easy vibration.
