    250W 3 Phase AC Vibration Electric Motor, 220V/380V

    5 out of 5 based on 1 reviews | Write a review
    $726.89
    The provided industrial vibration electric motor works at AC 220V 50Hz/380V 50Hz, available with 250W power, 1420 rpm speed, 518kg force, 4 pole, IP65 waterproof and CE certificate. 3 phase vibrating motor is ideal for a variety of occasions such as screening, conveying, cleaning and separation.
    *
    SKU: ATO-AVM-MVE50015
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    3 phase 250W micro vibrating electric motor factory direct sale, features 1420 rpm speed, 518kg force, 4 pole, IP65 waterproof and CE certificate, specially designed for vibrating table/feeder/topsoil screeners. The vibration force can be adjusted by adjusting the included angle of the eccentric block to meet various work requirements.

    Specifications

    Model ATO-MVE50015
    Phase 3 Phase
    Pole 4 Pole
    Force 518 Kg, 5 kN
    Speed 1420 rpm
    Power 250W (0.25kW)
    Current 1.06A
    Voltage Class 3 Phase 220V 50Hz/380V 50Hz
    Weight 20.0 kg
    Frame No. 40
    Frequency 50 Hz/60 Hz
    Protection Rank IP65
    Insulation Class F
    Certificate CE
    Warranty 12 Months

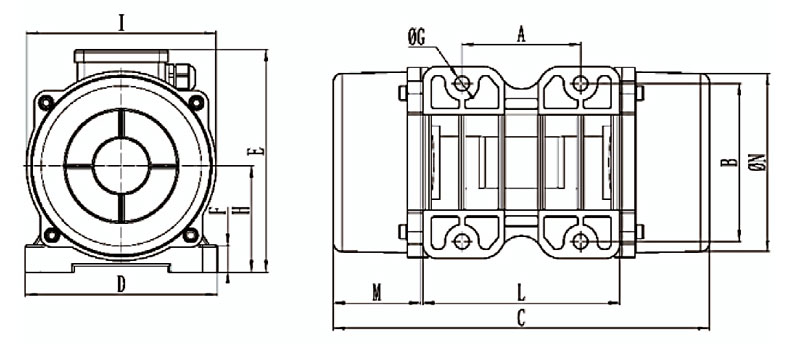

    Dimension (Unit: mm)

    250W 3 phase vibration motor dimension

    A B C D E F G H I L M N Cable Gland
    105 140 334 168 196 22 13 92 169 178 78 158 M20*1.5


    Internal Structure

    3 Phase vibration motor structure

    Applications

    ATO 250W 220V/380V AC 3 phase micro vibration motor is widely used in mining, metallurgy, coal, electricity, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder screening, grain machinery, etc.

    Vibration motor applications

    Tips: Why choose the ATO 3 phase vibration motor?

    1. High-Quality Bearings: The ATO 3-phase AC vibration motor features premium bearings that are precise, low-noise, and wear-resistant, ensuring a long service life and smooth operation.
    2. Adjustable Exciting Force: The motor comes with an adjustable eccentric block, allowing for stepless adjustment of the exciting force by simply changing the block's angle, making it adaptable to various working conditions.
    3. Superior Sealing: The motor is equipped with a special fixed head, offering waterproof and dustproof capabilities, ensuring excellent sealing for safe and reliable operation in harsh environments.
    4. Robust Design: Designed with a closed structure and integral die-casting molding, the motor is strong, and vibration-resistant, and includes a high-quality O-shaped core seal ring for superior waterproof and dustproof performance.
    5. Durable Junction Box: The motor features a fixed watering junction box, with thick wiring posts, pure copper connectors, and a fireproof, high-density sponge. The resin-poured junction box ensures excellent waterproofing, insulation, and high safety performance.

    Video 1: How to use a vibration motor?

    Video 2: How to wire a VFD control using a latching push button switch to run the motor in the forward direction?

    Existing reviews of 250W 3 Phase AC Vibration Electric Motor, 220V/380V
    Vibration motor plus controller is even better
    I purchased a 220V vibration motor and installed a speed controller myself. The motor was received quickly, and workers were arranged to install it immediately. If the vibration force is large, you can adjust the angle of the eccentric block to achieve a suitable vibration force. practical.
    From: steyn | Date: 10/05/2022
