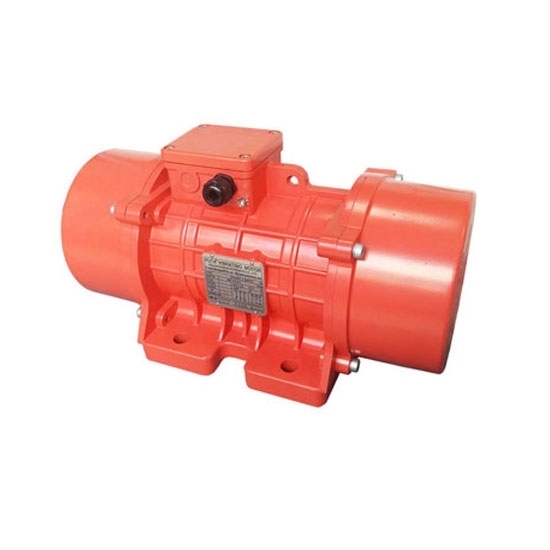

    150W AC Vibration Motor, 3 Phase, 4 Pole

    5 out of 5 based on 1 reviews | Write a review
    $699.89
    High efficiency AC vibration motor, three phase, 1450rpm, 150W, 4 pole, CE certification, 12 months warranty. Vibration motor can be used in food, powder sieving, cutting, metallurgy, coal and other fields.
    SKU: ATO-AVM-MVE40015
    Free Shipping Worldwide
    Delivery date: 6-12 days

    3 Phase vibration motor for sale, cheap price, 150 watt, 0.84A, 4 pole, motor made of pure copper, with strong power, shell coating protection, long service life.

    Specification

    Model ATO-MVE40015
    Phase 3 Phase
    Pole 4 Pole
    Force 388 Kg, 4 kN
    Speed 1450 rpm
    Power 150W (0.15kW)
    Current 0.84A
    Voltage Class 220V
    Weight 19.0 kg
    Frame No. 40
    Frequency 50 Hz/60 Hz
    Protection Rank IP65
    Insulation Class F
    Certificate CE
    Warranty 12 Months

    150W 4 Pole 3 Phase Vibration Motor Dimension (unit: mm)

    150W 3 phase vibration motor dimension

    A B C D E F G H I L M N Cable Gland
    105 140 334 168 196 22 13 92 169 178 78 158 M20*1.5

    3 Phase Vibration Motor Structure
    3 Phase vibration motor structure

    Tips: ATO three-phase vibration motor structure

    1. Customized silicon steel sheet design, silicon steel sheet with high performance and low iron loss to meet its ultra-small volume, extremely low heat generation, and ultra-high efficiency.

    2. The stator adopts the industry's proven vacuum pressure dipping system, which has strong insulation and anti-corona capabilities. The air gap is perfectly filled, no bubbles, excellent insulation performance, long insulation life, and high mechanical and electrical strength of the winding.
    3. The machining of the rotor adopts Motorsolve design, advanced aluminum casting process, and high-precision CNC machining process. The rotor main shaft adopts 40Cr round steel quenched and tempered heat treatment, the strength is twice as high as that of the ordinary motor main shaft. The rotor silicon steel sheet adopts high-speed punching progressive die, with small punching burrs, good flatness and high smoothness.

    4. The shell material of ATO AC vibration motor includes high-strength aluminum alloy, corrosion-resistant stainless steel and ductile iron, etc., and they are all high-density die-casting. All series products adopt scientific and reasonable structural design and choose long-life The bearing ensures the high mechanical reliability and operational stability of the motor.
