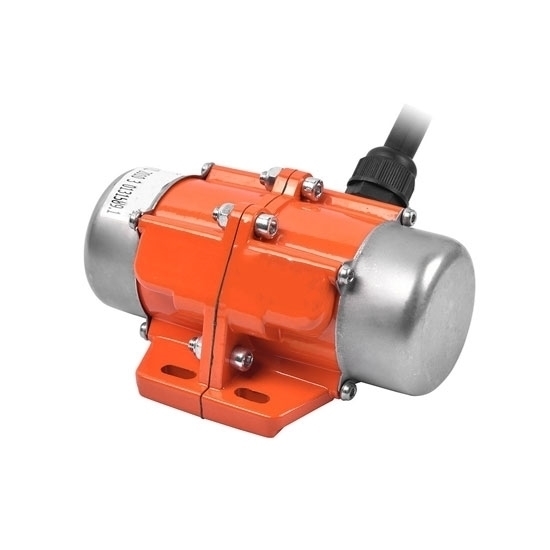

    100W AC Vibration Motor, 1 Phase, 2 Pole

    5 out of 5 based on 1 reviews | Write a review
    110V vibrating motor, 100W, 1 phase, 2 pole. AC voltage can select 100V or 220V, 50Hz/60Hz , variable vibration motor rated speed 3000rpm or 3600rpm. Anti deformation, anti oxidation and can withstand long term high speed operation.
    SKU: ATO-AVB-TB1002S2
    Availability: In stock
    30-day Returns
    Free Shipping
    Delivery date: 2-12 days

    Low cost 110V vibrating motor, 100W, single phase, AC110 or AC220, 50Hz 3000rpm, 60Hz 3600rpm. Strong seismic, low noise and small size, manufacturer direct sales.

    1. Thickened aluminum alloy, small size, low noise and adjustable amplitude.
    2. High strength, anti-deformation, anti-oxidation, can withstand long-term high-speed operation.
    3. Thickened base, firm and shockproof.
    4. The special voltage can be customized, and the power cord will be given as a gift under 100W.
    5. Simple use, safety guarantee, IP65 protection level, waterproof and able to withstand low-pressure jet.


    Model ATO-AVB-TB1002S2
    Power 100W
    Voltage AC220V/AC110V
    Current 0.315A/0.821A
    Frequency 50 Hz 60Hz
    Rated Speed 3000rpm 3600rpm
    Force 105 kg (Test at no load)
    Note: In practical application, the seismic force may be reduced by about 30%.
    Phase Single Phase
    Pole 2 Pole
    Material Aluminum Alloy
    Protection Rank IP 65
    Weight 2.5 kg
    Optional Accessories Speed controller
    Frame No 2
    Certificate CE

    Dimension (unit: mm)
    asynchronous vibration motor.

    Frame No A B C D E F G H I J K L M N
    2 175.5 110 79.5 10 26.5 36.5 63 38.5 66 91.5 8.5 25.5 66 M-16

    Asynchronous Vibration Motor Internal Structure
    asynchronous vibration motor internal structure

    100W vibration motor applications

    Tips: What Causes the Vibration Screening Motor to Burn Out?
    Cooling problem. The ordinary motor end has a fan. When working, the wind direction flows along the vertical ribs above the casing, which not only dissipates heat quickly, but also removes the dust above, so that the motor works in a good state. The vibration motor can dissipate heat due to no fan, relying on natural cooling, and the working environment is very harsh. The dust is large, and the dust is easily accumulated on the surface of the motor, causing the internal temperature to be too high and burning the motor.
    Precautions: Always remove dust from the motor surface to work under good conditions. In the design process, the surface of the vibration motor should be as smooth as possible, so that the dust is not easy to accumulate. If working in a dusty environment, the heat dissipation rib on the surface of the casing should be subtracted, because at this time, the heat dissipation ribs can not only prevent heat dissipation. On the contrary, it is easy to accumulate dust and hinder the heat dissipation of the motor.

    This video will show you how to use vibration motor.

    Existing reviews of 100W AC Vibration Motor, 1 Phase, 2 Pole
    Great AC vibration motor for the price.
    This 100W vibration motor worked great for my purposes. Used it to make concrete pavers that would hold up the weight of my truck and RV. I mounted the unit under a little table, and put the form on top of the table.
    From: wxl | Date: 23/05/2022
    Was this review helpful? Yes No (0/0)
