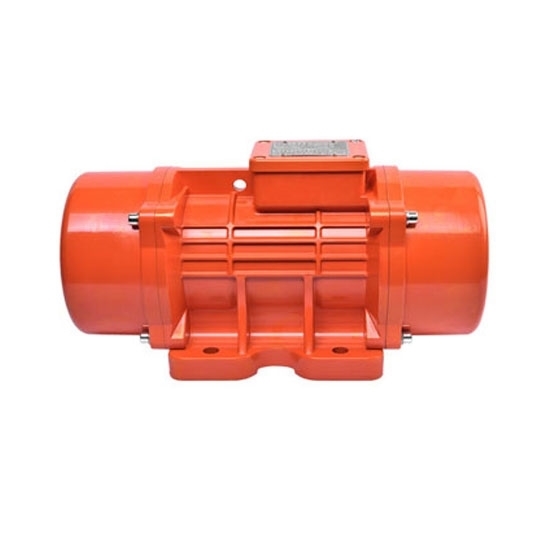

    2 kW AC Vibration Motor, 3 Phase, 6 Pole

    $4,589.69
    Low cost 2000W AC vibration motor, 6 pole, 3 phase, force 38 kN, speed of 970 rpm, insulation class F, powerful vibration motor an ideal choice for mining, metallurgy and construction industries.
    SKU: ATO-AVM-MVE38001
    Free Shipping Worldwide
    Delivery date: 6-12 days

    220 Volt AC vibration motor, three phase, 6 pole, frequency 50/60 Hz, 5.5 Amps rated current, excellent stator insulation performance, long service life of the motor.

    Specification

    Model ATO-MVE38001-80
    Phase 3 Phase
    Pole 6 Pole
    Force 2762 Kg, 38 kN
    Speed 970 rpm
    Power 2000W (2 kW)
    Current 5.5A
    Voltage Class 220V
    Weight 206.5 kg
    Frame No. 80
    Frequency 50 Hz/60 Hz
    Protection Rank IP65
    Insulation Class F
    Certificate CE
    Warranty 12 Months

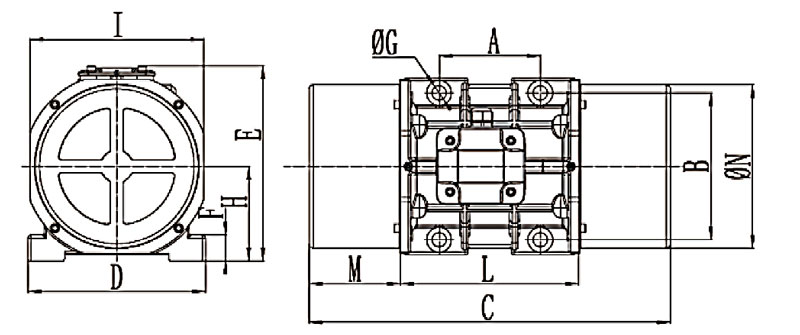

    2 kW Three Phase Vibration Motor Dimension (unit: mm)

    2000W 3 phase vibration motor dimension

    A B C D E F G H I L M N Cable Gland
    180 280 683 332 360 37 26 168 320 343 170 310 M32*1.5

    3 Phase AC Vibration Motor Structure
    3 Phase vibration motor structure

    Tips: Vibration motor controller vibration control system

    The vibration motor controller control system consists of two parts. One controller is used to compensate the engine torque pulsation when the engine is started, and the other is used to control the torsional vibration of the drive shaft and the drive shaft due to the rapid increase and decrease of drive torque. Vibration motor controllers vary according to the method they use to detect the rotor position. Measurements can be made with the help of position sensors or using sensorless technology.

    The vibration motor controller is used to adjust the speed and torque of the vibration motor. It can also start, stop and reverse its rotation. The vibration motor controller detects the position of the rotor by using a sensor or no sensor. The sensor measures the position of the rotor and sends this data. The controller receives the information and enables the transistor to switch the current at the appropriate time and energize the required stator winding.
