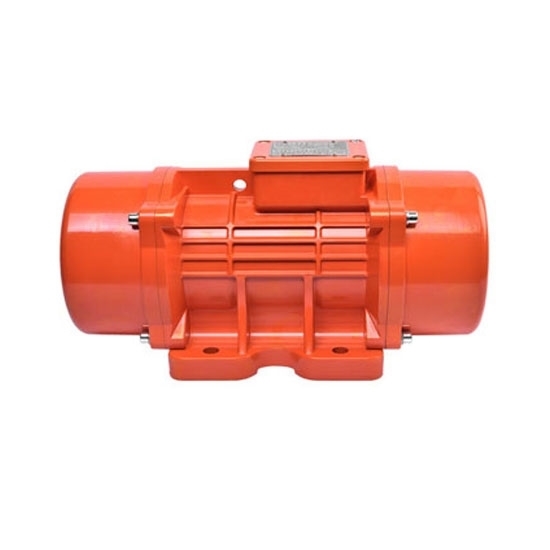

    1 kW AC Vibration Motor, 3 Phase, 6 Pole

    5 out of 5 based on 1 reviews | Write a review
    Big vibration motor 1 kW power, 3 phase, 6 pole, 950rpm, adjust the vibration force by adjusting the angle of the eccentric block, vibration motor as a vibration source for screening and conveying, it is widely used in mining and construction industries.
    SKU: ATO-AVM-MVE21001

    1000W 3 phase large vibration motor, 6 pole, 3A rated current, F class insulation level, IP65, power cord oil and oxidation resistance, the motor body is made of pure copper, with strong earthquake resistance.


    Model ATO-MVE21001
    Phase 3 Phase
    Pole 6 Pole
    Force 2026 Kg, 21 kN
    Speed 950 rpm
    Power 1000W (1 kW)
    Current 3A
    Voltage Class 3 Phase 220V 50Hz/380V 50Hz
    Weight 115.5 kg
    Frame No. 70
    Frequency 50 Hz/60 Hz
    Protection Rank IP65
    Insulation Class F
    Certificate CE
    Warranty 12 Months

    1000W Three Phase Vibration Motor Dimension (unit: mm)

    1000W 3 phase vibration motor dimension

    A B C D E F G H I L M N Cable Gland
    155 225 613 272 299 40 22 145 266 273 170 250 M25*1.5

    3 Phase AC Vibration Motor Structure
    3 Phase vibration motor structure
    Tips: How to solve the problem of edge breakdown of vibration motor

    1. Use a motor with high insulation strength.
    2. Increase the AC output reactor (impedance is 3%).
    3. Increase the output inductor L, capacitor C, resistance R filter.
