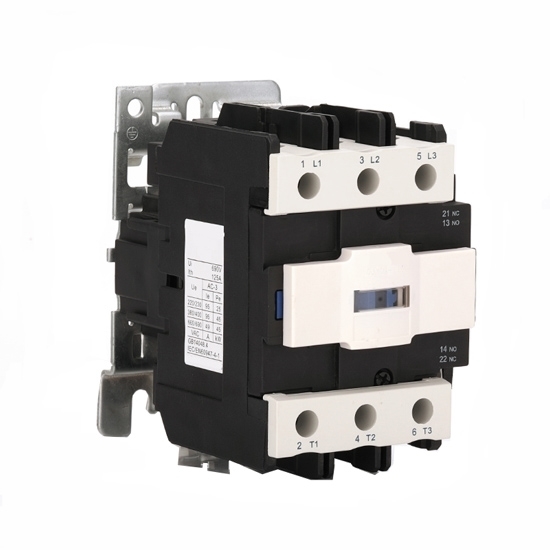

9 Amps 3 Pole AC contactor 24V/110V/220V Coil

Overview
Related Video

9 Amps AC Contactor Features

Low cost AC magnetic contactor with 3 pole, 9A current, 24V, 110V, 220V AC coil voltage for your selection. It has small size, light weight, low power consumption, long life, safe and reliable features, can be as a bypass contactor for frequently starting and controlling AC motors.

9 Amps AC Contactor Specifications

Model		ATO-CJX2-09
Rated Operational Current (AC-3)	380V	9A
	660V	7A
Conventional Heating Current		20A
Rated Insulation Voltage		690V
Power of Controllable 3-phase Squirrel-cage Motor (AC-3)	220V	2.2kW
	380V	4kW
	660V	5.5kW
Operational Frequency (AC-3)	Electric Life	1200 times/h
	Mechanical Life	3600 times/h
Service Life	Electric Life (10⁴ times)	100
	Mechanical Life (10⁴ times)	1000
Matching Fusing Model		RT16-16
Average Power Consumption (20℃) @ 50Hz	Pick-up	76VA
	Holding	9.4VA
Contact Form (Optional)		3P+NO or 3P+NC
Rail Size		35mm
Ambient Temperature		-5℃~+40℃
Altittude		≤2000m
Class of Pollution		Class 3
Installation Category		Ⅲ
Weight		0.33kg

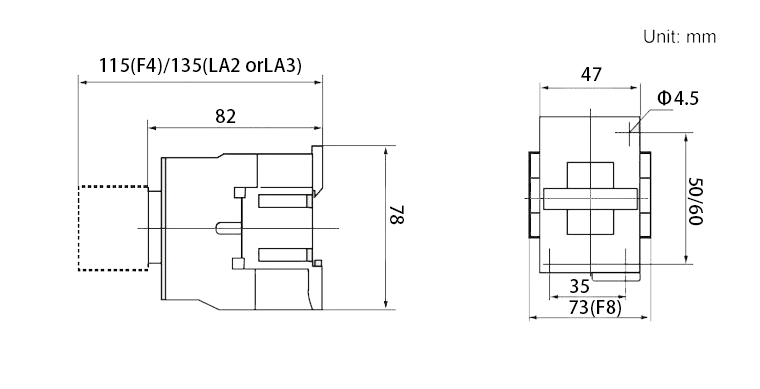

9 Amps AC Contactor Dimensions

Details

Tips: Contactor installation precautions

When the contactor is installed, the bottom plate should be perpendicular to the bottom surface, and the inclination should be less than 5°.
When the AC contactor is installed, the two sides should be placed in the upper and lower positions to facilitate heat dissipation.
When installing the wiring, be careful not to lose the screws, coils, terminals, etc, and tighten the screws.

How to Use AC Contactor with Relay Under Safe Voltage?

Contactors are widely used in industrial equipment. It is a common application to control 110V/120V/220V/240V AC contactors with 12V/24V/36V DC relays. Users can use this method to control unsafe voltages. This video will show you how to use AC contactor with a relay at safe voltage.

Relay/Contactor Interlock Circuit Wiring

In this video, the wiring method of the relay/contactor interlock circuit is demonstrated.

Essential Electronic Components in Electrical Systems

Welcome back to the ATO Channel, you go-to source for electrical and industrial automation insights.

Electromagnetic Switches: Relays VS. Contactors

In this video we will try to clear the confusion many people have between relays and contactors by showing you how to tell the difference based on five criteria: Definition, Capacity, Structure, Contacts and Applications.

3-phase motor reverse connection

In this video, we have 120V/220V/240/380V/415V AC motors with power from 1hp~100hp, widely used to drive various industrial machines such as fans, pumps, machine tools.
