65 Amps 4 Pole AC Contactor 24V/110V/220V Coil

Overview

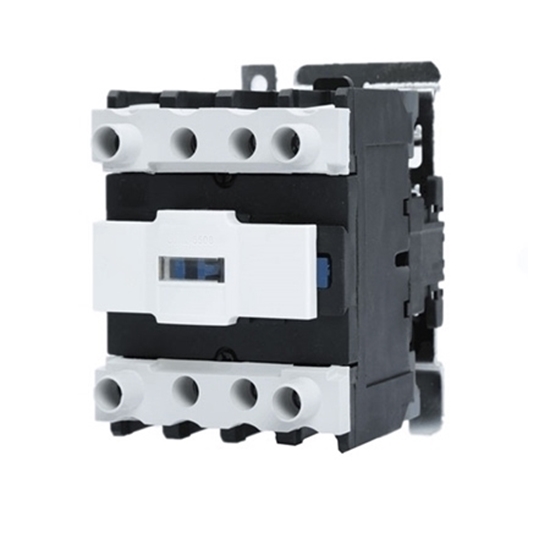

4 pole AC contactor relay, 65amps, 24V/110V/220V coil voltage for selection, 4P (4NO) or 4P (2NO+2NC) contact form. As a bypass contactor, it is widely used for long-distance connecting and breaking circuit.

Specifications

Model		ATO-CJX2-65
Rated Operational Current (AC-3)	380V	65A
	660V	42A
Conventional Heating Current		80A
Rated Insulation Voltage		690V
Power of Controllable 3-phase Squirrel-cage Motor (AC-3)	220V	18.5kW
	380V	30kW
	660V	37kW
Operational Frequency (AC-3)	Electric Life	600 times/h
	Mechanical Life	3600 times/h
Service Life	Electric Life (10⁴ times)	60
	Mechanical Life (10⁴ times)	800
Matching Fusing Model		RT16-80
Average Power Consumption (20℃) @ 50Hz	Pick-up	230VA
	Holding	32VA
Unit weight(kg)	4P (4N/O)	1.32
	4P (2N/O+2N/C)	1.37
Ambient Temperature		-5℃~+40℃
Altittude		≤2000m
Rail Size		75mm
Class of Pollution		Class 3
Installation Category		Ⅲ

Dimensions (unit: mm)

4P (4NO) AC contactor

cjx2 ac contact 4004

4P (2NO+2NC) AC contactor

Tips: Coil overheating or burning, how to solve?
Possible Causes:

The power supply voltage is too high or too low.
Line technical parameters (such as rated voltage, frequency, load factor and applicable working system, etc.) do not match the actual use.
Operating frequency is too high.
Insulation damage due to poor coil manufacturing or mechanical damage.
The moving part is stuck.
The AC core is uneven or the magnetic air gap is too large.
AC contactor derives the double coil of DC operation, because the normally closed interlocking contact welding does not release, and the coil is overheated.

Processing method:

Adjust the power supply voltage.
Exchange coils or contactors.
Select other suitable contactors.
Replace the coil to remove the obstacle that causes mechanical damage to the coil.
Specially designed coils.
Eliminate jamming.
Clear the pole face or change the core.
Adjust the interlocking contact parameters and replace the burnt coil.
