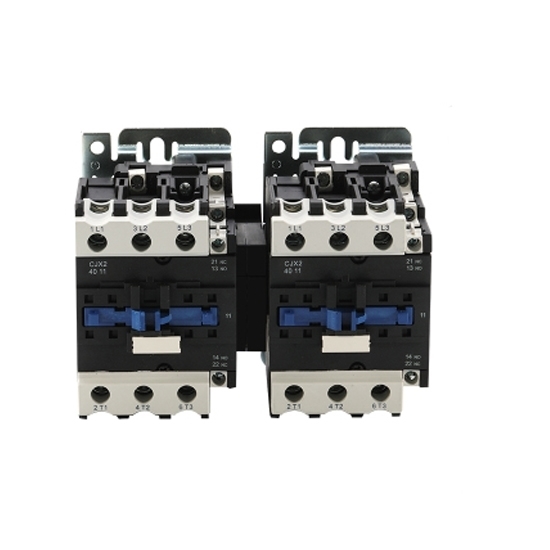

50 amp Mechanical Interlock AC Contactor

5 out of 5 based on 1 reviews | Write a review

$124.29

50A 3 pole/ 4 pole normally open mechanical interlocking AC contactor is a combination of two reversing contactor and a mechanical interlock, which meets IEC standard, auxiliary contact 2NC, coil rated voltage from 24V AC, 36V, 48V to 380V.

Coil Rated Voltage *
Contact Form *

SKU: ATO-ACCON-50N

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

High performance mechanical interlocking contactor is an electrically controlled switch constructed with a mechanical interlock and two revering contactor, which is used for switching an electrical power circuit.

Specification

Model			ATO-CJX2-50N
Rated Operational Current	380V	AC-3	50A
		AC-4	24A
	660V	AC-3	39A
		AC-4	12A
Conventional Heating Current			80A
Rated Insulation Voltage			690V
Power of Controllable 3-phase Squirrel-cage Motor (AC-3)	220V		15kW
	380V		22kW
	660V		33kW
Operational Frequency	Electric Life	AC-3	600 times/h
		AC-4	150 times/h
	Mechanical Life		3600 times/h
Service Life	Electric Life (10⁴ Operations)	AC-3	60
		AC-4	15
	Mechanical Life (10⁴Operations)		800
Matching Fusing Model			RT16-63
Average Power Consumption (20℃) @ 50Hz	Pick-up		230VA
	Holding		32VA
Contact Form (Optional)			3P (Additional 1NO Auxiliary Contact) or 4P
Rail Size			35mm
Ambient Temperature			-5℃~+40℃
Altittude			≤2000m
Class of Pollution			Class 3
Installation Category			Ⅲ
Dimensions			200 x 128 x 116mm
Weight			3kg

Tips: Electromagnetic system of AC contactor

The electromagnetic system of the AC contactor is mainly composed of three parts: coil, iron core and armature. Its function is to make the armature and the iron core pull in or release by energizing or de-energizing the electromagnetic coil, thereby driving the moving contact and the static contact to close or break to realize the purpose of connecting or breaking the circuit.
