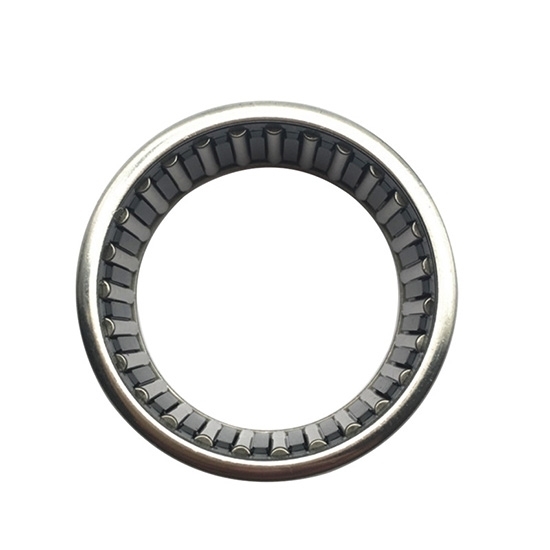

    10mm Needle Roller Bearing, Drawn Cup Type

    Cost effective drawn cup needle roller bearing features a 10mm inner diameter, 14mm outer diameter, width of 10mm, and P2 accuracy class. The needle bearing has the advantages of higher load capacity, it delivers the durability to handle the high rigidity of the shaft based on varied types of applications.
    SKU: ATO-NRB-10
    This product has a minimum quantity of 4
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy a 10mm needle roller bearing online. The drawn cup needle roller bearing comes with a 10mm diameter, limiting speed of 19000 rpm. The needle bearing is mainly used for bearing configurations with compact structure, low price and the inner hole of the bearing box cannot be used as the raceway of the needle roller and cage assembly.


    • Model: ATO-HK1010
    • Inner diameter: 10mm
    • Outer diameter: 14mm
    • Width: 10mm
    • Accuracy class: P2
    • Limiting speed: 19000 rpm
    • Basic load rating: Dynamic: 3900N, Static: 4800N
    • Bearing material: High carbon chromium bearing steel

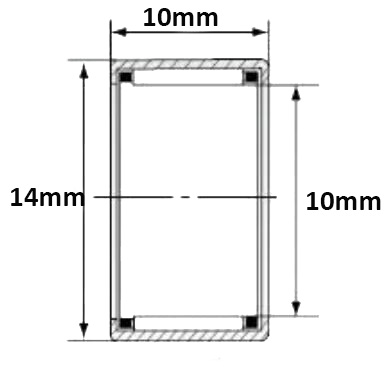

    Dimension (mm)

    Dimension of 10mm needle roller bearing


    Needle roller bearing application

    Tips: What is a needle roller bearing?

    Needle roller bearing is roller bearings with cylindrical roller, relative to their diameter, the rollers are both thin and long. These rollers are called needle rollers. Despite having a small cross-section, the bearing still has a high load-carrying capacity. Needle roller bearings are equipped with thin and long rollers, so the radial structure is compact, and its inner diameter size and load capacity are the same as other types of bearings, the outer diameter is the smallest, especially suitable for radial installation size limited support structure.
