    40mm Spherical Roller Bearing, Double Row

    4 out of 5 based on 1 reviews | Write a review
    Cost-effective spherical roller bearing features two row, an inner diameter of 40mm, an outer diameter of 90mm and a width of 33mm, P5 accuracy class. The double-row spherical roller bearing is widely used in papermaking machinery, reduction gears, crushers, etc.
    SKU: ATO-SRB-40
    This product has a minimum quantity of 2
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High-accuracy 40mm spherical roller bearing comes with an outer diameter of 90mm, width of 33mm, oil lubrication limit speed of 2600 rpm, and grease lubrication limit speed of 2300 rpm. The double-row spherical roller bearing has low noise, long service life and is not easy to get hot.


    • Model: ATO-22308
    • Inner diameter: 40mm
    • Outer diameter: 90mm
    • Width: 33mm
    • Accuracy class: P5
    • Oil lubrication limit speed: 2600 rpm
    • Grease lubrication limit speed: 2300 rpm
    • Cr: 840 kN
    • Cor15468 kN
    • Bearing material: Bearing steel

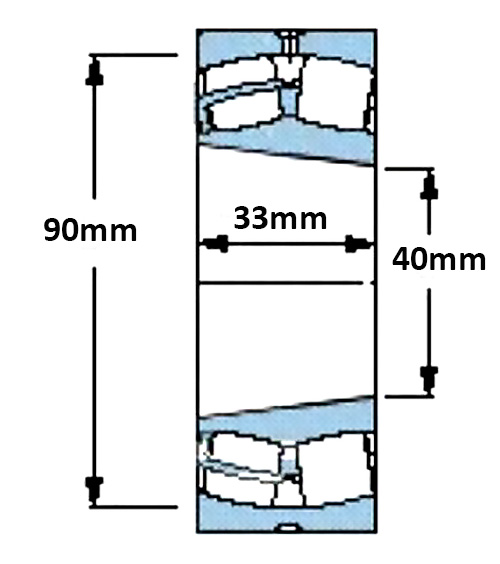

    Dimension (mm)

    Dimension of 40mm spherical roller bearing


    Spherical roller bearing application

    Tips: What are spherical roller bearings used for?

    Spherical Roller Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection and with relatively heavy radial loads and some axial loads in either direction.
