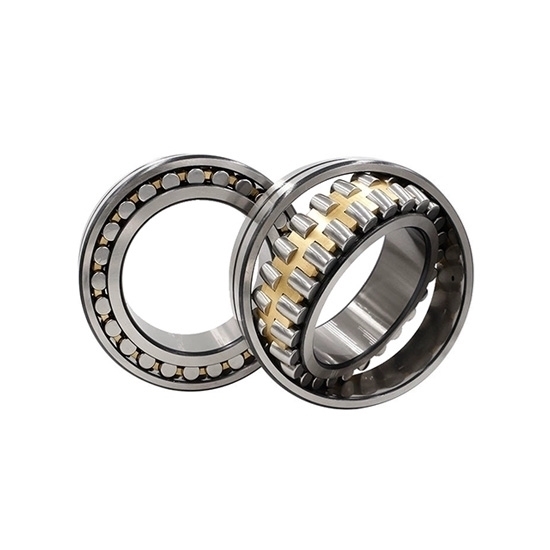

55mm Spherical Roller Bearing, Double Row

Write a review

$100.15

Double-row spherical roller bearing for sale online. The roller bearing with an inner diameter of 55mm, an outer diameter of 120mm and a width of 43mm, P5 accuracy class. The high-speed spherical roller bearing suitable for applications that support high radial and oscillating axial loads.

SKU: ATO-SRB-55

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Cheap price spherical roller bearing comes with an inner diameter of 55mm, outer diameter of 120mm, oil lubrication limit speed of 2600 rpm, and grease lubrication limit speed of 2300 rpm. The high-speed spherical roller bearing has the advantages of small size, low noise ad long service life.

Specification

Model: ATO-22311
Inner diameter: 55mm
Outer diameter: 120mm
Width: 43mm
Accuracy class: P5
Oil lubrication limit speed: 2600 rpm
Grease lubrication limit speed: 2300 rpm
Cr: 568kN
Cor: 903 kN
Bearing material: Bearing steel

Dimension (mm)

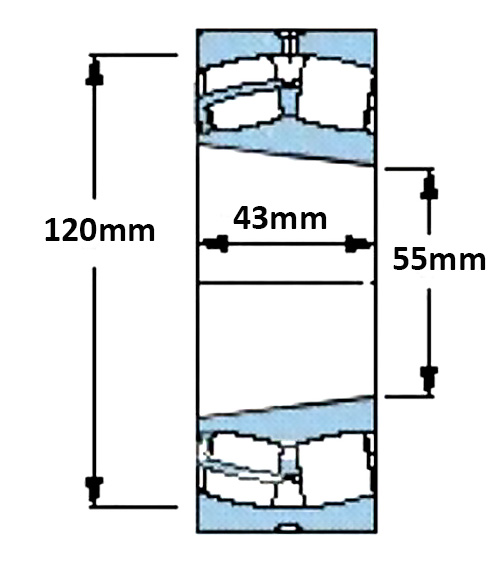

Dimension of 55mm spherical roller bearing

Application

Spherical roller bearing application

Tips: Why choose a spherical roller bearing?

Spherical roller bearings offer an excellent service life combined with high levels of reliability. They minimize friction and keep noise and vibration during operation. These barrel-shaped spherical rollers reduce friction within the bearing and allow the bearing to accommodate angular misalignment.
