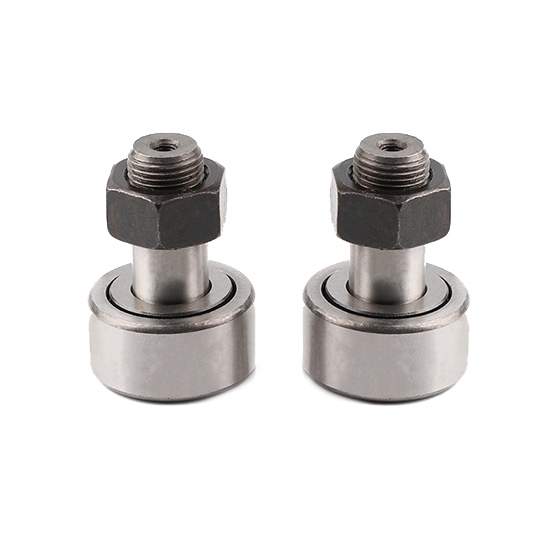

Track Roller Bearing, Stud Type, Diameter 12mm

$37.20

High-performance track roller bearing comes with an inner diameter of 12mm, outer diameter of 30mm, width is 14mm, and P4 accuracy class. The stud-type track roller bearing is made of high-grade bearing steel, more durable and longer working life.

SKU: ATO-TRB-12

This product has a minimum quantity of 4

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

12mm track roller bearing for sales with the eccentric 0.25e, the cam follower bearing is composed of outer ring cages pressed in the rolling bodies' axial guidance and the retaining edges steps which form highly effective gap sealing.

Specification

Model: ATO-CF12
Inner diameter: 12mm
Outer diameter: 30mm
Width: 14mm
Accuracy class: P4
Eccentric: 0.25e
Basic load rating: Dynamic: 270kgf, Static: 170kgf
Material: Bearing steel

Dimension (mm)

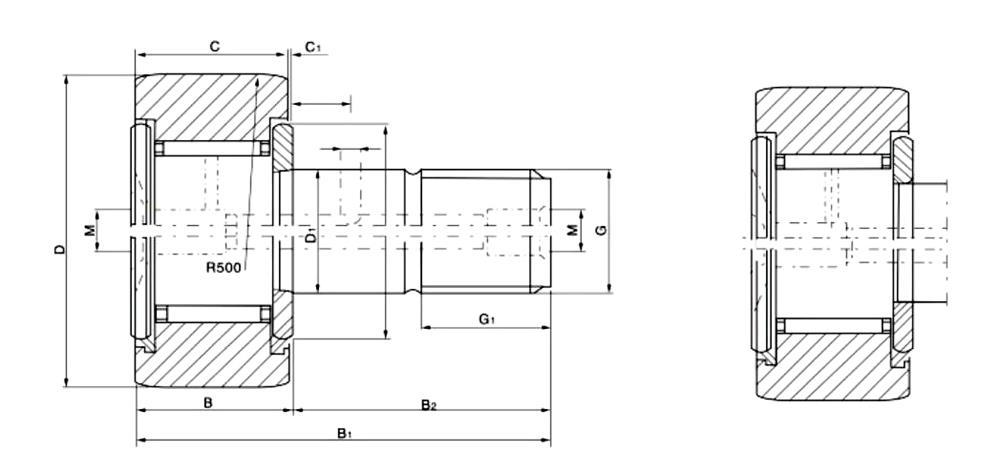

Dimension of track roller bearing

Model	D	C	G	D1	G1	B max	B1 max	B2	C1
ATO-CF12	30	14	M6*1	12	8	12.2	28.2	16	0.6

Application

Track roller bearing application

Tips: What does a cam follower bearing do?

The cam follower bearing is a compact and highly rigid bearing with a shaft. It contains needle rollers and is used as a guide roller for cam mechanisms or straight motion. Since its outer ring rotates while keeping direct contact with the mating surface, this product is thick-walled and designed to bear an impact load.
