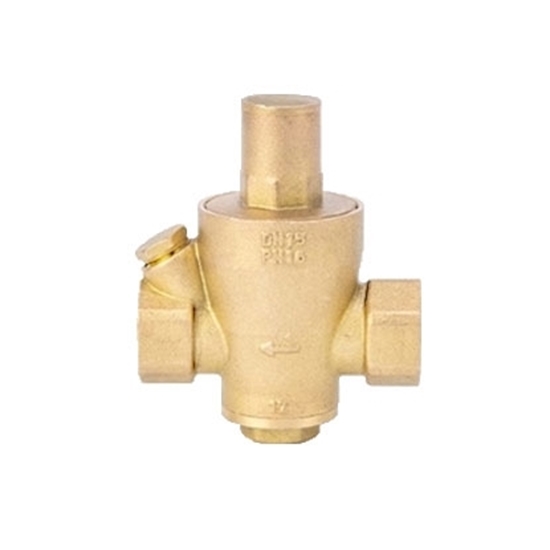

1/2 Inch Adjusting Water Pressure Regulator

The 1/2 Inch adjustable water pressure reducing valve has a built-in filter (removable for cleaning) and an optional gauge, which allows users to adjust the water pressure for outdoor and home use.

Specification

• Model: ATO-WPR-DN15
• Drive Mode: Hydraulic control
• Size: 1/2 Inch
• Nominal pressure: 1.6 Mpa
• Structure Type: Adjustable
• Mode of Action: Double acting
• Nominal diameter: DN 15mm
• Type (Channel Location): Straight through
• Function: Decompression type
• Connection Method: European standard G thread
• Lining Material: Rubber
• Flow Direction: One way
• Working Pressure: 0.6 Mpa
• Operating Temperature: -20℃~+80℃

• Weight: 3.69kg
• Dimension: 150 x 150 x 100mm

1/2 Inch Water Pressure Regulator Detail

Water Pressure Regulator Applications

Tips: How to install a water pressure regulator?

• The water pressure regulator is generally installed after the water filter, before the oil mist or fixed value, and be careful not to reverse its inlet and outlet, the regulator should be used when the knob should be relaxed, so that the diaphragm is often deformed by pressure and affect its performance.
• For the convenience of operation and maintenance, the adjusting water pressure regulator is generally installed upright on a horizontal pipe.
• Installation should pay attention to make the flow direction of the medium in the pipeline and the direction of the arrow shown on the valve rest.
• In order to prevent the water pressure regulator after the pressure overpressure, should be not less than 4M away from the valve outlet to install a tap Water pressure reducing valve.
