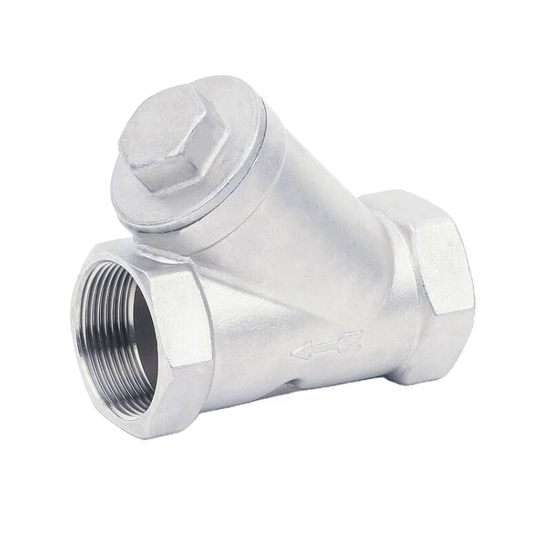

1 inch Stainless Steel Y Strainer

Note: This Y type strainer cannot be used for drinking water.

1 inch (DN25) stainless steel Y strainer features 800PSI working pressure, SS 304/316 material, optional BSP, BSPT, and NPT threads, commonly used in various industrial applications, such as chemical processing, oil and gas, water treatment, and food processing.

Specifications

• Model: ATO-T11F-800WOG (P/R)
• Type: Y Type Strainer
• Nominal Diameter: 1 inch (DN25)
• Working Pressure: 800PSI
• Product Material: 304/316 Stainless Steel
• Connection Form: Thread
• Thread Standard: BSP, BSPT, NPT
• Temperature Range: -20°C~180°C
• Weight: 0.365kg

Dimensions (Unit: mm)

Applications

Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.

Tips: Y-Type Strainer vs. Other Type Strainers

Y-type strainers are similar to other types of strainers, such as basket strainers and duplex strainers, in that they are used to filter unwanted debris and particles from pipelines. However, Y-type strainers have a specific Y-shaped configuration that allows for more efficient filtration and less pressure drop than other types of strainers. Additionally, Y-type strainers are generally more compact and easier to install and maintain than other types of strainers.
