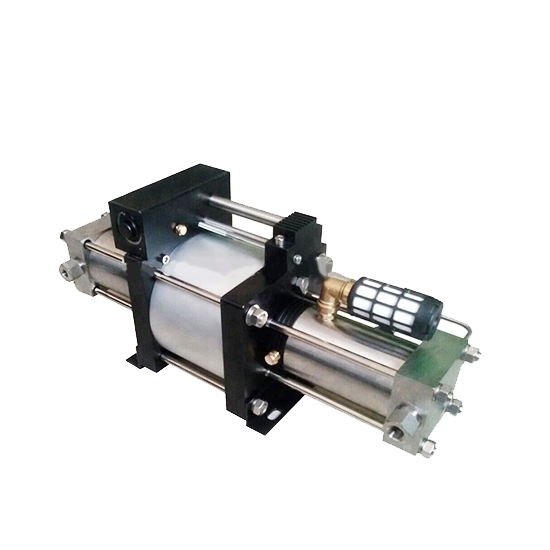

10:1 Air Pressure Booster, 3.5-80 bar (50-1160 psi)

5 out of 5 based on 1 reviews | Write a review

$3,595.23

ATO air pressure booster with 10:1 ratio, 3.5-80 bar gas inlet pressure, 80 bar maximum outlet gas pressure, 2-8 bar dirven air pressure, 410 L/min Maximum flow. Based on the air consumption of 1.0 M³/min when the driving pressure is 7 bar.

SKU: ATO-APB-10:1

Qty:

30-day Returns

Free Shipping

Delivery date: 10-20 days

Overview

ATO 10: 1 air booster with high pressure, pneumatic power, air driven fuel and oil-free. Formula to calculate gas outlet pressure PB is 10Pa+ Pi, connection: gas Inlet / gas outlet PT thread 3/8".

Features:

Compressed air driven no electricity required (connect to normal air compressor).
ln order to extend the lifetime of the pump, the driving air pressure should not be higher than 8 bar.
No airline lubricator required.
Hydrocarbon free separation between air and gas sections pressures to 80Mpa (11,600psi).
Wide range of models with different ratios
Built in cooling on most models.

Specification:

Mode	ATO-DGD-10
Pressure boost ratio	10:1
Min. gas Inlet pressure PA	3.5 bar
Max.gas Inlet pressure PA	80 bar
Max. gas outlet pressure PB	80 bar
Drive piston diameter	160mm
Driven air pressure PL	2 bar- 8 bar
Max. driving air pressure	10 bar
Formula to calculate gas outlet pressure PB	10XPA+ Pi
Connection: Gas Inlet / Gas outlet (PT thread)	PT 3/8" (Default PT thread, please contact us if NPT thread is required)
Driven Airinlet Port	G 1/2" (Default G thread, please contact us if NPT thread is required)
Max. flow at driven air pressure of 6 bar	410 L/min (at PA of 6 bar)
Weight	25kg

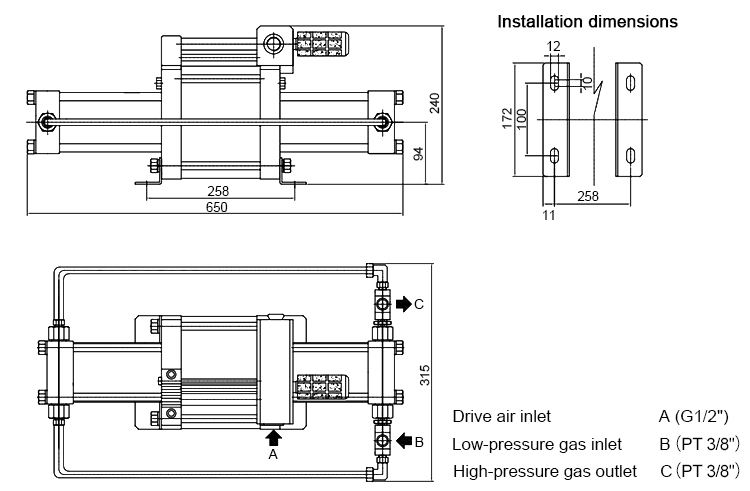

Dimension: (unit:mm)

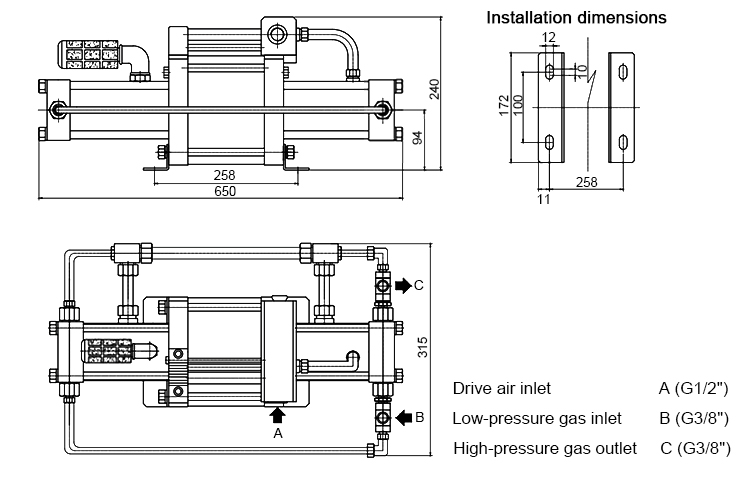

10:1 air pressure booster dimension

Details

Tips: Where are ATO air pressure booster application scenarios？

Pressure test with gas transfer and filling.
(Ar/ He/ H2/ O2/ N2ICO2/ NO2/ CH4/ C2H2/ LNG/ ILPG/ CNG/ FM200/ SF6/ H2S etc.)
Charging of gas cylinder and accumulator with nitrogen.
Supply for isolating gas systems.
Gas assisted injection molding
Transfer of oxygen cylinders
Charging of breathing air bottles.
