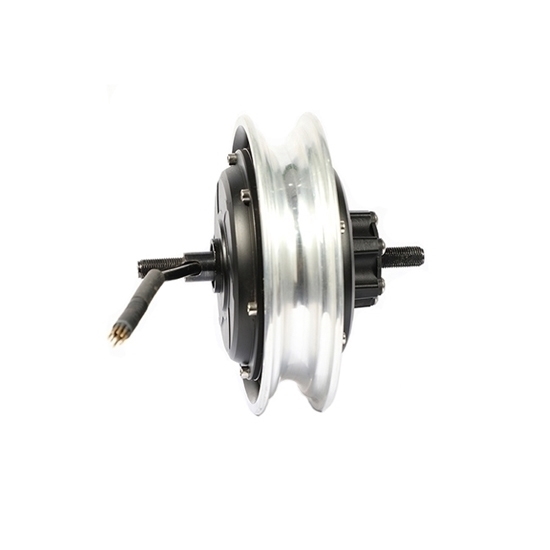

    10 Inch Hub Motor, 350W, 36V/ 48V, 30 N.m, Gearless

    $288.54
    Buy 10 inch hub motor with cheap price. It is for rear wheel of your bicycle and the dropout is 119mm. With the rated voltages of 36V and 48V, your ebike can run at a speed of 25 km/ h. 350W rated power, 1:4.4 reduction ratio, 30 N.m torque, gearless design.
    SKU: ATO-GHM350
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    The 350W in wheel motor is suitable for 10” diameter wheel. It is an brushless ebike hub motor which can work in the environment of -20℃ - 45℃. Ride with a 10 inch hub motor, and you’ll fit in perfectly with your E-bike.

    Specification

    Model ATO-105-10
    Motor type Brushless motor
    Rated power 350W
    Rated voltage 36V/ 48V (optional)
    Max torque 30 N.m
    Reduction ratio 1:4.4
    Installation position Rear
    Motor structure Gearless
    Wheel diameter 10 inch
    Rated speed 25 km/ h
    Dropout 119mm
    Brake type V/ Disc brake
    Operation temperature -20℃ - 45℃
    Efficiency ≥82%
    Color Black
    Cabling route Shaft center right/ left
    Noise grade ≤55 dB
    IP grade IP65
    Salt spray test standard 24/ 96 h
    Drive and freewheel 6-9s
    Weight 4kg

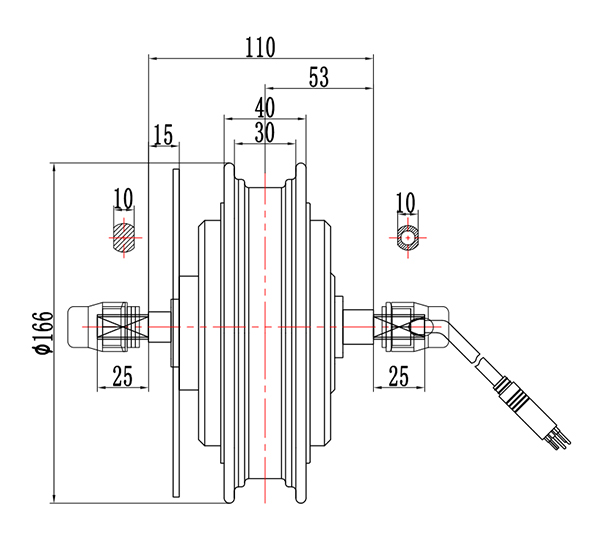

    Dimention (Unit: mm)

    Dimension of ATO 10 inch gearless hub motor

    Tips: Why do you need a 10 inch gearless hub motor?

    The use of 10 inch gearless hub motors can omit a large number of transmission components, making the vehicle structure simpler. For traditional vehicles, clutches, transmissions, drive shafts, differentials, and even transfer cases are all essential. These components are not only heavy and make the structure of the vehicle more complex, but also require regular maintenance. But ATO 10 inch hub motor solves this problem well. In addition to the simpler structure, vehicles driven by in wheel hub motors can achieve better space utilization, and at the same time, the transmission efficiency is much higher.
