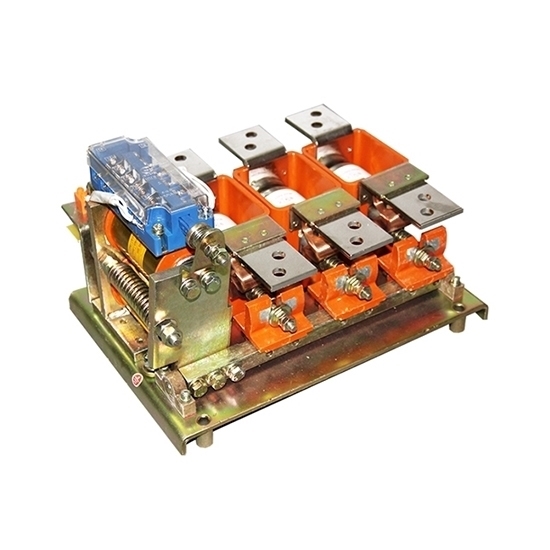

    3 Phase AC Vacuum Contactor, 1000A, 1140V

    $499.51
    ATO provides 1.14 kV ac vacuum contactor at affordable price. Coil voltage of 36V, 110V, 220V, 380V can be customized. It is a 3 phase contactor with 1000A rated current, 2±0.5 mm open distance, 190±20N final power. The contactor shell is made of high-quality flame-retardant materials with high strength, high temperature resistance and corrosion resistance.
    SKU: ATO-AVC-1000
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Best-selling three phase 110V/ 220V contactor is equipped with vacuum tubes. AC 50Hz or 60Hz, 4200V main circuit, 2500V auxiliary circuit, 2000V control circuit. It has the advantages of large breaking capacity, 3000000 times long mechanical life and high reliability in harsh environments.

    Specification

    Model ATO-CKJ5-1000-1140
    Rated voltage Main circuit 1140V
    Control circuit 36, 110, 220, 380V
    Rated current 1000A
    Main contact parameter Open distance 2±0.5 mm
    Over distance >1.5 mm
    Final power 190±20 N
    Power frequency withstand voltage Main circuit 4200V
    Auxiliary circuit 2500V
    Control circuit 2000V
    Phase 3
    Frequency AC 50Hz or 60Hz
    Making capacity 10 le 100 times
    Breaking capacity 8 le 25 times
    Max making & breaking capacity 8500 3 times
    Electric life AC3 600000 times
    AC4 5000 times
    Electrical life 3000000 times
    Function Device protection
    Electricity type Vacuum
    Ambient temperature -25℃ to 40℃
    Packaging details Standard package or according to customer's requirements
    Weight 32kg

    AC vacuum contactor outline and installation dimension (Unit: mm)

    ATO 630A ac vacuum contactor outline and installation dimension

    Tips: Precautions for vacuum AC contactor installation

    1. Before installation and use, check whether the rated voltage of the coil is consistent with the actual voltage used.
    2. Before use, wipe off the anti-rust grease or rust on the iron core with gasoline. Avoid sticking in the process of use, resulting in power failure and unable to release.
    3. When installing, it is generally installed vertically, and the inclination angle should not be too large and should not exceed 5°, otherwise it will affect the performance of the AC contactor.
    4. When installing the vacuum AC contactor, especially when connecting the wires, pay attention to clean up the broken wires to avoid falling into the contactor, causing the contactor to jam and causing the coil to burn out.
    5. When connecting the wires, be sure not to expose the metal parts of the wires to the air to avoid oxidation. Tighten each screw to avoid poor wire contact due to vibration.
