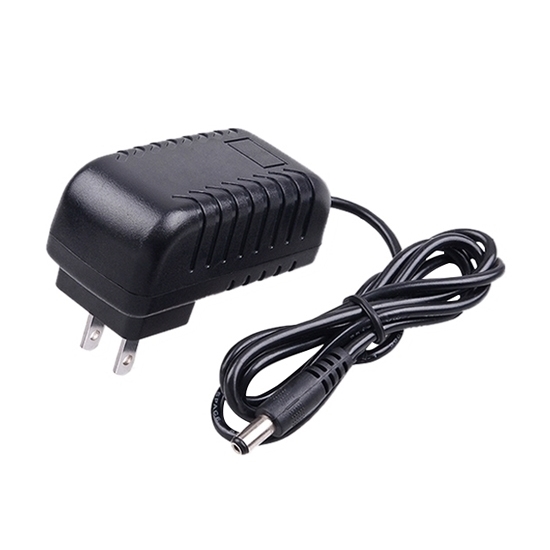

    15V AC to DC Wall Adapter, 30W, 2A

    $42.74
    Wall adapter power supply at affordable price, which featuring output voltage 15 volt, rated power 30 watt, output current 2A, capacity 2000mA, B/ US/ EUR/ JPN/ UK/ GER/ AUS seven plugs can be chosen. It is suitable for trolley audio, home audio, battery audio and scanner.
    SKU: ATO-AWA-SP-015
    *
    This product has a minimum quantity of 3
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Good price wall mount AC adapter with 98% high efficiency, input ripple ≤80mV, 5.5*2.5mm (compatible 5.5*2.1mm) DC port size and fireproof plastic enclosure shell.

    Specification

    Model ATO-AWA-SP-015
    Rated power 30W
    Output voltage 15VDC
    Output current 2A
    Input voltage 100-250VAC
    Frequency 50-60Hz
    DC port size 5.5*2.5mm (compatible 5.5*2.1mm)
    Efficiency 98%
    Shell material Fireproof plastic enclosure
    Colour Black
    Capacity 2000mA
    Input ripple ≤80mV
    Applicable equipment Trolley audio/ home audio/ battery audio/ scanner
    Size 78mm*43mm*31mm
    Certificates CE, FCC, RoHS
    Plug GB/ US/ EUR/ JPN/ UK/ GER/ AUS
    Warranty 2 years

    Dimension (mm)

    Dimension of AC wall adapter

    Tips: How to Solve the Electromagnetic Compatibility of AC Wall Adapter?

    Enhance the anti-interference ability of the interfered body. The input and output of the power adapter are also the conduction lines of the interference source and the pick-up source for receiving radio frequency interference signals. We generally need to take effective measures when designing, using the necessary common mode and Differential mode suppression circuit, at the same time, certain filtering and anti-electromagnetic shielding measures must be taken to reduce the entry of interference, and various isolation measures shall be taken as far as possible when conditions permit, so as to block the propagation of interference. And lightning protection circuit is also an important part of it. Commonly used lightning protection devices include gas discharge tubes, TVS, etc.
    Simply put, any electronic device or electronic system does not affect other nearby electronic devices due to its own parasitic occurrence or electromagnetic leakage, or electronic interference with the normal operation of the system or the formation of electronic pollution, and at the same time, it can remain normal under certain working conditions. Work, it is considered to have electromagnetic compatibility. Electromagnetic compatibility is the most basic standard that any electronic product needs to meet, and it is the most basic guarantee for the user by the manufacturer.
