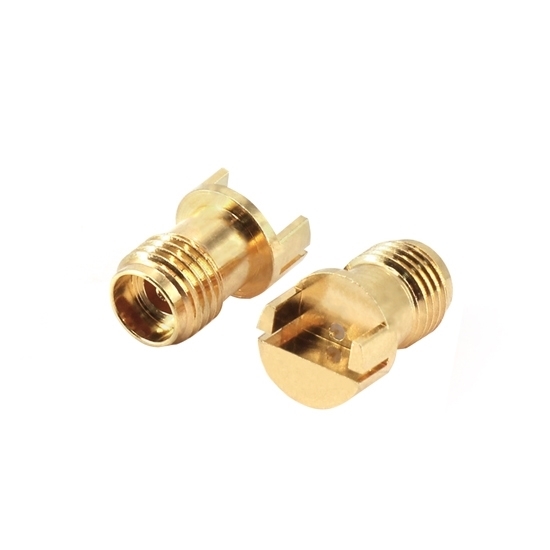

2.92mm Female RF Coaxial Connector, PCB Edge Mount

5 out of 5 based on 1 reviews | Write a review

$65.49

2.92mm female (jack) radio frequency (RF) coaxial connector is a vital component for transmitting signals between devices. It serves as a cable connector, linking coaxial cables that carry RF signals, PCB edge mount, and a frequency range of DC~40GHz, with applications ranging from TV aerials to antennas.

SKU: ATO-FFCC-292PCB

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Proposition 65 Warning

2.92mm female (jack) radio frequency (RF) coaxial connectors provide reliable and secure connections, minimizing signal loss and interference. With their precise construction and compatibility with coaxial cables, they offer durability and efficiency in transmitting radio frequency signals for various applications, especially in TV and communication systems.

Specification

Model: ATO-29FB12E02-023M
Frequency Range: DC~40GHz
Standing Wave Ratio (VSWR): 1.15:1 (Max.)
Impedance: 50 Ohm
Insertion Loss: 0.25dB (Max.)
Dielectric Withstand Voltage: 1000V
Insulation Resistance: ≥5000 Ohm
Connector Type A: 2.92mm-Female
Connector Type B: PCB Board (Printed Circuit Board) Edge Mount
Working Temperature: -55℃~+165℃
Inner Conductor Material: Gold Plated Bronze
Outer Conductor Material: Gold Plated Brass
Insulator: PTFE
Service Life: ≥500

Dimension (Unit: mm)

φD: 0.76mm/0.030"
L: 0.6mm/0.023"
Applicable PCB Thickness: 0.61mm/0.024"

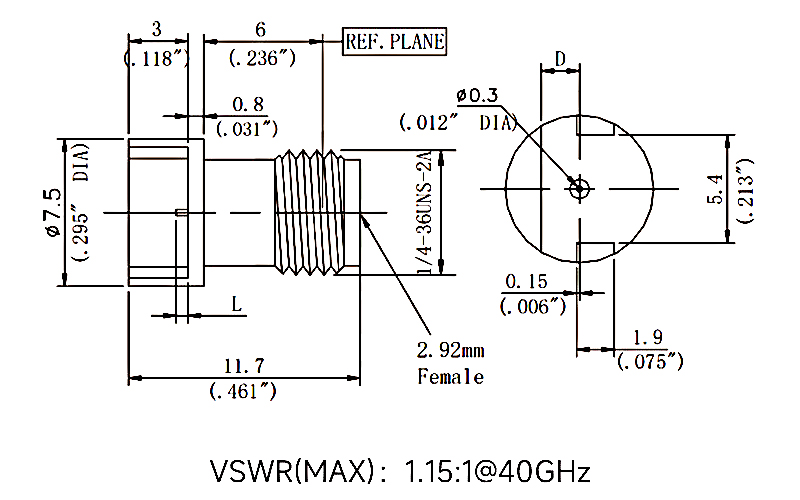

2.92mm female RF edge mount connector dimension

Tips: Where are RF coaxial connectors used?

RF coaxial connectors find widespread use in various applications across industries due to their capability to transmit radio frequency signals efficiently. They are commonly employed in telecommunications, connecting antennas to devices like radios and cellular network equipment. In the field of electronics, these connectors are essential for establishing connections between different components in circuits, ensuring reliable signal transmission in devices like TVs, radios, and computers. RF coaxial connectors are extensively used in aerospace and defense applications, linking communication systems and radar equipment. Moreover, they play a crucial role in medical equipment, facilitating the transmission of signals in devices such as MRI machines and medical imaging systems. Overall, RF coaxial connectors serve as integral components in diverse sectors, enabling efficient and high-quality signal transmission.

*WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
