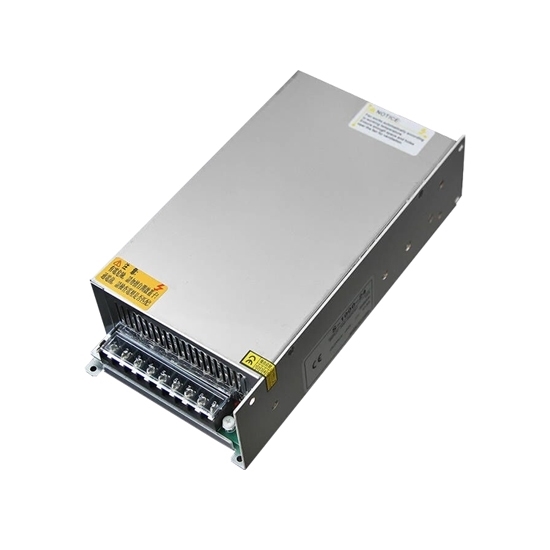

    24V DC 1000W Switching Power Supply

    $197.54
    High quality 24V DC, 1000W switching power supply uses brand new electronic components, ensuring the production quality of the power supply, with overload, over-voltage, overheating and short circuit protection functions. High performance switch power supply widely used in LED Strip, Audio Power Amplifier, LED Lighting, Light Box Billboard, etc.
    SKU: ATO-SMPS-1000-24
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Features

    • Excellent magnetic core enameled wire, high temperature resistance
    • 1000W switching power supply with high voltage resistance, low loss, high capacity
    • Iron-silicon aluminum magnetic ring, lower working temperature
    • Highly efficient heat dissipation, low fan noise
    • High working efficiency, stable output
    • Exquisite appearance, small size, stable performance

    Specification

    Model ATO-MS-1000-24
    Output
    DC Voltage 24V
    Rated Current 41.6A
    Rated Power 1000W
    Ripple & Noise <150mVp-p
    Voltage Accuracy ±1%
    Voltage Adjustment Range ±10%
    Load Adjustment Rate <±0.5%
    Line Adjustment Rate <±0.5%
    Input Voltage Range 180~264VAC; 254~370VDC
    Frequency Range 47~63Hz
    Efficiency (Typ.) >85%
    AC Current 220VAC, 8A
    Inrush Current 60A 230VAC
    Setup, Rise, Holdup Time 200ms, 50ms, 20ms: 230V AC
    Protection Overload 105~135% rated output power
    Protection type: Constant current limiting, recovers automatically after fault condition is removed.
    Over temperature RTH3: Fan is always running, ≥90°C output shut down.
    Environment Working Temperature -10 ~ +50℃
    Working Humidity 20~90% RH
    Storage Temperature -20~+85℃
    Storage Humidity 10~95% RH
    Safety & EMC Withstand Voltage I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
    Leakage Current I/P-O/P, <6mA at 1.5kVAC; <1.5mA at 220VAC
    Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
    Others Dimension 291*132*68mm (L*W*H)
    Weight 2.4kg


    Dimensions (Unit: mm)

    1000W switching power supply dimension

    1000W switched mode power supply dimension

    1000W diagram

    Tips: Some common failures of SMPS

    1. If the switching power supply does not start vibrating, it is generally necessary to check whether the switching frequency is correct, whether the protection circuit is blocked, whether there is any problem with the voltage feedback circuit and current feedback circuit, and whether the switching tube is broken down.
    2. Transformer heats up or makes a "sizzling" sound, generally because the switching frequency is wrong.
    3. The output voltage power supply indicator flickers, commonly because there is a short circuit on the secondary side.

    When repairing the switching power supply, first use a multimeter to check whether each power component has a breakdown and short circuit, such as the power rectifier bridge stack, switch tube, high-frequency high-power rectifier tube, and whether the high-power resistor that suppresses inrush current is blown. Then check whether each output voltage port is abnormal.
