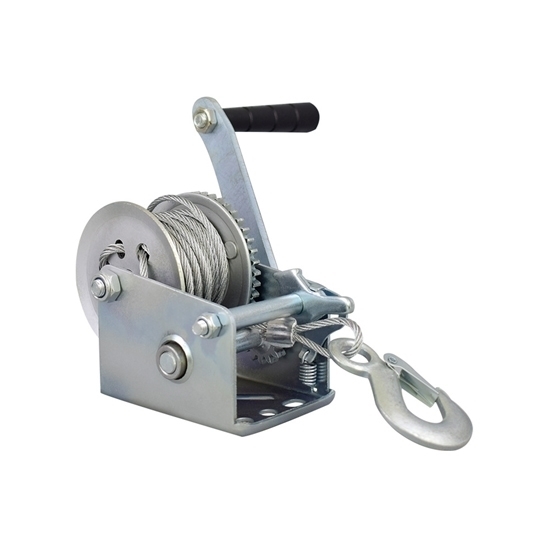

2500 lbs Hand Crank Winch

Manual crank winch is convenient for truck, car trailer, camper trailer, boat trailer, utility trailer, off road, vehicle recovery, etc., which is ideal for pulling, lifting and lowering items.

Specification

• Model: ATO-BQC2500
• Working Load: 2500 lbs (1.25 ton)
• Lifting Tension: 1600 lbs (0.8 ton)
• Breaking Strength: 3600 lbs (1.8 ton)
• Material: Rolled Steel
• Gear Ratio: 4.1:8.1
• Cable (Dia x L): Ø5mm x 8m
• Dimension: 245mm (L) x 100mm (W) x 183mm (H)
• Weight: 4.8kg

Note*: Never exceed working load limit.

Details

Tips: How to choose a hand crank winch for vehicle recovery?

A hand winch is a valuable tool for vehicle recovery situations where a powered winch may not be available or practical to use. It can be a reliable and versatile option for pulling vehicles out of sticky situations, such as when stuck in mud, sand, or snow.

Here are some key points to consider when selecting a hand winch for vehicle recovery:

• Load Capacity: Determine the maximum weight of your vehicle and choose a hand winch with a suitable load capacity. It's generally recommended to select a winch with a rating at least 1.5 times the weight of your vehicle to ensure it can handle the load.
• Cable Length: Consider the distance you may need to pull your vehicle. Choose a hand winch with a cable length that allows you to reach anchor points or sturdy trees/objects nearby. Longer cables provide more flexibility, but keep in mind that longer lengths may require more effort to operate.
• Gear Ratio: The gear ratio determines the amount of pulling power the winch provides. Higher gear ratios provide more pulling power but require more effort to operate. A gear ratio of around 4:1 is a common choice for hand winches, striking a balance between power and ease of use.
• Construction and Durability: Look for a hand winch that is built with durable materials, such as high-quality steel. It should be able to withstand the rigors of vehicle recovery operations. Additionally, consider features like corrosion resistance, as winches are often exposed to outdoor elements.
• Safety Features: Check for safety features like a load-holding brake that keeps the load secure when you release the winch handle. This prevents the vehicle from rolling back or the cable from unspooling unintentionally.
• Portability: If you plan to carry the hand winch with you for off-road adventures, consider its weight and size. Lightweight and compact winches are easier to transport and store.
• Accessories: Some hand winches come with additional accessories like a mounting plate, handlebar straps, or hooks that can enhance their usability and versatility.
