    3 Phase AC Vacuum Contactor, 250A, 1140V

    $182.35
    ATO provides low price 4 pole 3 phase ac contactor with rated voltage of 1140V and rated current of 250A. 36V/ 110V/ 220V/ 380V control circuit can be selected. 2±0.2 mm open distance, 80±10N final power, AC 50Hz or 60Hz frequency.
    SKU: ATO-AVC-250
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Buy high performance 110 volt/ 220 volt coil ac vacuum contactor. Power frequency withstand voltage: 4200V main circuit, 2500V auxiliary circuit, 2000V control circuit. 10 Ie (100 times) making capacity and 8 Ie (25 times) breaking capacity. It especially applies to explosion electromagnetic starter and all sorts of power control equipment.

    Specification

    Model ATO-CKJ5-250-1140
    Rated voltage Main circuit 1140V
    Control circuit 36V, 110V, 220V, 380V
    Rated current 250A
    Main contact parameter Open distance 2±0.2 mm
    Over distance >1.5 mm
    Final power 80±10 N
    Power frequency withstand voltage Main circuit 4200V
    Auxiliary circuit 2500V
    Control circuit 2000V
    Phase 3
    Frequency AC 50Hz or 60Hz
    Making capacity 10 le 100 times
    Breaking capacity 8 le 25 times
    Max making & breaking capacity (A) 4500 3 times
    Electric life AC3 600000 times
    AC4 60000 times
    Electrical life 3000000 times
    Function Device protection
    Electricity type Vacuum
    Ambient temperature -25℃ to +40℃
    Packaging details Standard package or according to customer's requirements
    Weight 8kg

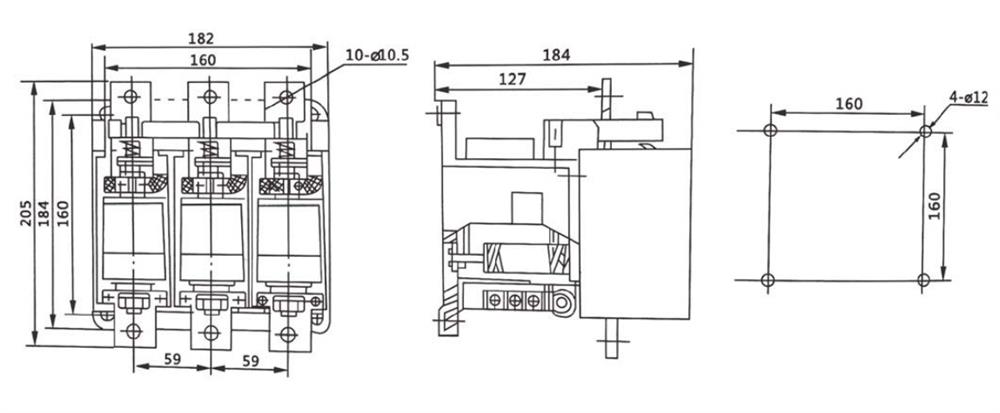

    AC vacuum contactor outline and installation dimension (Unit: mm)

    ATO ac vacuum contactor outline and installation dimension

    Tips: Advantages of ac vacuum contactors for sale on ATO

    ATO ac vacuum contactor has strong arc extinguishing ability, good pressure resistance, high operating frequency, long life, no arc spray, small size, light weight, and long maintenance cycle. The process requirements for the vacuum interrupter of the ac vacuum contactor are very high. If the process is poor, the vacuum of the interrupter is easy to drop. If the contact material of the ac vacuum contactor is not good, the phenomenon of "intercepting over-voltage" will occur when the current is interrupted. That is, when the current is interrupted, due to the strong arc extinguishing ability of the vacuum interrupter, the arc current is not cut off naturally at zero crossing, but suddenly drops from a certain value of the current to zero, resulting in a high overvoltage. Intercepting over-voltage will endanger the safe operation of electrical equipment.
