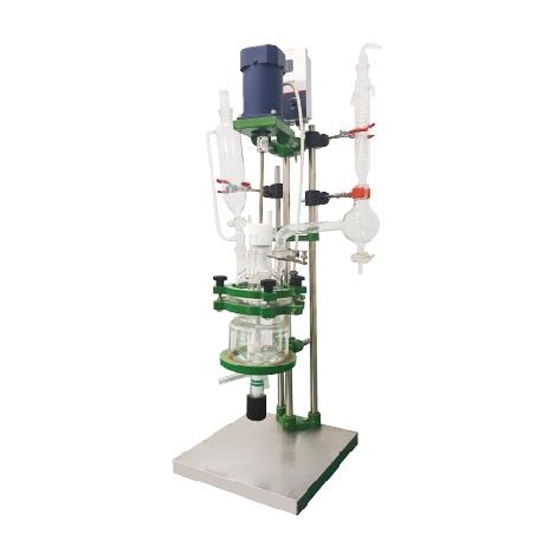

    2L Double Jacketed Glass Reactor

    5 out of 5 based on 1 reviews | Write a review
    $2,890.76
    Double jacketed glass reactor has a capacity of 2L and provides precise temperature control for optimal reaction conditions and reliable results. Our jacketed glass reactor is meticulously designed and crafted using premium materials to ensure exceptional durability and performance.
    SKU: ATO-JGR-2L
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The 2L double jacketed glass reactor is available at a low price and its modular design allows for easy expansion and integration with other equipment. It is easy to clean and maintain, minimizing downtime and maximizing productivity.

    Specification

    Model ATO-JGR-2
    Effective Volume in the Kettle 2L
    Condenser Heat Exchange Area 1 m2
    Constant Pressure Funnel Volume 0.25L
    Recovery Head Volume 0.25L
    Glass Component Material High borosilicate 3.3
    Main Frame Material SUS304
    Working Temperature -80~200°C
    Pressure in Kettle -0.098 Mpa
    Stirring Motor Power 90W
    Speed Control Mode Electronic speed control
    Speed Adjustment Range 0~1000 rpm
    Seal Material Fluorine rubber
    Heating Method Bath heating
    Power Supply 220V~240V
    Frequency 50/60HZ, 1P
    Dimension 1140*410*450mm
    Weight 40kg


    Features

    • 2L jacketed glass reactor adopts new high borosilicate glass, which has excellent stability and corrosion resistance.
    • Digital display frequency conversion speed control, stirring speed can be adjusted, and temperature control is accurate.
    • Double jacketed glass reactor assembly adopts a fluorine rubber seal to maintain the high precision seal under working conditions.
    • Modular design, easy to assemble, easy to upgrade and maintain.
    • Stainless steel frame, good stability.
    • Jacketed glass reactors can be customized according to customer requirements.

    Applications

    The glass-lined reactor finds application in various industries, serving as a versatile vessel for chemical reactions and processes due to its corrosion resistance and thermal stability. It is widely employed in the pharmaceutical, petrochemical, and food industries, among others.

    Glass lined reactor applications

    Tips: Can glass-lined reactors handle corrosive chemicals?

    Yes, glass-lined reactors are designed to handle corrosive chemicals. Glass lining refers to a layer of glass that is applied to the internal surfaces of the reactor, typically using a fusion process. This glass lining provides excellent resistance to corrosion, making it suitable for a wide range of corrosive chemicals.

    The glass lining acts as a barrier between the corrosive chemical and the metal surface of the reactor, protecting the metal from direct contact with the corrosive substance. The glass used for lining is typically a type of borosilicate glass, known for its high resistance to chemical attack.

    Glass-lined reactors are commonly used in industries such as chemical processing, pharmaceuticals, petrochemicals, and specialty chemicals, where corrosive substances are frequently handled. They offer several advantages, including:

    • Corrosion resistance: The glass lining provides exceptional resistance to a wide range of corrosive chemicals, including acids, alkalis, and organic solvents.
    • Cleanability: Glass surfaces are non-porous and smooth, making them easy to clean and preventing the buildup of residues that could potentially contaminate subsequent batches.
    • Thermal resistance: Glass-lined reactors can withstand a broad temperature range, typically from -20°C to 200°C or higher, depending on the specific design and glass type used.
    • Transparency: Glass allows for visual inspection of the contents inside the reactor, facilitating process monitoring and troubleshooting.

    While glass-lined reactors offer excellent corrosion resistance, it is important to note that they may not be suitable for all corrosive chemicals. Some extremely aggressive substances or highly reactive conditions may require alternative materials or specialized equipment. It is crucial to consult with experts and consider the specific chemical compatibility and process conditions when selecting a reactor for a particular application.
