3-1/3" DN100 Pneumatic Globe Valve

Write a review

$4,219.99

3 1/3" DN100 pneumatic globe valve is a single-seated shut-off valve, standard design, the valve body is made of 304 stainless steel. Suitable for gas and liquid media, working temperature -17 ~ 250 ℃. Nominal diameter DN100mm, rated flow coefficient 190KV, flow characteristics for fast-opening characteristics.

Through Medium *

SKU: ATO-PGV-DN100

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Proposition 65 Warning

Note: This globe valve cannot be used for drinking water.

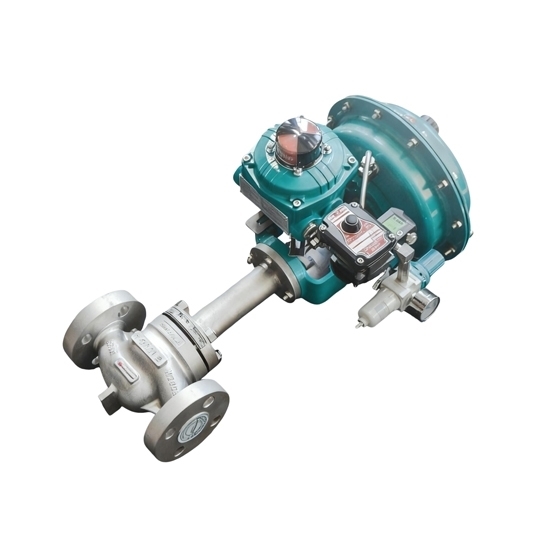

Pneumatic globe valve (DN100mm) with flange connection, equipped with pneumatic thin-film actuator, DC24V solenoid valve, limit switch and air filtering pressure reducing valve. Nominal pressure is PN16, providing reliable fluid control. This 3 1/3inch pneumatic disconnecting valve has the advantages of simple structure, rapid opening and closing without leakage, easy maintenance, waterproof, explosion-proof and so on.

Specification

Model	ATO-810D-1S2A-4DK41-DN100
Pipe Diameter	3-1/3" DN100
Nominal Pressure	PN16 MPa
Rated Flow Coefficient	190 KV
Rated Stroke	25 mm
Film Effective Area	400 cm²
Allowable Pressure Difference	Positive Action: 0.62
Allowable Pressure Difference	Opposite Reaction: 0.83
Signal Pressure	0 or 250
Allowable Leakage	Hard Seal: General: 10^-4 × valve rated capacity; Tight type: single-seat: 1.2 × 10^-7
Allowable Leakage	Soft Seal: Class VI
Operating Temperature	≤ 250℃
Connection Method	Flangeless
Medium of Use	Gas and Liquid
Valve Body Material	304
Bonnet Type	Standard type (-17 ~ +250℃)
Cover Type	Screw compression type
Sealing Material	V-shaped PTFE packing, reinforced PTFE packing, graphite braided packing, flexible graphite
Valve Core Type	Single-seat spool
Flow Characteristics	Quick opening characteristic
Included Accessories	Pneumatic diaphragm actuator, DC24V solenoid valve, limit switch, and air filter regulator.

Dimension (Unit: mm)

Pneumatic globe valve dimension

DN	A	L	H	H1	H4
100	340	352	110	234	400

Application

Pneumatic globe valve application

Tips: What is Pneumatic Globe Valve?

A pneumatic globe valve is a device that controls the opening and closing of a valve body by means of a pneumatic actuator. The valve design consists of a spherical or cylindrical spool that is pushed by a pneumatic actuator to cut off or regulate the fluid.

Pneumatic shut-off valves are widely used in industrial automation systems, especially in liquid or gas pipelines, to achieve precise control of fluids.

The operating principle of this type of valve is to drive the actuator by air or gas, so that it pushes the spool up and down, thus changing the size of the valve's passage to realize the regulation or closure of the fluid.

Pneumatic globe valves are usually characterized by fast response, remotely controllable and high-precision adjustment, and are suitable for industrial scenarios that require frequent flow adjustments or remote operation. It is widely used in chemical, petroleum, electric power and other industries, providing a reliable means of control for fluid piping systems.
