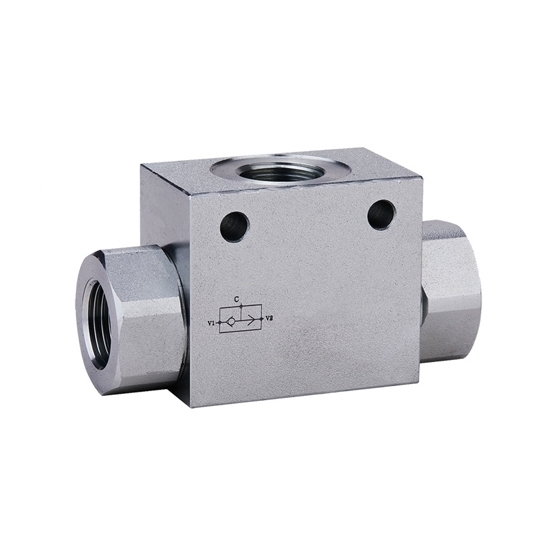

G3/8" Hydraulic Shuttle Valve, 3 Way

The basic design of a hydraulic shuttle valve consists of a housing with thread ports and a movable shuttle or spool inside the housing. The shuttle has seals that prevent fluid from leaking between ports.

Specification

• Model: ATO-VUSF-G3/8
• Shuttle Valve Type: 3 Way
• Body Material (Optional): Stainless Steel or Carbon Steel
• Connection Thread Port: G3/8 inch (DN10)
• Max. Pressure: 350bar
• Max. Flow: 45L/min
• Operating Temperature Range: +40℃~+70℃
• Ambient Temperature: -20℃~+60℃

Dimension (Unit: mm)

Tips: What are some troubleshooting tips for hydraulic shuttle valves?

When troubleshooting hydraulic shuttle valves, start by checking for leaks around the valve body and connections. Inspect the valve for any visible damage, such as cracks or dents, and ensure it is free from contamination. Verify that the inlet and outlet ports are properly connected and that there are no blockages obstructing the flow of hydraulic fluid. Check the system pressure and flow rates to ensure they are within the valve's operating range. If the valve is not switching properly, ensure that it is receiving the correct signals or pressures to actuate. If necessary, disassemble the valve for further inspection, cleaning, and lubrication of internal components. Consult the manufacturer's documentation or contact technical support for specific troubleshooting guidance tailored to your hydraulic shuttle valve model and application.
