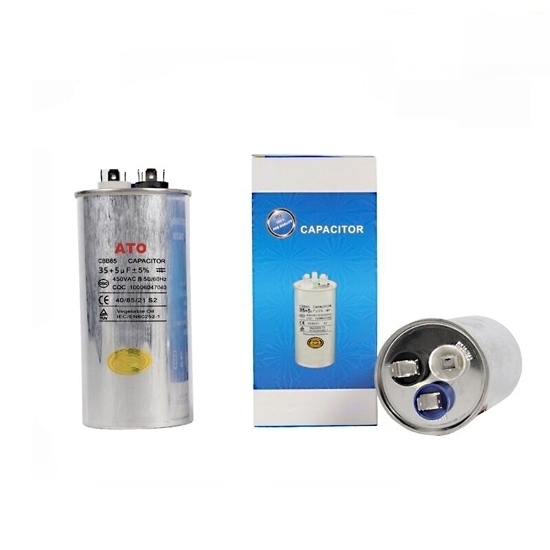

40/5 MFD Air Conditioner Capacitor, Dual Run Capacitor

Low cost 40+5 mfd air conditioner capacitor is used for air conditioners, refrigerators and compressors. It is also an HVAC capacitor that helps the motor start and run. Factory price 450V power capacitor with a dual run capacitor works perfectly.

Features and applications

40+5 mfd air conditioner capacitor has advantages of low dissipation, high insulation resistance, good self-healing character, anti-striking current, strong over-carrier capacity and steady electric performance, and reliable safety with the inner anti-explosion device, etc. It is applied in air conditioning, refrigerator, and compressor. ATO air conditioner capacitor is helpful for motors starting and running.

Specifications

Model: ATO-CBB65-405
Ambient Temperature: -40~85℃
Rated Voltage (AC): 450V
Range of Capacitance: 1+1~80+15
Testing Voltage (VAC): T-T: 2Un/2S, T-C: ≥2400VAC/2S
Dissipation Factor: tan δ≤0.002 (100Hz)
Operating Frequency: 50/60Hz
Capacitance Tolerance: ±5% or fulfilled upon request

40/5 MFD Air Conditioner Capacitor Dimensions (D: 50mm H: 125mm)

Tips: Working principle of air conditioner capacitor

The single-phase compressor of an air conditioner needs a capacitor to split the phase in the process of starting. The capacitor is easy to overload when it runs under a higher voltage of 220V in the household. Whether the capacitor is good or bad directly affects the start of the compressor, so the air conditioner can not start normally should first check the capacitor, capacitor damage is also often seen.

A capacitor induction motor has two windings, respectively, for a start winding and run winding. In the start winding in series with a large-capacity capacitor. When the running winding and the starting winding pass through a single-phase alternating current, the starting winding makes the starting winding current 90 degrees ahead of the running winding in time due to the capacitor, and the motor generates induction current when the magnetic field rotates, and the current interacts with the rotating magnetic field to make the motor rotate. The above is the explanation of the principle of the air conditioner capacitors.
