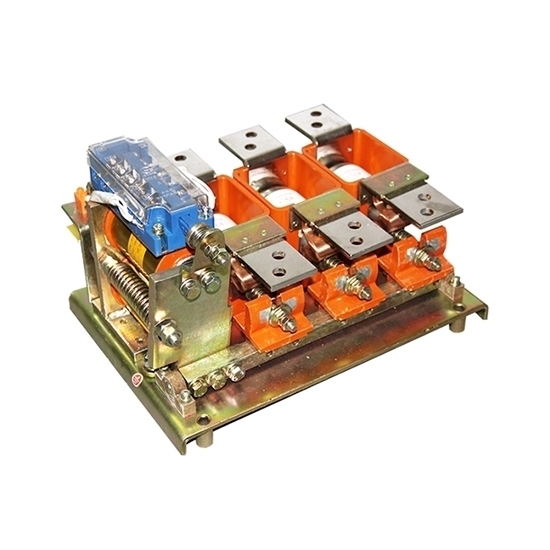

    3 Phase AC Vacuum Contactor, 630A, 1140V

    $299.41
    Buy three phase 630A, 1140 volt vacuum contactor at affordable price. Coil voltage 36V, 110V, 220V, 380V are available. The coil has good conductive effect, is not easy to generate heat, and is safe and reliable. AC 50 Hz or 60 Hz frequency, 2±0.5 mm open distance, 190±20 N final power.
    SKU: ATO-AVC-630
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    110 volt/ 220 volt coil 3 phase ac vacuum contactor uses vacuum electricity. The vacuum medium has high dielectric strength and fast medium recovery speed.

    Specification

    Model ATO-CKJ5-630-1140
    Rated voltage Main circuit 1140V
    Control circuit 36V, 110V, 220V, 380V
    Rated current 630A
    Main contact parameter Open distance 2±0.5 mm
    Over distance >1.5 mm
    Final power 190±20 N
    Power frequency withstand voltage Main circuit 4200V
    Auxiliary circuit 2500V
    Control circuit 2000V
    Phase 3
    Frequency AC 50Hz or 60Hz
    Making capacity 10 le 100 times
    Breaking capacity 8 le 25 times
    Max making & breaking capacity (A) 6000 3 times
    Electric life AC3 600000 times
    AC4 5000 times
    Electrical life 3000000 times
    Function Device protection
    Electricity type Vacuum
    Ambient temperature -25℃ to 40℃
    Packaging details Standard package or according to customer's requirements
    Weight 20kg

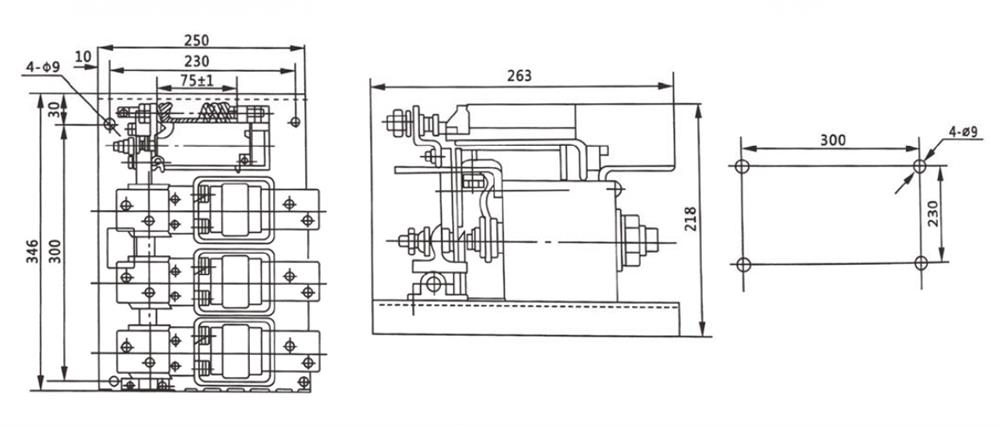

    AC vacuum contactor outline and installation dimension (Unit: mm)

    ATO 630A ac vacuum contactor outline and installation dimension

    Tips: Application of AC vacuum contactor

    AC vacuum contactors are widely used for the breaking of electric power and the control of electric circuits. It uses the main contact to open and close the circuit, and the auxiliary contact to execute the control command. The main contact generally has only a normally open contact, while the auxiliary contact often has two pairs of contacts with normally open and normally closed functions. Small contactors are often used as intermediate relays to cooperate with the main circuit. The contacts of the AC vacuum contactor are made of silver-tungsten alloy, which has good electrical conductivity and high temperature ablation resistance. The AC vacuum contactor is an intermediate control element. Its advantage is that it can frequently turn on and off the circuit and control the large current with a small current. The AC vacuum contactor working with the thermal relay can also play a certain role in overload protection for the load equipment. Because it relies on electromagnetic field suction to make and break work, compared to manual opening and closing circuits, the AC vacuum contactor is more efficient and more flexible in use. It can open and close multiple load lines at the same time, and it also has a self-locking function. After manually short-circuiting and closing, it can enter the self-locking state and continue to work.
