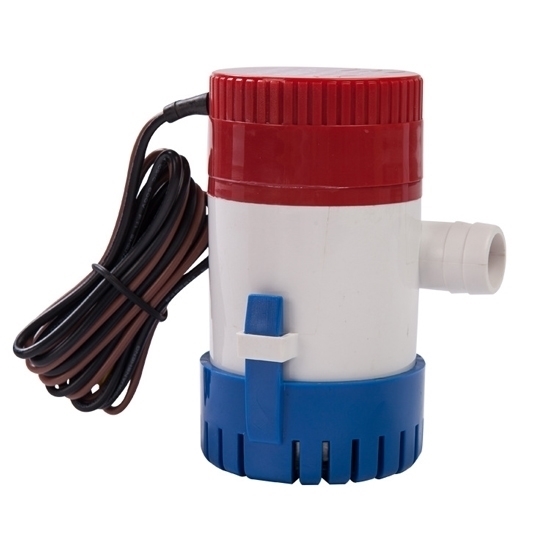

750 GPH Bilge Pump, 12V/24V

An electric bilge pump is a device used to remove water that accumulates in the bilge of a ship, boat, or any other vessel. This small bilge pump has filters that are easy to install and remove, allowing it to operate without vibration.

Features

• Bilge pump adopts special materials for waterproof sealing, super insulation, and high safety in use.
• The small bilge pump is driven by a permanent magnet motor, which has a small size and ultra-low noise.
• Electric bilge pump uses 12V/24V DC regulated power supply, which is efficient and energy-saving. Intermittent operation is more conducive to extending the service life of the pump.
• It comes with a grid filter that automatically filters larger objects, protects the normal operation of the pump, and extends the service life of the pump.
• It can extract finer particles, less oil and other impurities.
• Stainless steel pump shaft and thermoplastic pump body are durable and non-corrosive, and can be used in both fresh water and sea water.
• The filter device is easy to install and remove, ensuring the bilge pump can run freely without vibration.

Specification

• Model: ATO-SFBP750
• Flow Rate: 750 GPH
• Voltage and Current: 12V 2.5A, 24V 1.2A
• Outlet Diameter: 3/4 inch (19 mm)
• Wire Lead: 1m
• Head of Pump: 3m
• Max Fluid Temperature: 43 ℃ (110 ℉)
• Net Weight: 0.33kg

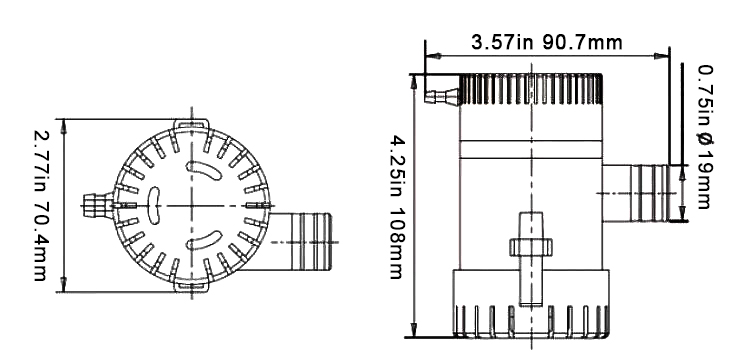

Dimension (Unit: mm)

Tips: How to Maintain Bilge Pump?

• Clean the bilge pump. Remove any debris, dirt or sediment that may have accumulated inside the pump. This will help the pump to work more efficiently and reduce the risk of clogs or blockages.
• Test the bilge pump. Turn on the small bilge pump to make sure it is working properly. Listen for any unusual sounds or vibrations, and check that the water is being pumped out at an appropriate rate.
• Check the electrical connections. Ensure that the electrical connections to the pump are secure and free from corrosion.
• Inspect the float switch. If your bilge pump has a float switch, make sure it is functioning correctly. The switch should activate the pump when the water level in the bilge reaches a certain height.
• Replace worn or damaged parts. If any part of the bilge pump is worn or damaged, replace it as soon as possible.
