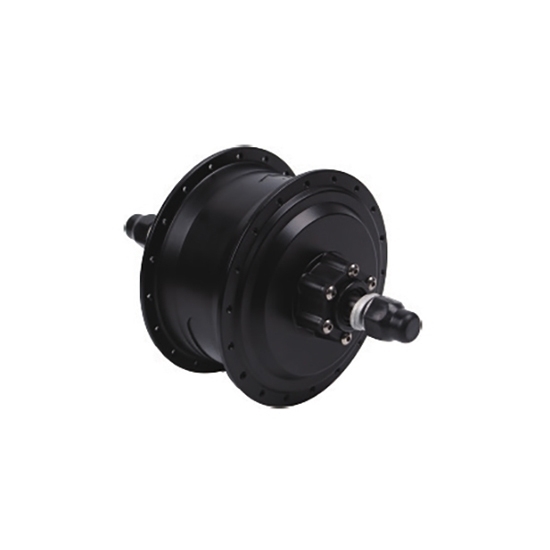

    750W Gear Hub Motor, 36V/ 48V/ 60V, 40 N.m

    5 out of 5 based on 1 reviews | Write a review
    750w high power electric gear hub motor for sale on ATO. You can buy 36V/ 48V/ 60V wheel hub motor at cheap price. The torque is 40 N.m, the reduction ratio is 1:5, the dropout is 135.5mm, and the installation place is front wheel. It has higher working efficiency, more than 82%.
    SKU: ATO-HM750
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy 36V-60V in wheel BLDC hub motor from ATO online store. The rated speed is up to 42 km/ h and the noise grade is under 55 dB. It adopts the V/ disc brake system and the protection grade is IP65.


    Model ATO-104CQ
    Motor type Brushless DC motor
    Max. power 750W
    Rated voltage 36V/ 48V/ 60V DC (optional)
    Max torque 40 N.m
    Reduction ratio 1:5
    Installation position Front
    Motor structure Gear
    Wheel diameter 26 inch is standard configuration (16-28 inch can be customized)
    Rated speed 25-42 km/ h
    Spoke specification 36H*12g/ 13g
    Dropout 135.5mm
    Brake type V/ Disc brake
    Operation temperature -20℃ - 45℃
    Efficiency ≥82%
    Color Black
    Cabling route Shaft center right
    Noise grade ≤55 dB
    IP grade IP65
    Salt spray test standard 24/ 96 h
    Drive and freewheel 6-7s
    Weight 5kg

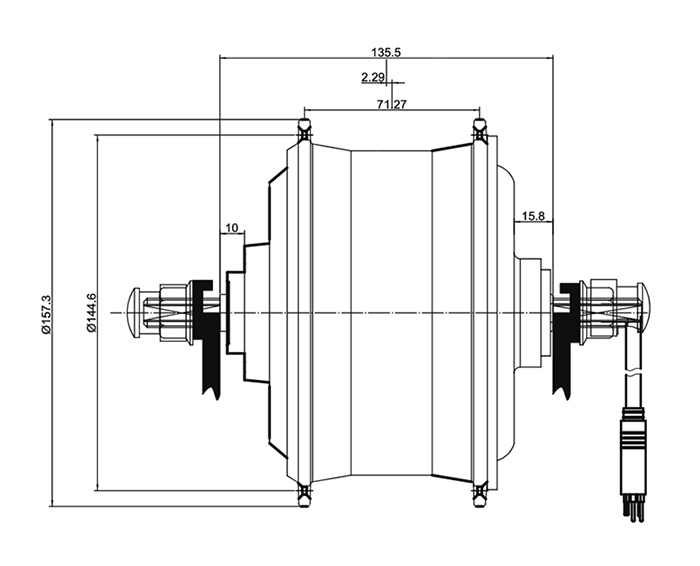

    Dimention (Unit: mm)

    Dimension of ATO 750W gear hub motor


    750W Gear Hub Motor Details

    Tips: Key technical issues in the research of hub motor systems

    • The electric hub motor system integrates multiple functions such as driving, braking, and bearing, making it difficult to optimize the design.
    • The internal space of the wheel is limited, which requires high power density and performance of the wheel hub motor, and the design is difficult.
    • The integration of the hub motor and the wheel results in a large unsprung mass, which deteriorates the suspension vibration isolation performance, and affects the vehicle's handling and safety under uneven road conditions. At the same time, the ebike hub motor will bear a large impact load on the road surface, and the motor has strict requirements for vibration resistance.
    • The problem of overheating and burning of the in wheel motor caused by insufficient cooling is likely to occur when the vehicle is under heavy load and low speed climbing long slopes. The heat dissipation and forced cooling of hub motors need to be paid attention to.
    • The wheels are easy to collect water and dirt, which will cause corrosion and destruction of the in-wheel motor, and affect the reliability of the life.
    • The fluctuation of the operating torque of the wheel hub motor may cause vibration and noise of the automobile tire, suspension and steering system, as well as other vehicle sound and vibration problems.
